Informationen
CV356-10X

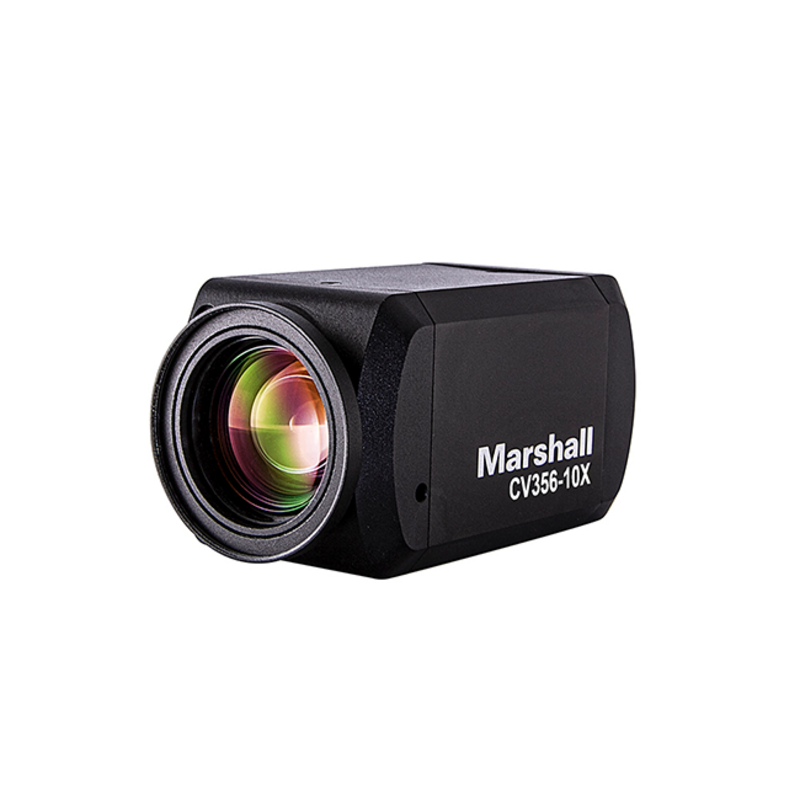

The Marshall CV356-10X is a versatile camera featuring a 10x optical zoom (with an additional 12x digital zoom), making it suitable for a wide range of professional applications. It provides simultaneous 3G-SDI and HDMI outputs, delivering crisp Full HD images at resolutions up to 1920×1080 and frame rates up to 60 fps.
Designed for flexibility, the Marshall CV356-10X excels in sports broadcasting, live events, and houses of worship. The camera supports neutral close-up adapters and ND (Neutral Density) filters, expanding creative possibilities for close-up shots in diverse and challenging environments, including bright outdoor conditions.
Key Features
- 2.13 Megapixel 1/2.8″ Full HD sensor
- 10x optical zoom with 12x digital zoom
- Simultaneous 3G-SDI and HDMI outputs
- Up to 1920x1080p60 video output
- Audio input for embedding audio
- VISCA over RS485 control
- Breakout cable with joystick for OSD menu access
- 12VDC power supply included
- Easy firmware upgrades in the field
- Standard 1/4″-20 mount for installation
Unmatched Versatility

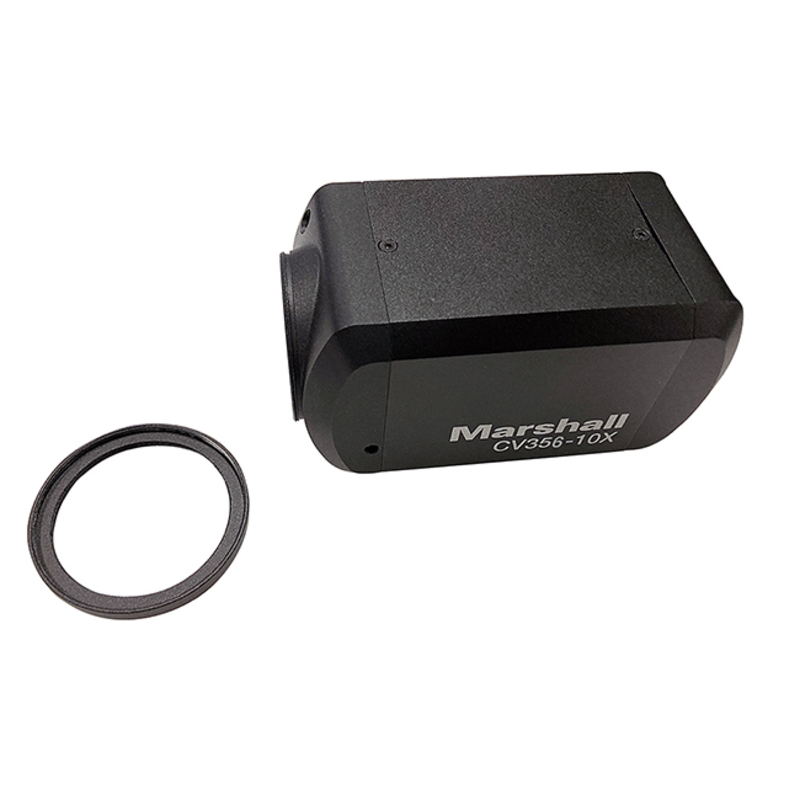

Featuring simultaneous 3G-SDI and HDMI outputs, remotely adjustable optical zoom, and stereo audio embedding capability. The CV356-10X includes a threaded ring adapter supporting 49mm diopter lenses, enabling crystal-clear close-up Full HD images with excellent low-light performance and minimal noise.
Durable Build Construction

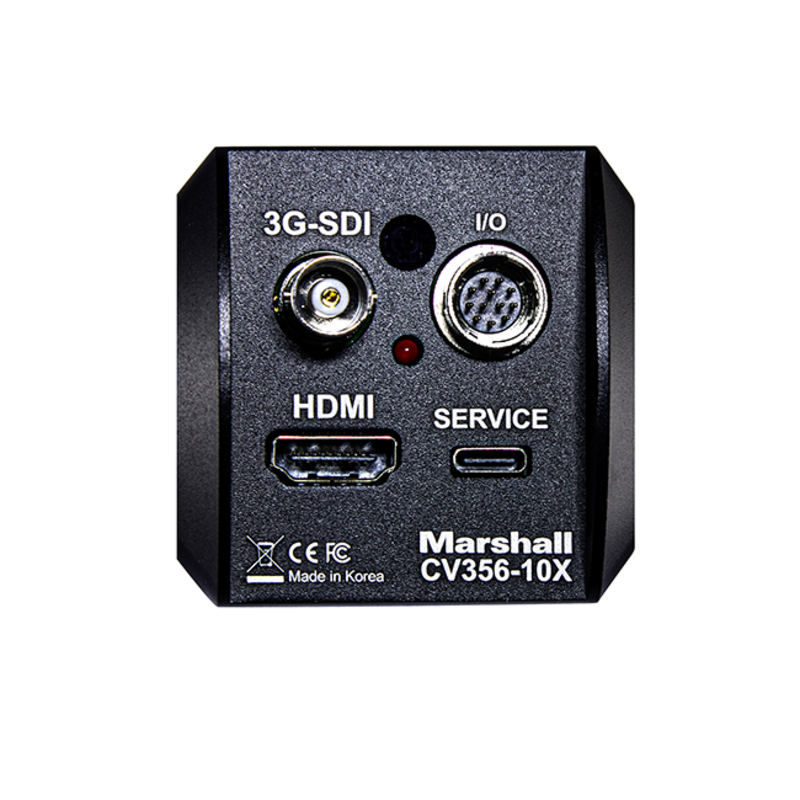

Constructed with a durable aluminum alloy body, full-sized 3G-SDI and HDMI connections, locking I/O cable carrying RS485/audio/power, and side impact protection panels to secure cable connections.
Universal Use Cases
Supports a wide range of HD formats including 1920x1080i, 1920x1080p, and 1280x720p. Frame rates include 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98 fps, making it suitable for global workflows.
Broadcast Performance
Marshall cameras combine reliability, durability, flexibility, and affordability. Remote adjustment of iris, white balance, exposure, and pedestal allows precise control, while advanced auto settings adapt to changing environmental conditions for consistent performance.
| CV356-10X Specifications | ||
| Sensor | Image Sensor | 1/2.8″ Progressive CMOS (Approx. 2.1 Megapixels) |
| Effective Pixel | 1920(H) x 1080(V) | |
| Pixel Size | 2.9(μm) x 2.9(μm) | |
| Min. Illumination | 0.1Lux (Day), 0.01Lux (Night), 0.001Lux(DSS on) | |
| Optics | Lens | 10x Optical Zoom, f=4.7~47 mm, F1.6 ~ F3.0 |
| Zoom | 10x optical zoom / 12x digital zoom | |
| Angle of View(H) | 57.7 degrees (wide end), 6.4 degrees (tele end) | |
| Min. working distance | 100 mm (wide), 900 mm (tele) | |
| Functions | Focus | Auto/ Manual |
| Exposure | Auto / Shutter Priority/ Iris Priority/ AGC Priority/ Manual/ Bright | |
| White Balance | AWB(3,000°K~8,000°K) / ATW(1,900°K~11,000°K) / INDOOR / OUTDOOR / ONE PUSH / Manual | |
| Day & Night System | DAY, NIGHT, AUTO | |
| Electronic Shutter | NTSC: 1/30~1/10000, PAL: 1/25~1/10000 | |
| Image Processing | Functions | Pedestal (Black Level), White Level, Privacy Mask, Image Mirror/Flip, Image Freeze, 2D/3D Noise Reduction, Edge Enhance, Defog, DIS (Digital Image stabilizer), Gamma Correct |
| Video Outputs | HDMI | 1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1920 x 1080i: 60, 59.94, 50 1280 x 720p: 60, 59.94, 50 |
| SDI | 1920 x 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 1920 x 1080i: 60, 59.94, 50 1280 x 720p: 60, 59.94, 50 |
|
| Audio | Input | 3.5mm TRS Stereo Audio Jack over I/O Cable (Mic and Line) |
| Sample Rate | 16/24/32 Bits | |
| Control Interface | RS485 | SONY-VISCA protocol, PELCO-P/D |
| General | Operation Temperature | 0°C ~ 50°C |
| Power Input | 12VDC (7V to 15VDC) | |
| Power Consumption | 12v power supply, can operate 12V+/-10% with a 6 watt draw | |
| Weight | 0.80 lbs (camera only) | |
| Dimensions | 104.55(D) x 56 (W) x 56 (H) mm | |
What's in the box?
- 1x Marshall CV355-10X Camera Body
- 1x IR Remote Control
- 1x Power Supply Unit (PSU)
