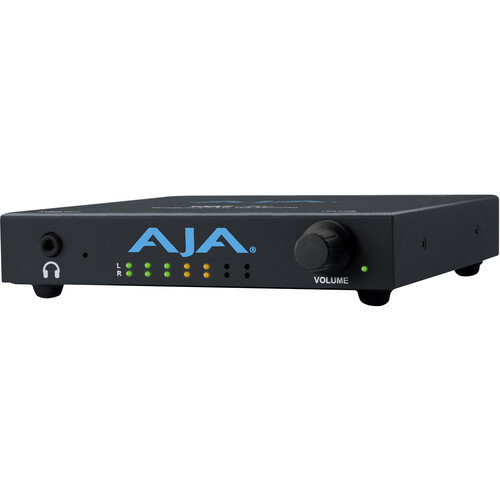

AJA T-Tap Pro Thunderbolt 3 HDMI 2.0 and 12G-SDI Output

Informationen

T-TAP Pro is the newest generation of AJA's proven T-TAP, featuring the latest 12G-SDI and HDMI 2.0 connectivity for working with up to 4K or UltraHD 60p video over a single cable. This allows for easy output of deep color, high frame rate, SDR and HDR video to a wide range of pro and consumer monitors and devices, all at the highest 10- and 12-bit quality. T-TAP Pro is a compact, silent device that delivers next generation mobile monitoring capabilities to any supported Thunderbolt 3 enabled system.

Features

• 12G-SDI and HDMI 2.0 connectivity for working with 4K or UltraHD over a single cable up to 60p
• SDI output supports 12G-SDI, 6G-SDI, 3G-SDI, 1.5G-SDI and 270Mbit
• 4K/UltraHD/2K/HD/SD Output/Monitoring up to 50/60p

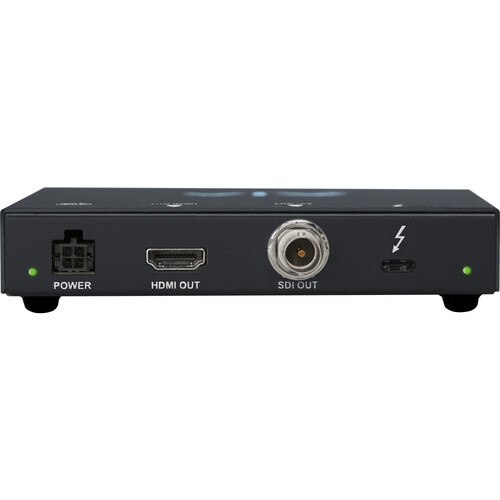

• 1x 12G-SDI BNC with 16-channel embedded audio
• 1x HDMI 2.0 with 8-channel embedded audio
• 1x Thunderbolt 3 connector
• Compact, silent, mobile form-factor with Front-panel Audio Levels Reference Display
• RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
• 4K Closed Caption Support
• VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
• PQ, HLG and HDR10 Support
• HDR Metadata Auto Playback Detection
• Headphone jack and quick access audio level control for mobile environment
• Thunderbolt, Power and Bitfile Connection Status Indicators
• Power Supply Included
• 3 Year Warranty
