Sonifex AVN-AIO4 / Dante to 4 Mono Channel Analogue Inputs & Outputs

Informationen

The AVN-AIO4 audio converter and interface converts up to four analogue inputs and four analogue outputs to and from the Dante Audio-over-IP networking standard. This cost effective 1U rack-mount unit offers an easy solution for AV professionals and system integrators. It is simple to configure and operate, with all set-up done via the standard Dante Controller software and power via POE (Power Over Ethernet).

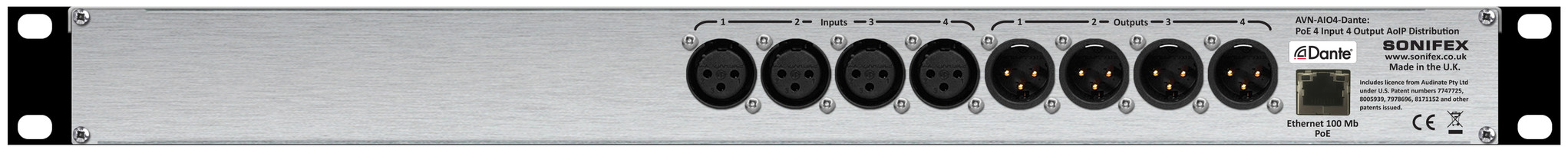

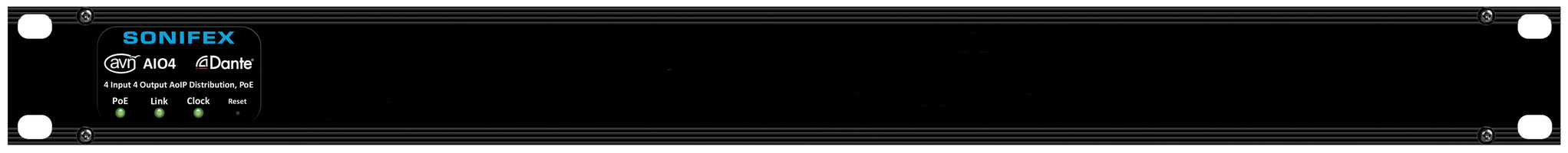

All analogue inputs and outputs are on high-quality Neutrik XLR connectors and there are front panel status/confidence LEDs for PoE, Link, and Clock.

• 4 x balanced analogue inputs on XLR.
• 4 x balanced analogue outputs on XLR.
• 1 x RJ45 Dante connector (100Mb/s Ethernet Port).
• POE, Link, and Clock LED status indicators.
• Configuration using Dante Controller.
• AES67 operation & Dante Domain Manager compliant.
• Powered by PoE.
• 1U 19"½ rack-mount form factor.
