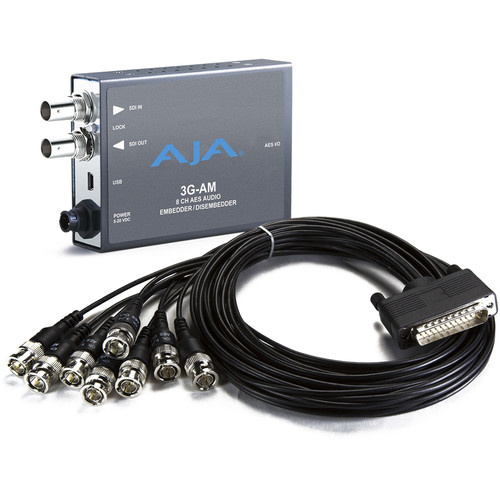

AJA 3G-AM-BNC 3G-SDI 8-Channel AES Embedder/Disembedder, BNC Breakout Cable

Informationen

The 3G-AM is an 8-channel AES audio embedder/disembedder with support for 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing 4 AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 3G-SDI input audio or to embed input AES audio from the breakout cable.

AES inputs are sample rate converted to a 48 KHz rate synchronous to the video input. The 3G-AM automatically detects and configures to the input video standard.

Features:

• 3G-SDI embedder/disembedder
• 8-channel AES I/O
• Supplied breakout cables for balanced AES - XLR connectors
• USB connectivity via AJA Mini-Config software
• Dipswitch configuration
• +5-20VDC Power

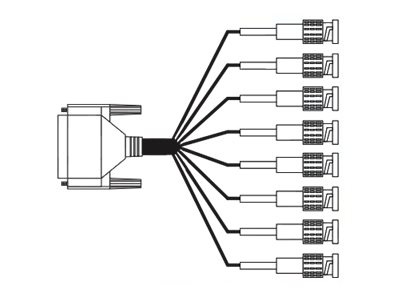

Choice of Supplied Breakout Cable

Order 3GAM with either a XLR or BNC breakout cable.

Specify 3G-AM-XLR for XLR connectivity or 3G-AM-BNC if you prefer BNC connectors for AES audio needs.
