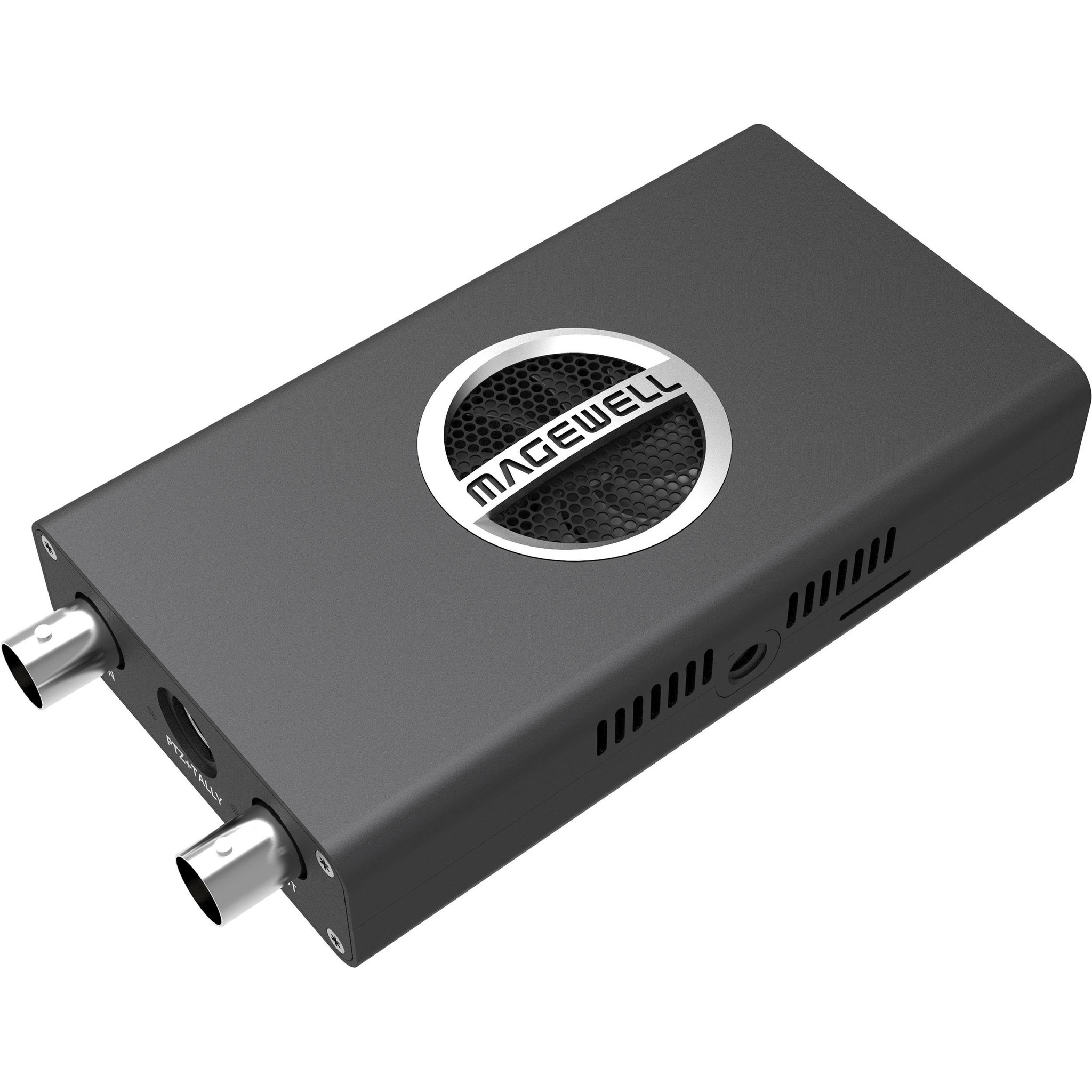

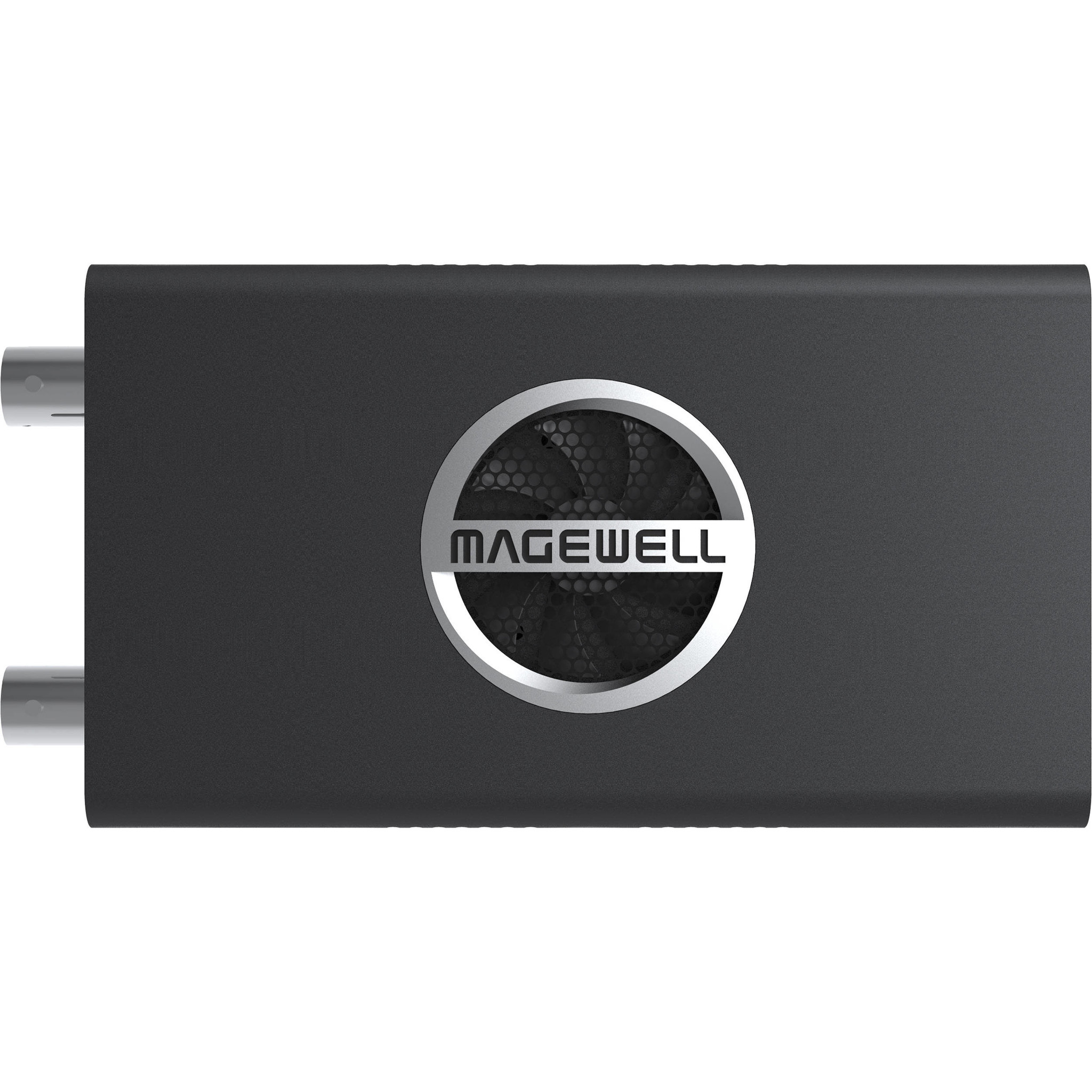

Magewell Pro Convert NDI Encoder SDI Plus

Supported Web Browser

• Microsoft Internet Explorer 11
• Microsoft Edge
• Mozilla Firefox version 61 and above
• Google Chrome version 49 and above
• Apple Safari 11.1 and above
• Opera 55.0.2994.44 and above

Supported Software

• OBS
• XSplit
• vMix
• VidBlasterX
• Wirecast
• streamstar SW
• mimoLive
• Any other NewTek NDI-enabled encoding or streaming software

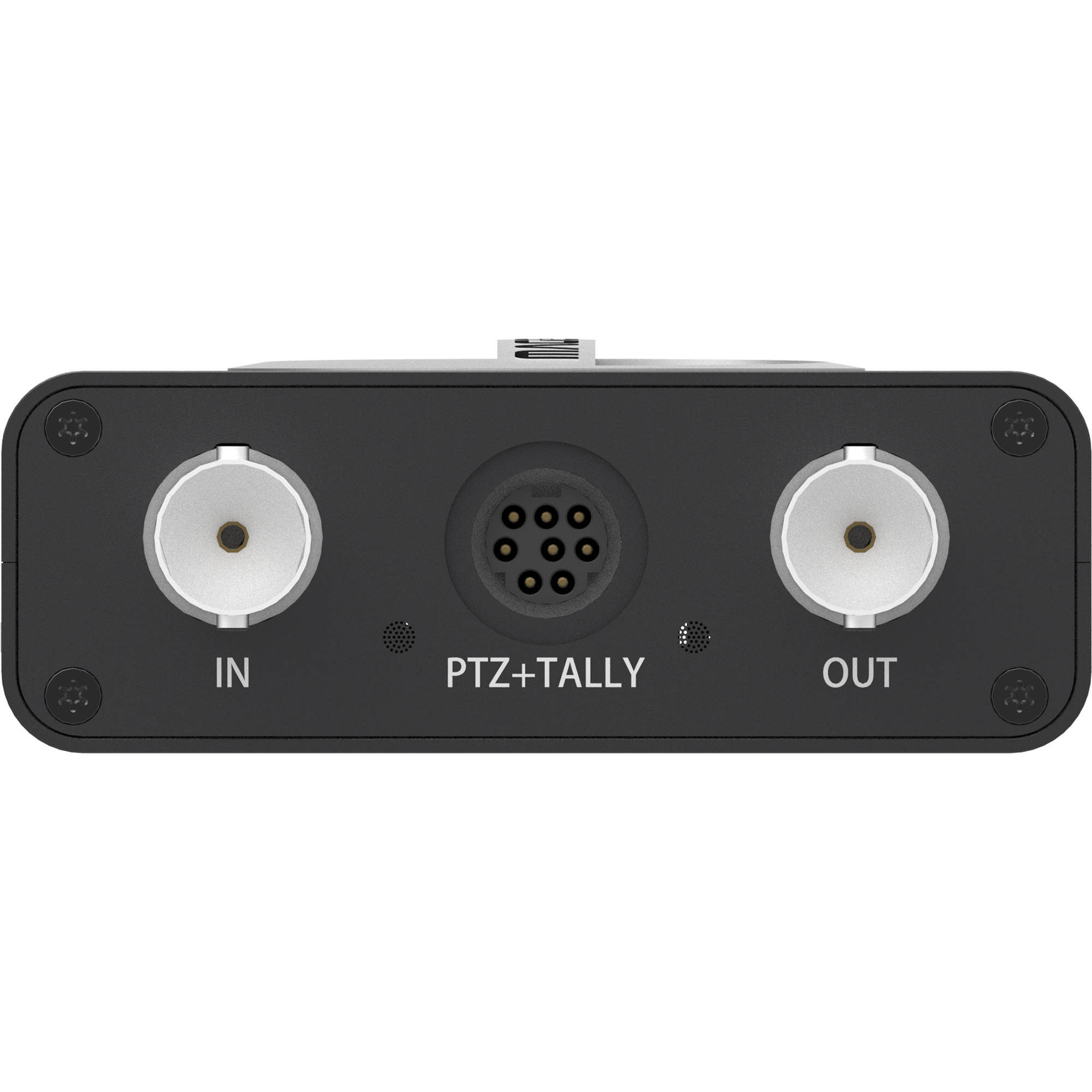

Input Interfaces

• BNC
• SD/HD/3G SDI

Loop-through Interface

• BNC
• SD/HD/3G SDI

Storage Interface

• SD Card (functions to be developed)

PTZ + TALLY Control

• Mini-DIN - 8 jack

Screw Mounting Hole

• ¼ - 20 mounting hole

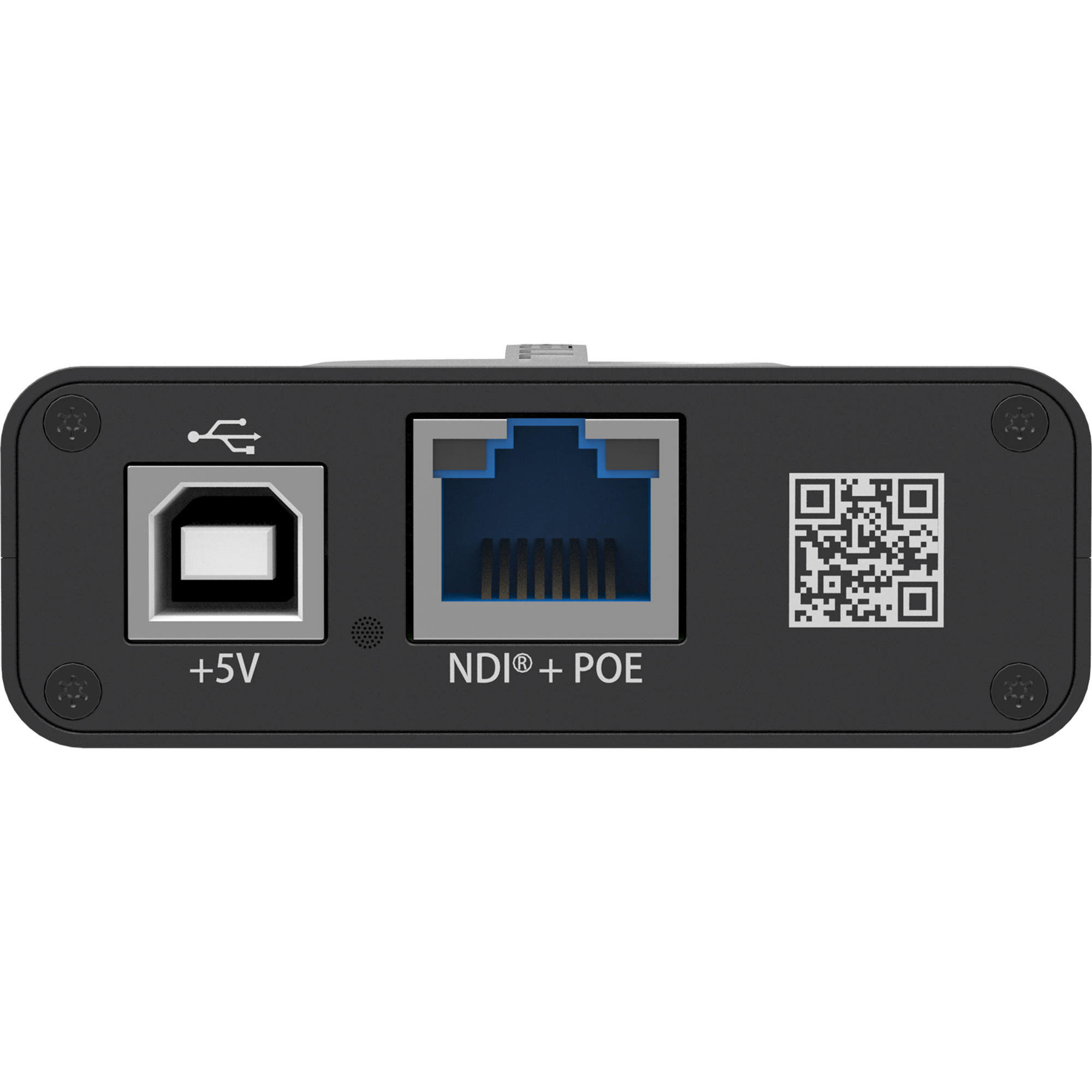

Network Interfaces

• 10/100/1000Mbps Ethernet
• IEEE 802.3af PoE

USB Interface

• USB2.0 Type B
• 5V/2.1A power supply
• USB RNDIS/ECM

Input feature

• Support for up to 2048x1080 60fps input resolution

SDI Specific Features

• Integrated cable equalizer extending the cable length as follows:
• up to 330m for SD-SDI signals
• up to 300m for HD-SDI signals
• up to 200m for 3G-SDI signals
• Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS (SMPTE 2081) standards
• Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
• Support for 10/12-bit color depth
• Support for extraction of SMPTE 352 payload identifier
• Support for up to 16 (mono) audio channels
• Support for extraction of audio formation information & channel status data
• Limited support of 3Gb-DS: only the first stream can be captured
• Limited support for capture of the first link of dual link interfaces:
• YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
• YCbCr 4:4:4 10-bit: captured as 4:2:2
• RGB 4:4:4: R/B sub-sampled

NDI Output Format

• Support for 4:2:2 8-bit output
• Support for up to 2048x1080 60fps output resolution
• Support for NDI 4.1

Video Processing Features

• Support for capture resolutions up to 2048x1080
• Video brightness, contrast, saturation, hue adjustment
• Video de-interlacing
• Top field only
• Bottom field only
• Video aspect ratio conversion
• Auto or manual selection of output aspect ratio
• Video color format conversion
• Auto or manual selection of input color format & quantization range
• Auto or manual selection of output color format, quantization range & saturation range
• Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
• Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
• Support for Limited or Full quantization range
• Support for Limited, Full & "Extended gamut" saturation range
• Video frame rate conversion
• Video mirror flip

NDI Source Name

• Support for setting the device name shown in the system using Web UI. By default, the device name is "Pro Convert".
• Support for setting the source name shown in the system using Web UI. By default, the source name is "board-index + serial number".
• Support for setting board-index, from 0 to F, through the on-board rotary switch

Firmware Upgrade

• Support for manual update using Web UI

LED Indicator

• Status LEDs indicate the working state of the device:
• Power supply: on/off
• Tally: preview/program
• Input signal: locked/unlocked
• Loopthrough signal: loopthrough connected and signal detected/undetected

Form Factor

• 117.5mm (L) x 66.7mm (W) x 23.4mm (H)

Accessories

• USB 2.0 A to B Cable
• 5V/2.1A power adaptor
• Mini-DIN - 8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN - 8 (TALLY)
• Tally lights
• L-bracket
• LED matrix panel (optional)

Power Consumption

• 5V max current: ~1.5A
• Max power consumption: ~6W

Working Environment

• Operating temperature: 0 to 45 deg C
• Storage temperature: - 20 to 70 deg C
• Relative Humidity: 5% to 90% non-condensing
