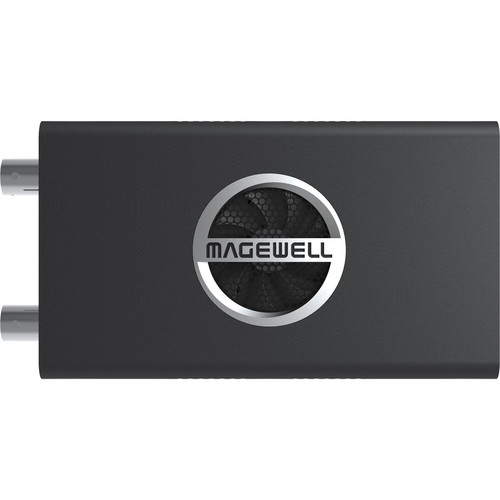

Magewell Pro Convert NDI Encoder 12G SDI 4K Plus

1.160,39 Incl. btw€959,00 Excl. btw Op voorraad
Registreer je in onze webshop. We controleren je gegevens en geven je toegang tot gepersonaliseerde kortingen. Crosspoint geeft je graag persoonlijk advies gebaseerd op meer dan 25 jaar ervaring. Bekijk ook andere ndi converters in onze webshop. Lees meer
  • ECO friendly webshop
  • Persoonlijk advies
  • 25 jaar ervaring
  • Meer dan 4.000 producten
  • Secure payment
  • Registreer en ontdek je voordelen

Specificaties

Merk:
Magewell
Beschikbaarheid:
Op voorraad
Levertijd:
Op Voorraad (1 - 2 werkdagen)

Informatie

Converts one channel of 12G-SDI video up to 4Kp60 into Full NDI.

  • Connects existing source equipment into NDI-enabled, IP-based media networks
  • Supports inputs up to 4K at 60fps with 16 channels of embedded audio
  • Plug-and-play ease of use with automatic input format detection and DHCP network configuration



SDI Input

  • Max Video input: 4096x2160 60fps. Supported resolutions include:
    • 4096x2160p, 3840x2160p, 2048x1080p, 2048x1080i, 1920x1080p, 1920x1080i all at 23.98/24/25/29.97/30/47.95/48/50/59.94/60fps
    • 1280x720p at 50/59.94/60fps
    • 720x576 at 25p/50i (PAL SD)
    • 720x480 at 29.97p/59.94i (NTSC SD)
  • Support for RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Max Audio inputs: 16 embedded channels

NDI Output

  • Max output: 4096x2160 60fps 4:2:2 8-bit
  • Output frame rate same as the original, 1/2, 1/3 or 1/4 input frame rate
  • Output resolution at the resolution of input, typical formats or any custom resolution. Typical output:
    • 4096x2160p, 3840x2160p, 2048x1080p, 2048x1080i, 1920x1080p, 1920x1080i all at 23.98/24/25/29.97/30/47.95/48/50/59.94/60fps
  • NDI 4.1

SDI Processing Features

  • Input/loop-through interfaces: SD/HD/3G/6G/12G SDI
  • Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081)/12G (ST 2082) SDI standards
  • Receive SDI transmitted up to the following distances:

Signal

Distance

HD-SDI

280m

919ft

3G-SDI

180m

591ft

6G-SDI

80m

262ft

12G-SDI

30m

98ft

Web GUI Management

  • Provide comprehensive information regarding the device and input signals in real-time
  • Allow to configure how an input is processed and encoded, including deinterlacing, up/down scaling, audio channel mapping, as well as the network connection.
  • Support USB RNDIS/ECM
  • Support IE/Edge/Firefox/Chrome/Safari/Opera web browser
  • Support with HTTP APIs

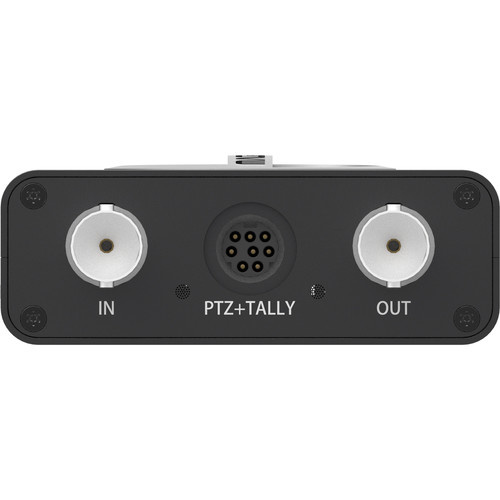

PTZ & Tally Control

  • Control PTZ cameras that use VISCA UDP, VISCA, PELCO-D or PELCO-P protocols
  • Program and preview tally
  • A Mini-DIN 8 breakout cable is provided for PTZ control and tally connection

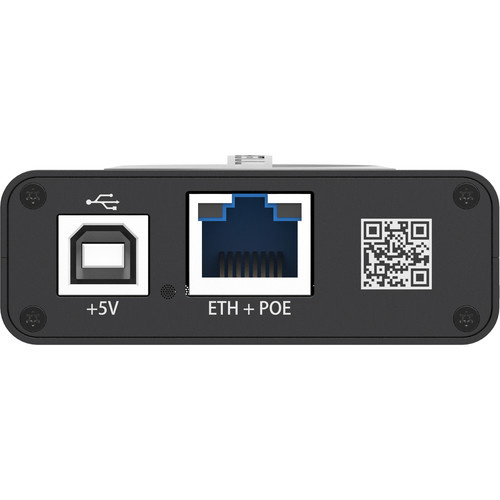

Network Interfaces

  • 10/100/1000Mbps Ethernet
  • IEEE 802.3af PoE

USB Interface

  • USB2.0 Type B
  • 5V/2.1A power supply

Supported Products

  • NDI Studio Monitor
  • OBS
  • vMix
  • Any other NDI-enabled product

LED Indicators

  • Status LEDs indicate the working state of the device
    • Power supply: on/off
    • Tally: preview/program
    • Input port: input signal locked/unlocked
    • Output port: loopthrough signal on/off

Form Factor

  • 117.5mm (L) x 66.7mm (W) x 23.4mm (H)

Accessories

  • USB 2.0 A to B cable
  • 5V/2.1A power adaptor
  • L-bracket
  • Mini-DIN 8 breakout cable
  • Tally light

Screw Mounting Hole

  • ¼–20 mounting hole

Power Consumption

  • 5V max current: ~1.65A
  • Max power consumption: ~8.5W

Working Environment

  • Operating temperature: 0 to 45 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative humidity: 5% to 90% non-condensing
