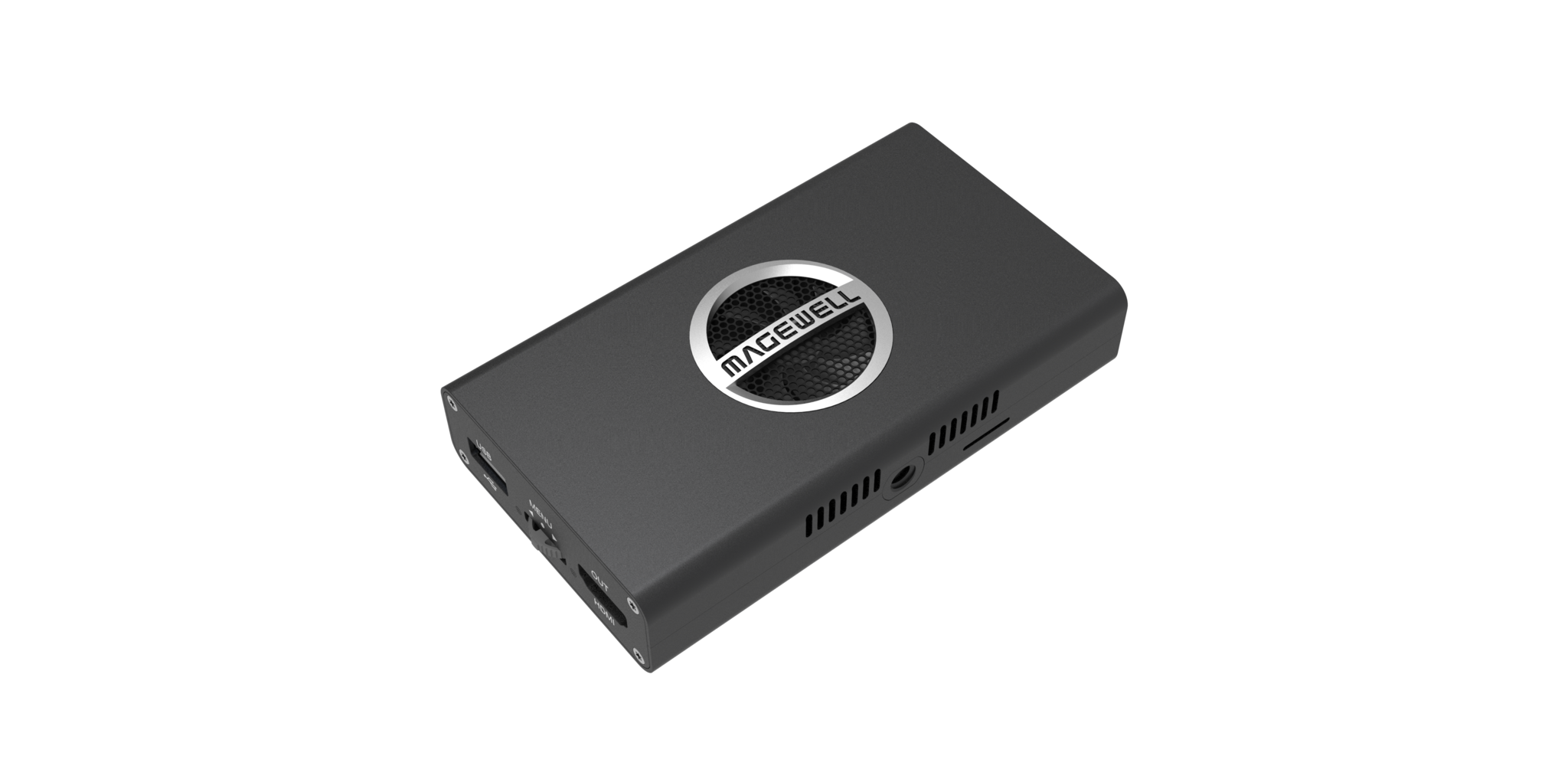

Magewell Pro Convert NDI Decoder HDMI 4K

Informatie

• Connects baseband presentation or distribution equipment into IP-based media networks
• Decodes Full NDI or NDI|HX into 4K HDMI at a super-low latency
• Automatically optimizes output based on EDID characteristics of connected display

Supported Web Browser (tested)

• Microsoft Internet Explorer 11
• Microsoft Edge
• Mozilla Firefox version 61 and above
• Google Chrome version 49 and above
• Apple Safari 11.1 and above
• Opera 55.0.2994.44 and above

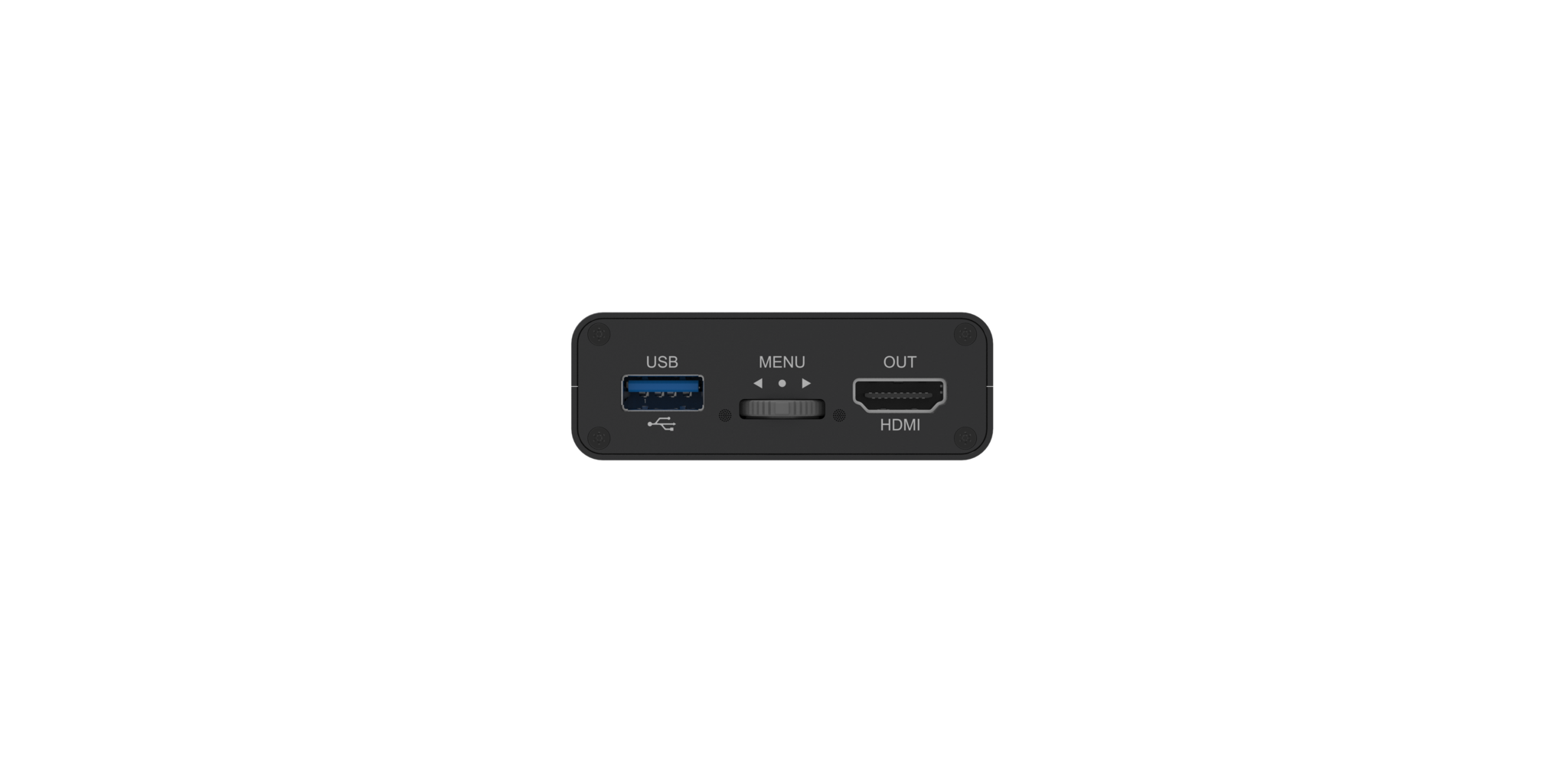

Output Interfaces

• HDMI
• HDMI 1.4
• HDMI 2.0

Storage Interface

• SD Card (functions to be developed)

Screw Mounting Hole

• ¼–20 mounting hole

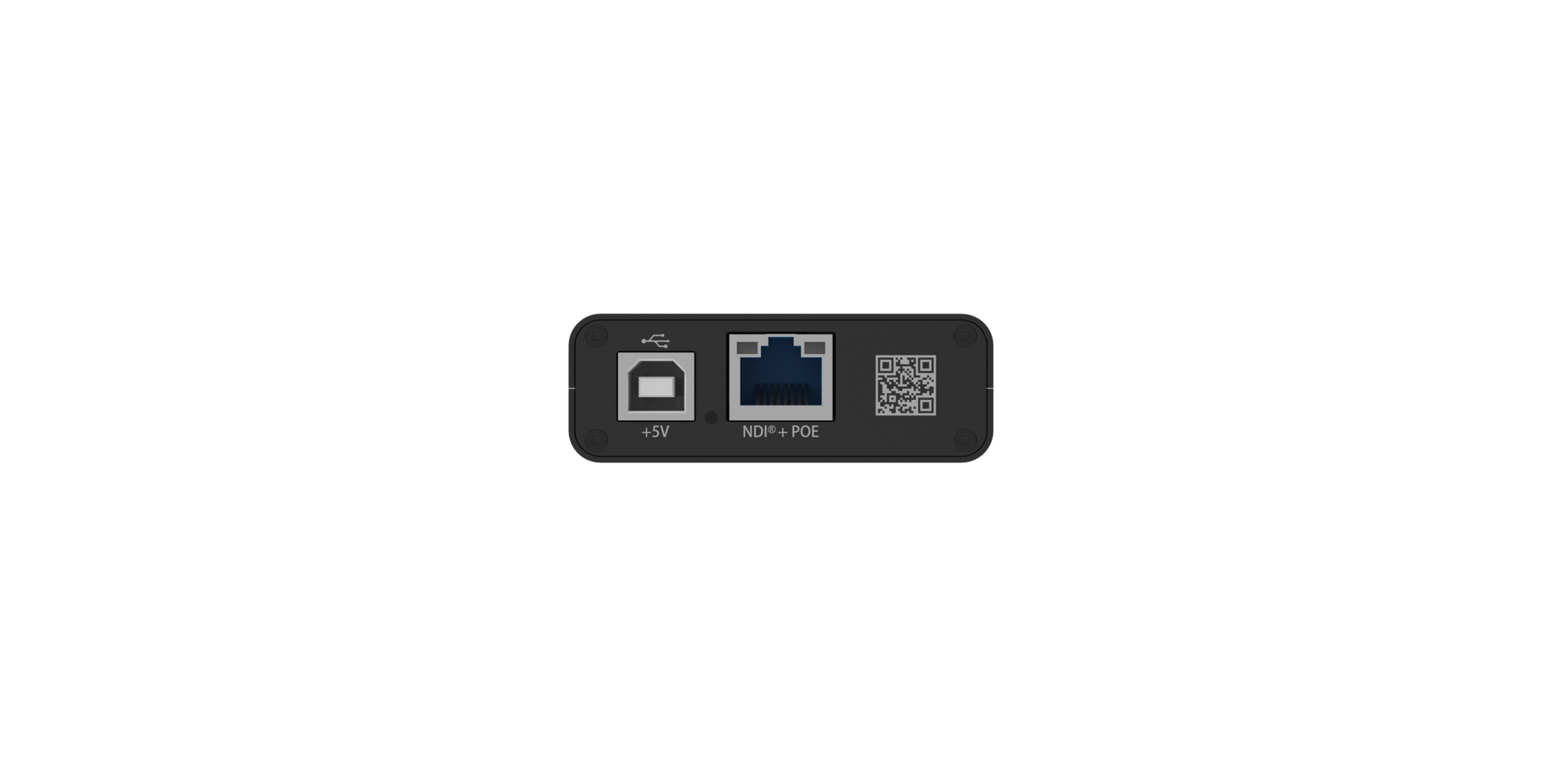

Network Interfaces

• 10/100/1000Mbps Ethernet
• IEEE 802.3af PoE

USB Interface

• USB2.0 Type B
• 5V/2.1A power supply
• USB RNDIS/ECM
• USB3.0 Type A
• Support for connecting peripherals (keyboard and/or mouse) to customize the video and audio settings

Control Buttons

• MENU: press to display the menu or select current parameter, or toggle the switch left and right to cycle through the options

HDMI Output Features

• Support for up to 4:4:4 8-bit 4096x2160 60fps output HDMI resolutions
• Support for 96KHz 16bits 8-channel audio streams
• Support for delivering videos at the preferred video format according to the EDID of the connected monitor

Stream Decoding Features

• Support for decoding full NDI^® and NDI HX in NDI 4.x
• Support for decoding streams of NDI, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP
• Support for decoding videos in H.264 and H.265 format
• Support for decoding AAC/MP3 audios
• Support for decoding up to 4K 60fps signal
• Support for modifying configurations using the Web UI or the Options menu
• Setting Video OSD composition, including
• Source name & resolution
• Tally indicators
• Audio meter
• Audio meter scale
• Center cross
• Safe area
• Video scaling, frame rate and aspect ratio conversion
• Video color format conversion
• Auto or manual selection of input color format
• Support for YUV BT.601, YUV BT.709 color formats
• Video vertical and mirror flip
• Remote controlling the PTZ device connected to the video source
• Setting audio gain, sample rate and channels
• Support for decoding sources in different network segment but can be able to pinged
• Support for decoding alpha channel, options are
• Alpha only
• Alpha blend with white
• Alpha blend with black
• Alpha blend with checkboard

Device Name

• Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
• Support for setting board-index, from 0 to F, through the on-board rotary switch

Firmware Upgrade

• Support for manual update using Web UI

LED Indicator

• Power LED status indicator
• On: power connected
• Off: power unconnected
• Decode LED status indicator
• On: decoding in progress
• Blinks: decoding error
• Off: source unselected

Form Factor

• 117.5mm (L) x 66.7mm (W) x 23.4mm (H)

Accessories

• USB 2.0 A to B cable
• 5V/2.1A power adaptor
• L-bracket

Power Consumption

• 5V max current: ~1.6A
• Max power consumption: ~7.2W

Working Environment

• Operating temperature: 0 to 45 deg C
• Storage temperature: –20 to 70 deg C
• Relative Humidity: 5% to 90% non-condensing
