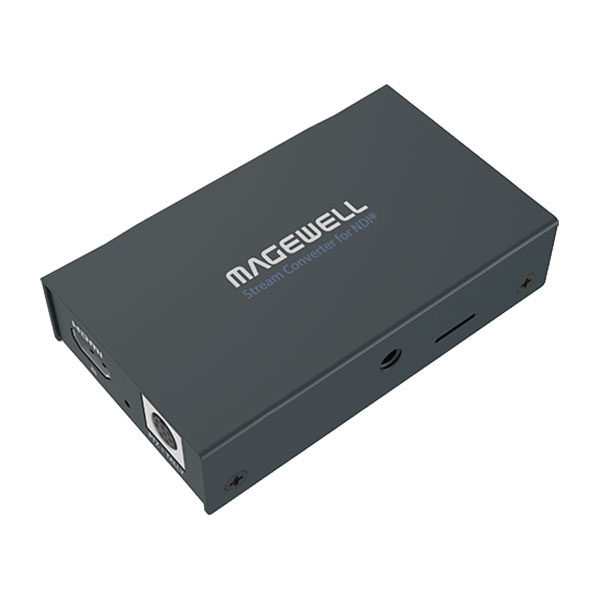

Magewell Pro Convert NDI Encoder HDMI TX

Informatie

Converts an HD HDMI input signal into Full NDI.

• Supports up to 2048x1200 60fps input signals
• Connects existing source equipment into NDI-enabled, IP-based media networks
• Plug-and-play ease of use with automatic input format detection and DHCP network configuration

Supported Web Browser (tested)

• Microsoft Internet Explorer 11
• Microsoft Edge
• Mozilla Firefox version 61 and above
• Google Chrome version 49 and above
• Apple Safari 11.1 and above
• Opera 55.0.2994.44 and above

Supported Software (tested)

• OBS
• XSplit
• vMix
• VidBlasterX
• Wirecast
• streamstar SW
• mimoLive
• Any other NewTek NDI-enabled encoding or streaming software

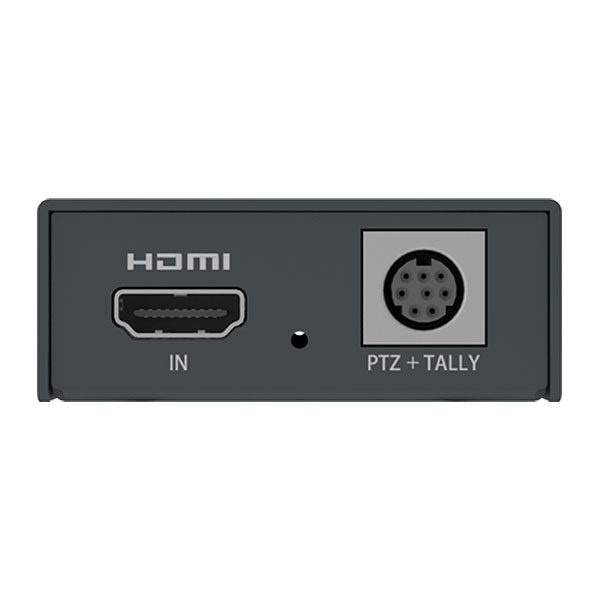

Input Interface

• HDMI
• DVI-D 1.0
• HDMI 1.4

Storage Interface

• SD Card (functions to be developed)

PTZ + TALLY Control

• Mini-DIN–8 jack

Mounting Hole

• ¼–20 mounting hole

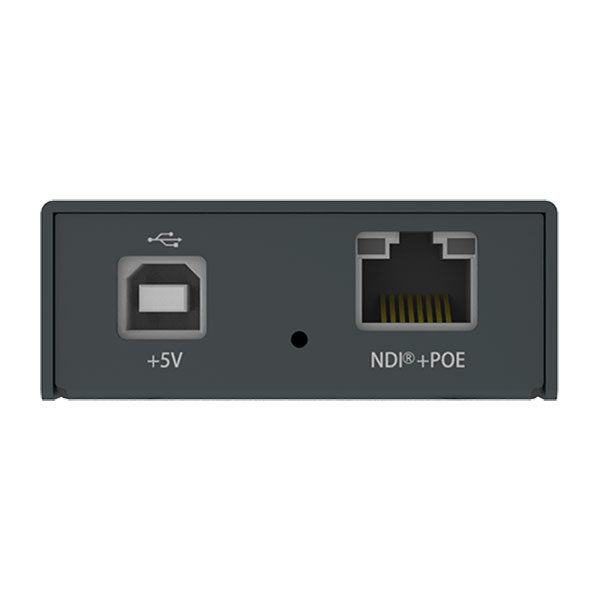

Network Interface

• 10/100/1000Mbps Ethernet
• IEEE 802.3af PoE

USB Interface

• USB2.0 Type B
• 5V/2.1A power supply
• USB RNDIS/ECM

Input feature

• Support input video resolutions at up to 2048x1200

HDMI Specific Features

• 165MHz HDMI receiver
• Adaptive HDMI equalizer support for cables lengths up to 30M
• Support for customized EDID
• Support for extraction of AVI/Audio InfoFrames
• Full colorimetry support
• Support up to 2048x1200 4:4:4/4:2:2 60fps input signals
• Support 8 input and 2 output IEC60958 audio streams
• Support for extraction of audio formation information & channel status data
• Support for extraction of video timing information
• Support for extraction of 3D format information
• Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.

NDI Output Format

• Support for 4:2:2 8-bit output
• Support for up to 2048x1200 60fps
• Support for NDI 4.1

Video Processing Features

• Video processing pipelines with 160 Mpixels/s
• Video brightness, contrast, saturation, hue adjustment
• Video de-interlacing
• Top field only
• Bottom field only
• Video aspect ratio conversion
• Auto or manual selection of output aspect ratio
• Video color format conversion
• Auto or manual selection of input color format & quantization range
• Auto or manual selection of output color format, quantization range & saturation range
• Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
• Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
• Support for Limited or Full quantization range
• Support for Limited, Full & ‘Extended gamut’ saturation range
• Video frame rate conversion
• Video mirror flip

NDI Source Name

• Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
• Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
• Support for setting board-index, from 0 to F, through on-board rotary switch

Firmware Upgrade

• Support for manual update using Web UI

LED Indicator

• Status LEDs indicate:
• Power supply indicator: on/off
• Input signal indicator: locked/unlocked

Form Factor

• 100.9smm (L) x 60.2mm (W) x 23.3mm (H)

Accessories

• USB 2.0 A to B Cable
• 5V/2.1A power adaptor
• Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
• Tally lights
• L-bracket
• LED matrix panel (optional)

Power Consumption

• 5V max current: ~1.5A
• Max power consumption: ~6W

Working Environment

• Operating temperature: 0 to 45 deg C
• Storage temperature: –20 to 70 deg C
• Relative Humidity: 5% to 90% non-condensing
