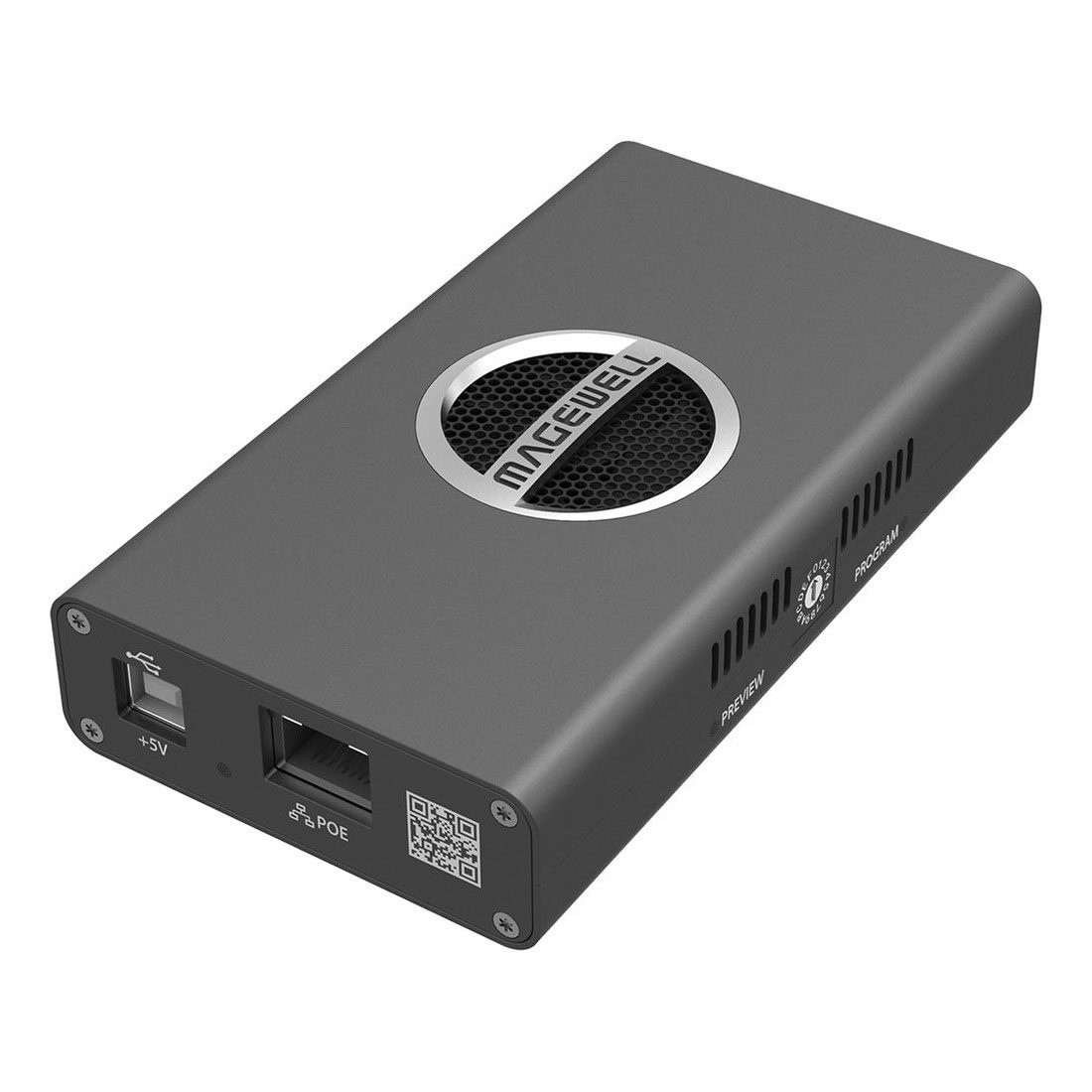

Magewell Pro Convert NDI Encoder HDMI Plus

640,09 Incl. btw€529,00 Excl. btw Niet op voorraad, check levertijd
Registreer je in onze webshop. We controleren je gegevens en geven je toegang tot gepersonaliseerde kortingen. Crosspoint geeft je graag persoonlijk advies gebaseerd op meer dan 25 jaar ervaring. Bekijk ook andere ndi converters in onze webshop. Lees meer
  • ECO friendly webshop
  • Persoonlijk advies
  • 25 jaar ervaring
  • Meer dan 4.000 producten
  • Secure payment
  • Registreer en ontdek je voordelen

Specificaties

Merk:
Magewell
Beschikbaarheid:
Niet op voorraad, check levertijd
Levertijd:
3 - 7 werkdagen

Informatie

Converts an HD HDMI input signal into Full NDI with loop-through.

  • Supports up to 4096x2160 60fps (4:2:0) or 30fps (4:4:4), down-converting them to HD NDI
  • Connects existing source equipment into NDI-enabled, IP-based media networks
  • Plug-and-play ease of use with automatic input format detection and DHCP network configuration



Supported Web Browser (tested)

  • Microsoft Internet Explorer 11
  • Microsoft Edge
  • Mozilla Firefox version 61 and above
  • Google Chrome version 49 and above
  • Apple Safari 11.1 and above
  • Opera 55.0.2994.44 and above

Supported Software (tested)

  • OBS
  • XSplit
  • vMix
  • VidBlasterX
  • Wirecast
  • streamstar SW
  • mimoLive
  • Any other NewTek NDI-enabled encoding or streaming software

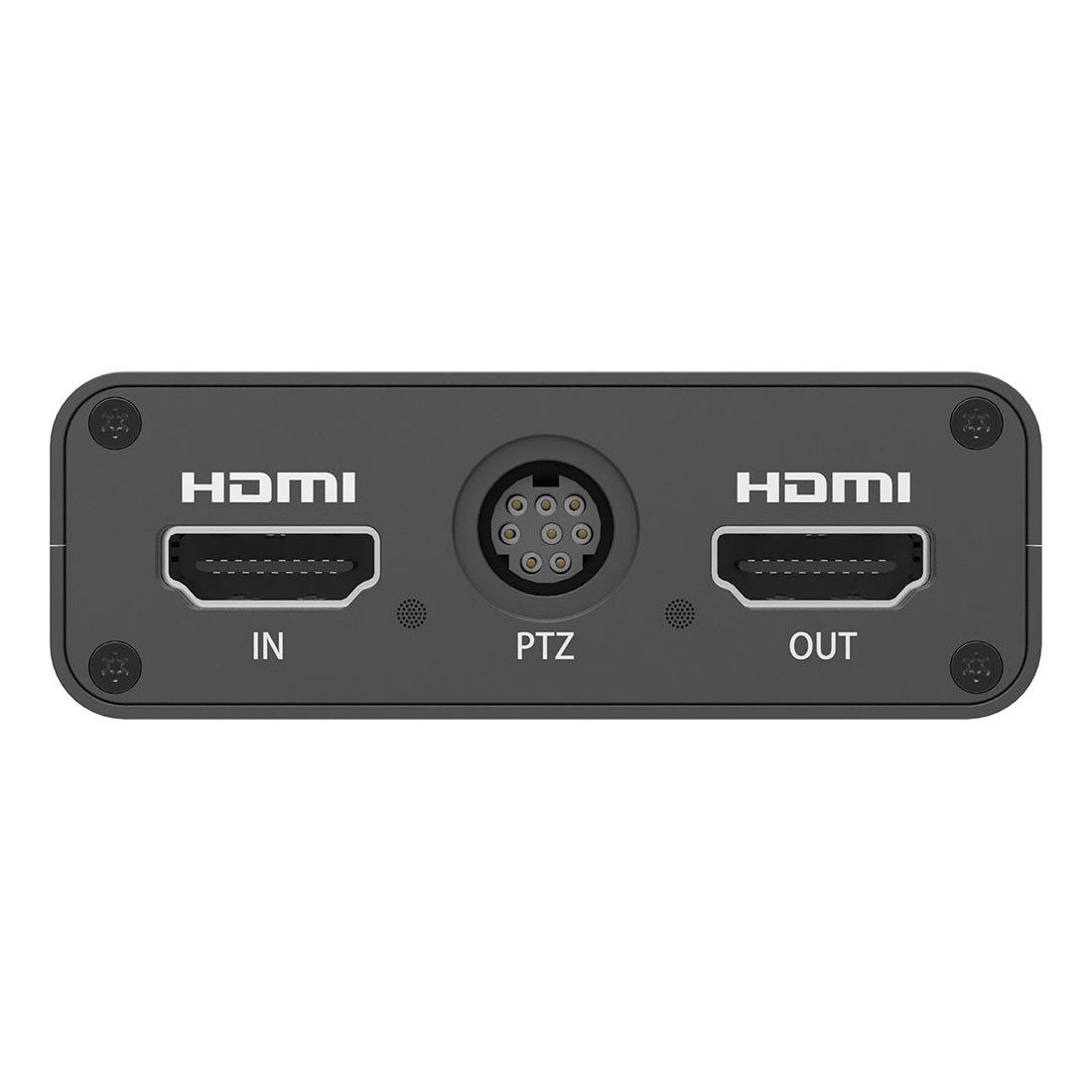

Input Interfaces

  • HDMI
    • DVI-D 1.0
    • HDMI 1.4

Loop-through Interface

  • HDMI
    • DVI-D 1.0
    • HDMI 1.4

Storage Interface

  • SD Card (functions to be developed)

PTZ + TALLY Control

  • Mini-DIN–8 jack

Screw Mounting Hole

  • ¼–20 mounting hole

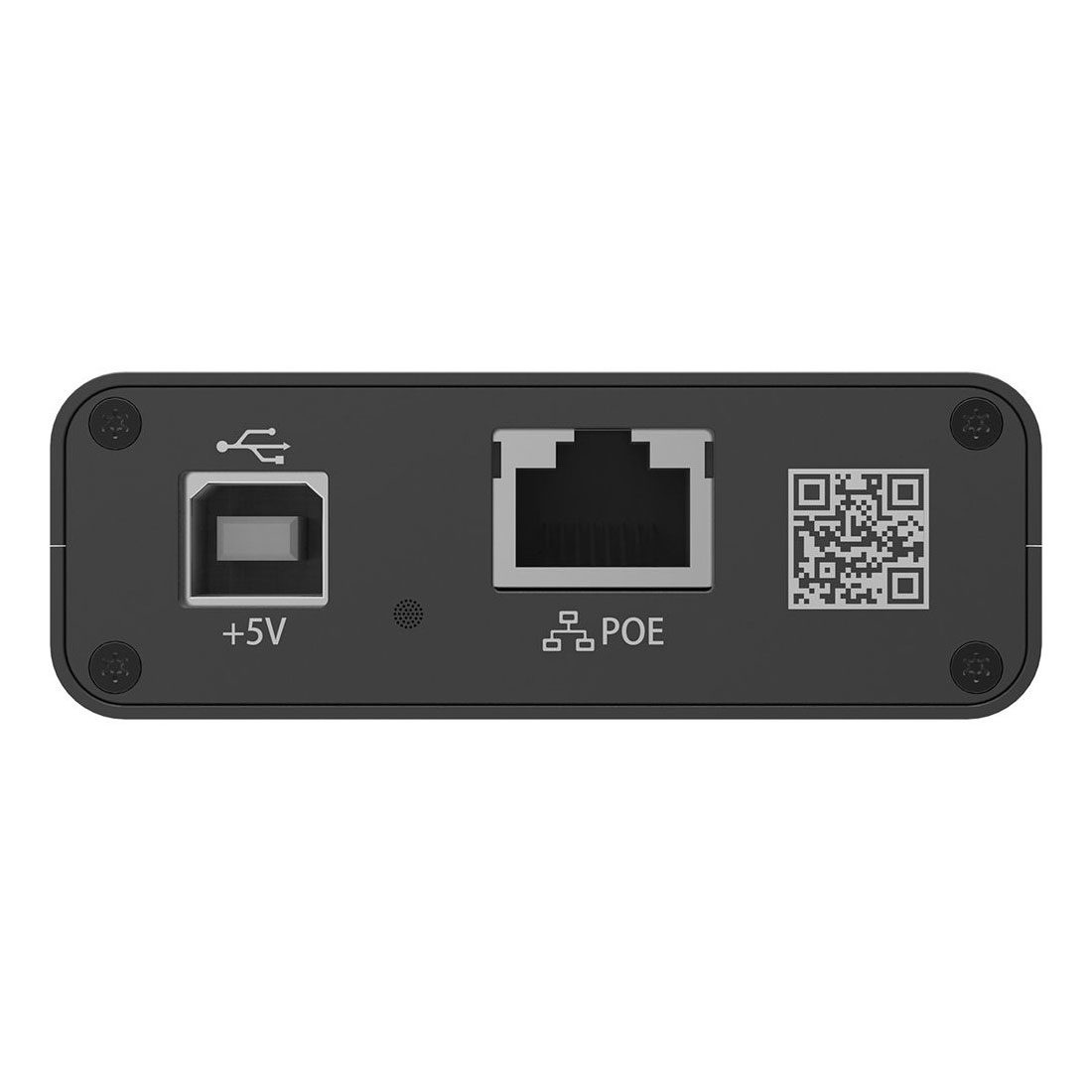

Network Interfaces

  • 10/100/1000Mbps Ethernet
  • IEEE 802.3af PoE

USB Interface

  • USB2.0 Type B
  • 5V/2.1A power supply
  • USB RNDIS/ECM

Input feature

  • Support for input video resolutions up to 4096x2160

HDMI Specific Features

  • 297MHz HDMI receiver
  • Adaptive HDMI equalizer
  • Support for customized EDID
  • Support for extraction of AVI/Audio InfoFrames
  • Full colorimetry support
  • Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input signals
  • Support for 8 channel IEC60958 audio streams
  • Support for extraction of audio formation information & channel status data
  • Support for extraction of video timing information
  • Support for extraction of 3D format information
  • Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.

NDI Output Format

  • Support for 4:2:2 8-bit output
  • Support for up to 2048x2160 120fps
  • Support for NDI 4.1

Video Processing Features

  • Video processing pipelines with 160 Mpixels/s
  • Video brightness, contrast, saturation, hue adjustment
  • Video de-interlacing
    • Top field only
    • Bottom field only
  • Video aspect ratio conversion
    • Auto or manual selection of output aspect ratio
  • Video color format conversion
    • Auto or manual selection of input color format & quantization range
    • Auto or manual selection of output color format, quantization range & saturation range
    • Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
    • Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
    • Support for Limited or Full quantization range
    • Support for Limited, Full & ‘Extended gamut’ saturation range
  • Video frame rate conversion
  • Video mirror flip

NDI Source Name

  • Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
  • Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
  • Support for setting board-index, from 0 to F, through on-board rotary switch

Firmware Upgrade

  • Support for manual update using Web UI

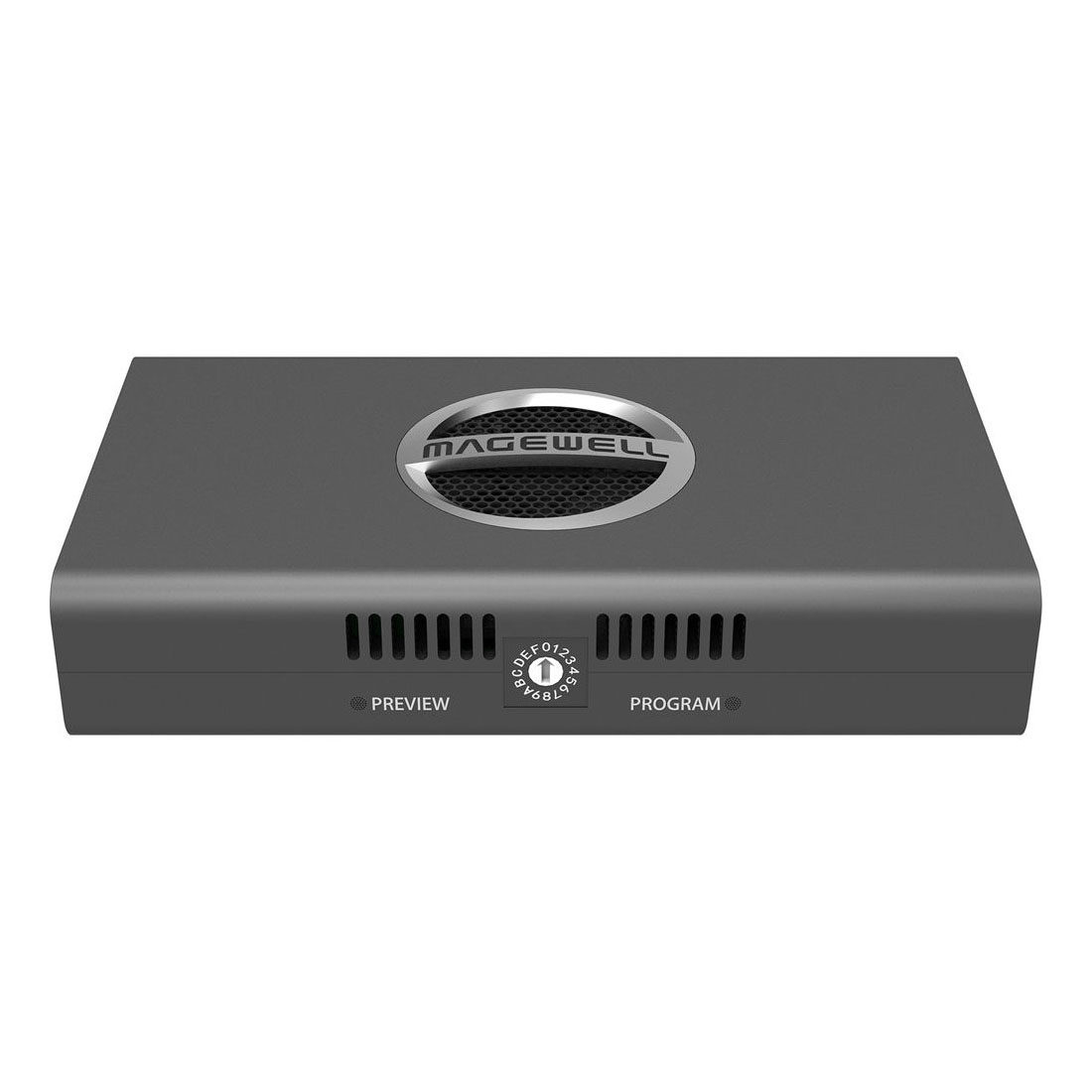

LED Indicator

  • Status LEDs indicate:
    • the state of power supply: on/off
    • Tally: preview/program
    • the state of input signal: locked/unlocked
    • the state of loopthrough signal: loopthrough connected and signal detected/undetected

Form Factor

  • 117.5mm (L) x 66.7mm (W) x 23.4mm (H)

Accessories

  • USB 2.0 A to B Cable
  • 5V/2.1A power adaptor
  • Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
  • L-bracket
  • LED matrix panel (optional)

Power Consumption

  • 5V max current: ~1.5A
  • Max power consumption: ~8W

Working Environment

  • Operating temperature: 0 to 45 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing
