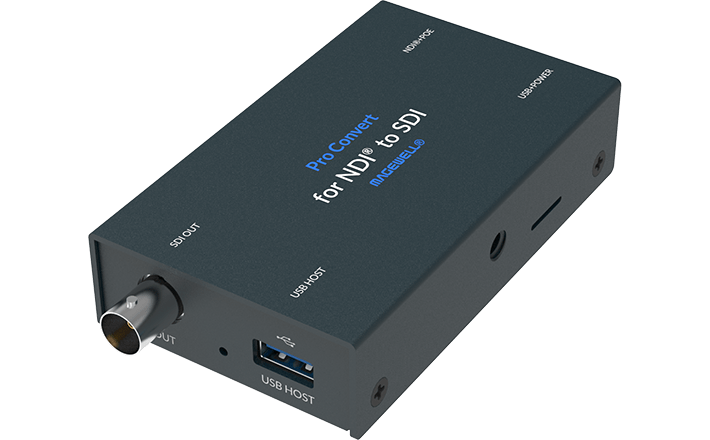

Magewell Pro Convert NDI Decoder SDI
€494,89 Incl. btw€409,00 Excl. btw
Niet op voorraad, check levertijd
Registreer je in onze webshop. We controleren je gegevens en geven je toegang tot gepersonaliseerde kortingen. Crosspoint geeft je graag persoonlijk advies gebaseerd op meer dan 25 jaar ervaring. Bekijk ook andere ndi converters in onze webshop. Lees meer
- ECO friendly webshop
- Persoonlijk advies
- 25 jaar ervaring
- Meer dan 4.000 producten
- Secure payment
- Registreer en ontdek je voordelen
Specificaties
Merk:
Magewell
Beschikbaarheid:
Niet op voorraad, check levertijd
Levertijd:
2 - 3 weken
Gerelateerde producten
Informatie
- Connects baseband presentation or distribution equipment into IP-based media networks
- Supports NDI technology including full-bandwidth NDI and high-efficiency NDI|HX mode
- Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP

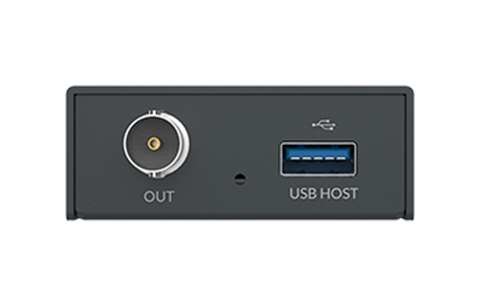

SDI Output
- BNC: SD/HD/3G SDI
- Max output: 1920x1080p60. Supported output formats are:
- 1920x1080p60/59.94/50/30/29.97/25/24/23.98
- 1920x1080i60/59.94/50
- 1280x720p60/59.94/50/30/29.97/25/24/23.98
- 720x576i50
- 720x480i59.94
- Support YUV BT.601, YUV BT.709 signals
- Support 48KHz 16-bit 8-channel audio output
Decoding Features
- Decoding 1080p60 streams of Full NDI, NDI|HX, NDI|HX2, RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP protocols
- Support NDI 4.5
- Support H.264/H.265 video decoders
- Support AAC/MP3 audio decoders
Web GUI Management
- Provide comprehensive information regarding the device and input signals in real-time
- Allow to configure how an input signal is processed and decoded, including:
- OSD setting, deinterlacing, resolution, frame rate, AR conversion
- audio gain, sample rate and audio channel mapping
- network connection
- Update firmware
- USB RNDIS/ECM
- IE/Edge/Firefox/Chrome/Safari/Opera web browsers
- Provide HTTP APIs
Supported Web Browsers
- Microsoft Internet Explorer 11
- Microsoft Edge
- Mozilla Firefox version 61 and above
- Google Chrome version 49 and above
- Apple Safari 11.1 and above
- Opera 55.0.2994.44 and above
On-board Control Buttons
- MENU: press to display the menu, or cycle through the options
- SELECT: press to display the menu, enter current option, or confirm the selection
- 16 Position Rotary DIP Switch: set board-index from 0 to F

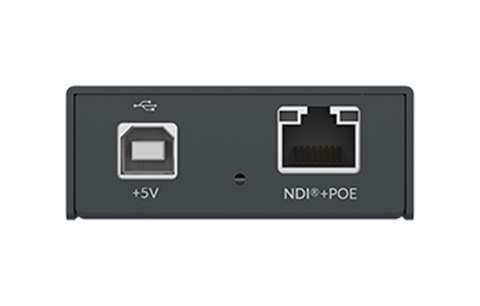

Network Interfaces
- 10/100/1000Mbps Ethernet
- IEEE 802.3af PoE
USB Interface
- USB2.0 Type B
- 5V/2.1A power supply
- USB RNDIS/ECM
- USB3.0 Type A
- connecting peripherals (keyboard and/or mouse) to set up device
LED Indicator
- Power LED status indicator
- On: power connected
- Off: power unconnected
- Decode LED status indicator
- On: decoding in progress
- Blinks: decoding error
- Off: source unselected
Form Factor
- 100.9mm (L) x 60.2mm (W) x 23.3mm (H)
Accessories
- USB 2.0 A to B cable
- 5V/2.1A power adaptor
- L-bracket
Screw Mounting Hole
- ¼–20 mounting hole
Power Consumption
- 5V max current: ~1.05A
- Max power consumption: ~5.5W
Working Environment
- Operating temperature: 0 to 40 deg C
- Storage temperature: –20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
