Magewell Pro Convert AES67

446,49 Incl. btw€369,00 Excl. btw Niet op voorraad, check levertijd
Registreer je in onze webshop. We controleren je gegevens en geven je toegang tot gepersonaliseerde kortingen. Crosspoint geeft je graag persoonlijk advies gebaseerd op meer dan 25 jaar ervaring. Bekijk ook andere audio over ip items in onze webshop. Lees meer
  • ECO friendly webshop
  • Persoonlijk advies
  • 25 jaar ervaring
  • Meer dan 4.000 producten
  • Secure payment
  • Registreer en ontdek je voordelen

Specificaties

Merk:
Magewell
Beschikbaarheid:
Niet op voorraad, check levertijd
Levertijd:
2 - 3 weken

Informatie

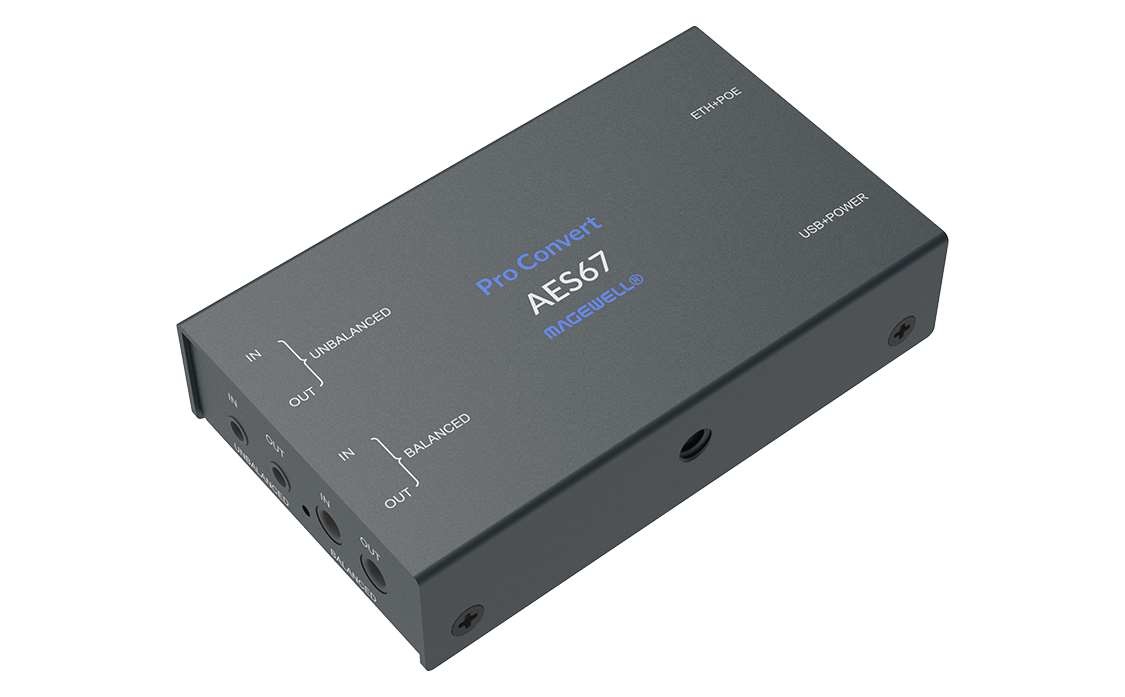

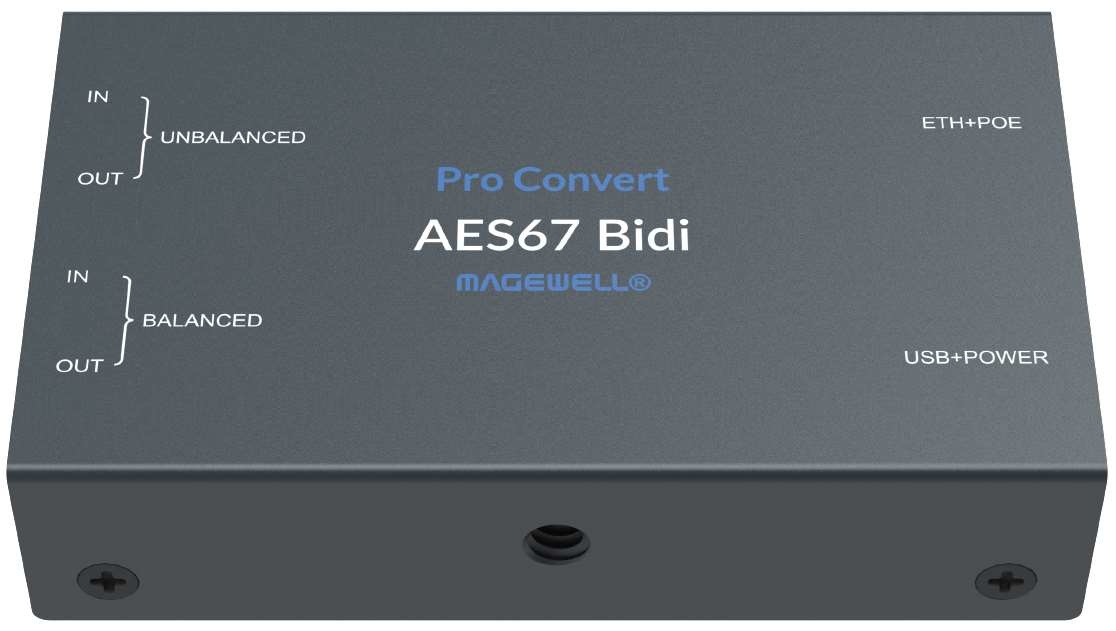

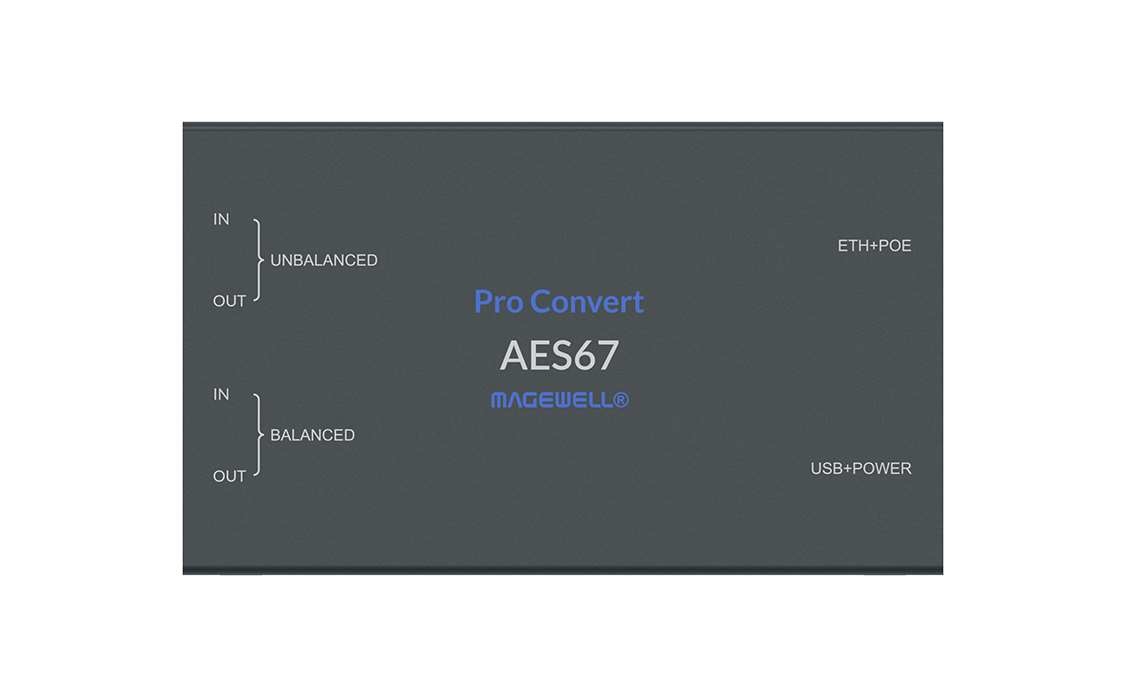

A multi-format IP audio converter and capture device

- Offers a seamless bridge between analog audio, software and IP standards including AES67, NDI®, SRT and more
- Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output
- Enables mixed-technology local and remote production workflows and ProAV installations

Audio Routing Matrix

  • Output up to 22 channels, and input up to 46 channels.
  • It routes any of the inputs to any of the outputs. Each channel
    in these outputs is completely independent and isolated from
    each other.
  • The 46 x 22 crosspoint performance audio matrix offers routing,
    mixing and volume setting functionalities for the inputs
    and outputs.

Specifications

- USB Audio Class

  • Input up to 8-channel USB digital audio at 48KHz
  • Output up to 8-channel USB digital audio at 48KHz
  • Wide compatibility-The AES67 BIDI is compatible with Windows,
    Linux and Mac systems. It can work with web conferencing
    softwares such as Zoom, Teams.

- 10/100/1000Mbps with PoE (IEEE 802.3af) AES67

  • Receive up to 4 AES67 streams in 8 Channel mode (up to active channels)
  • Multicast streams to up to 8 endpionts within a LAN network.  Each connection contains a maximum of 8 channels.
  • It is ideal for high performance media network which transmits professional audio streams with ultra low latency (less than 10ms). It supports 16- and 24-bit linear PCM input and output data, with sampling frequencies 44.1kHz, 48kHz, 96kHz. And the codec supports to work with the AES67-enabled Dante and Merging devices.

- Icecast

  • Input 1 x 2-channel icecast in formats of AAC or MP3
  • Output 1 x 2-channel icecast in AAC format
  • It can be used to build digital audio networking so that youcan listen to icecast internet radios, and stream local audio to a specified icecast server.

- Input/ Receiving Features

Receiving up to 46 audio channels

  • 1 x 2-channel 3.5mm unbalanced in
  • 1 x 2-channel 4.4mm balanced in
  • 1 x 4-channel 24-bit/48k UAC in
  • Receiving 4 x 8-channel 24-bit AES67 streams both multicasted and unicasted
  • It is optional to receive 1 x 4-channel 24-bit SRT stream or 1 x 4-channel 24-bit NDI® stream or 1 x 4-channel 24-bit Icecast stream

- Output/ Sending Features

  • 1 x 2-channel 3.5mm unbalanced out
  • 1 x 2-channel 4.4mm balanced out
  • 1 x 4-channel 24-bit/48k UAC out
  • Multicast and unicast up to 8 x 8-channel 24-bit AES67 streams
  • Encoding 1 x 4-channel 24-bit audio for Icecast/SRT/NDI® stream simultaneously

- Audio Routing and Mixing Features

  • Any analog or IP-based input channel can be routed and mixed into any analog, IP or UAC output via a web-based user interface

- Others

  • Plug-and-play as a UAC device
  • Provide comprehensive information regarding the device and signals in real-time
  • Remote control via Web GUI and Magewell Cloud
  • Support USB RNDIS/ECM
  • Provide HTTP APIs



Accessory Included

- 1 x Power Adapter

- 1 x USB Type A to Type B Cable

- 1 x L Bracket

- 1 x 4.4mm to Dual XLR Male Cable

- 1 x 4.4mm to Dual XLR Female Cable
