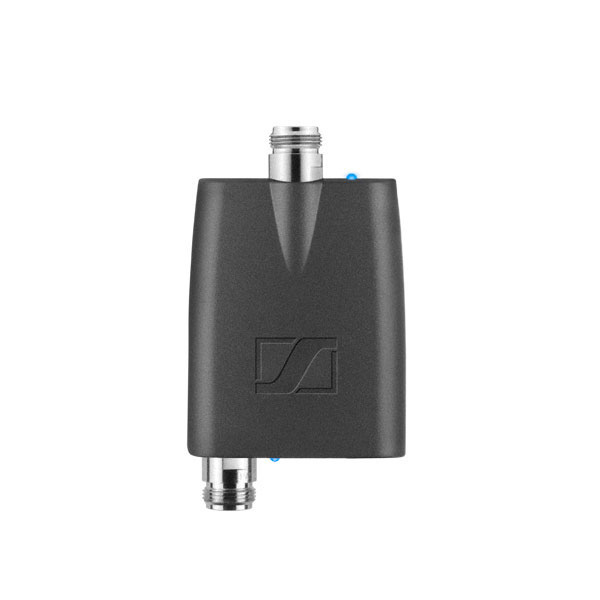

Sennheiser AB 9000 Antenna Amplifier

Informationen

The remote-controlled antenna booster contains eight highly selective filters that each allow a 24 MHz frequency window to pass. This adds significant safety to the system, as unwanted signals are blocked directly before the first active component. The frequency window can be remotely selected from the receiver. The linear RF amplifier with very high resistance to intermodulation can compensate for cable losses of up to 14 dB. The booster and receiver together check the cable loss on the RF cable and adjust the gain automatically.

• Eight highly selective filters

• Automatic or manual (without EM 9046) selection of filter

• Highly linear RF amplifier with typ. 17 dB amplification

• N-type connectors
