Plura SFP-317-H 17" Hybrid Monitor, IP, Class A, Coax
- ECO friendly webshop
- Persönliche Beratung
- 30 Jahre Erfahrung
- Über 4.000 Produkte
- Secure payment
- Registrieren Sie sich und entdecken Sie Ihre personalisierten Rabatten
Eigenschaften
Informationen
SFP-317-H, 17" monitor is the NEW FUTURE PROOF Hybrid Monitor which supports
- IP - 10G/s SFP+
- Fiber - 3Gb/s SFP
- Coaxial SFP 3Gb/s
- Direct BNC 3Gb/s I/O
The SFP-317-H is integrated with powerful H/W & S/W platforms to support Coaxial 3Gb/s BNC I/O connectivity, Coaxial SFP I/O connectivity, IP SFP+ over Fiber decoding "ST-2110 & ST-2022" with Third-Party H/W decoder and the NEW PIPM "Plura Software Stack IP Platform" decoder.
SFP-H is the ONLY monitor series in the market that can decode ST-2110 and ST-2022 IP streams with PIPM "Plura Software Stack IP Platform" based on a powerful computing core and utilizing standard 10G/s SFP+ module.
As an optional feature the SFP-H series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.

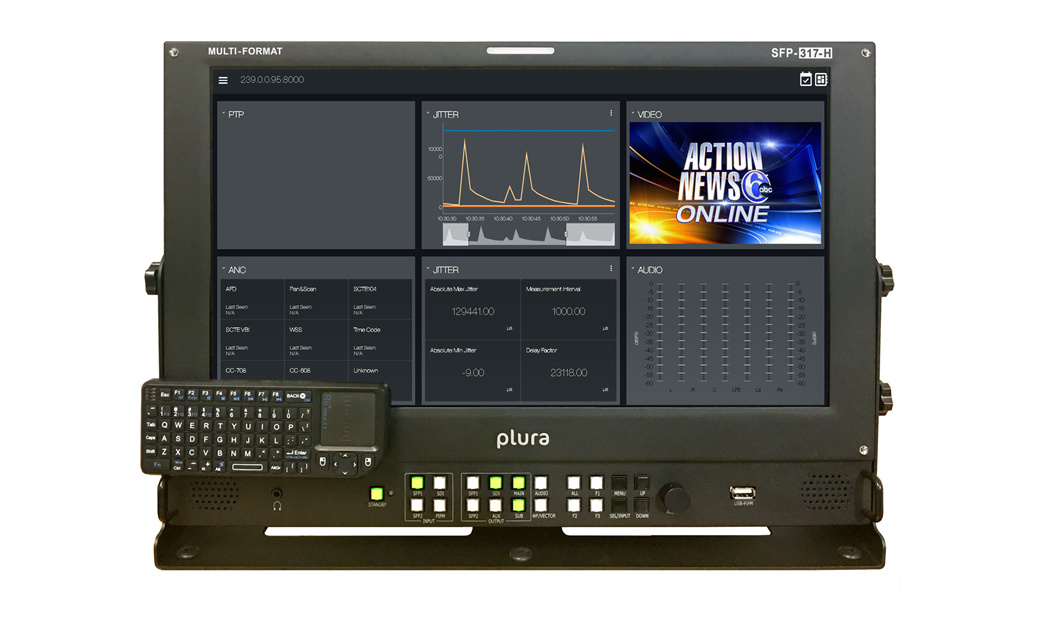

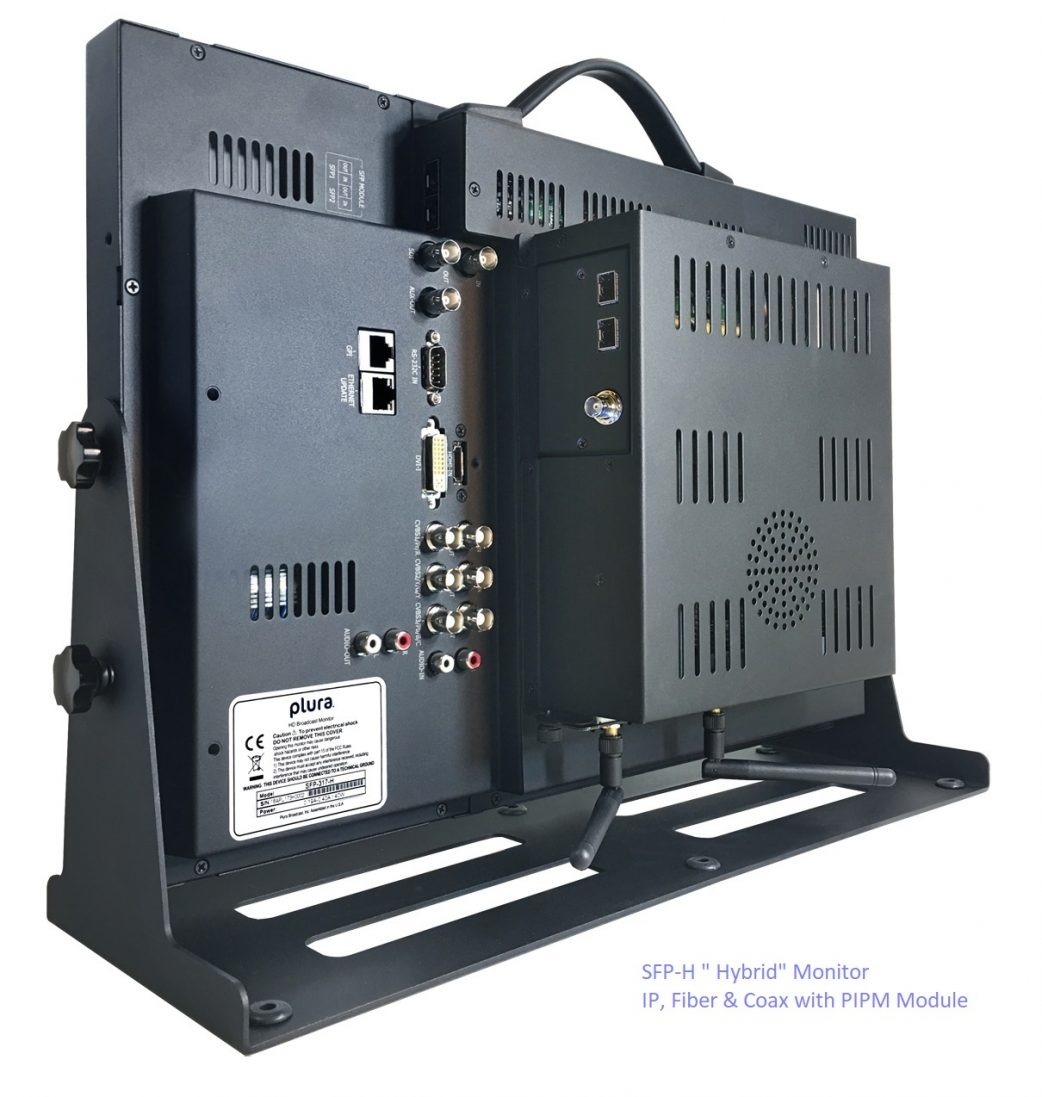

- SFP-317-H, 17" Hybrid Monitor supporting Coax, Fiber & IP connectivity
- Decode ST-2110 and ST-2022 IP streams with "PIPM" Plura Software Stack IP Platform module
- Supports Coaxial 3Gb/s BNC I/O connectivity
- Supports Coaxial SFP I/O connectivity
- Supports IP SFP+ over fiber decoding "ST-2110 & ST-2022" with any Third-Party H/W decoder
- 2 x SFP+ cages supporting 10G/3G/1.5G SDI
- 1 x 3G/1.5G Input port
- 2 x 3G/1.5G output ports
- LKFS Audio Loudness logging & measurement
- *"PIPM" Plura Software Stack IP Platform - OPTIONAL
- Built-IN 4 x 4 Crosspoint Solution
- 1 x HDMI, 1 x DVI & other legacy I/O
- 178 degree Viewing Angle Display
- Gamma Selectable (0.8 - 3.0)
- Color Temperature - User, VAR, Adjustable (11000K TO 3200K)
- (ICAC) - Plura Intelligent Connection for Alignment & Calibration

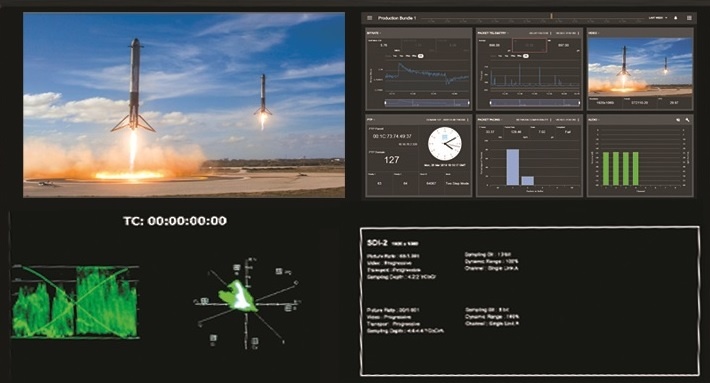

- Display Advanced Waveform & Vector Scope simultaneously with line select
- Various and User defined Markers Display & Safe Area

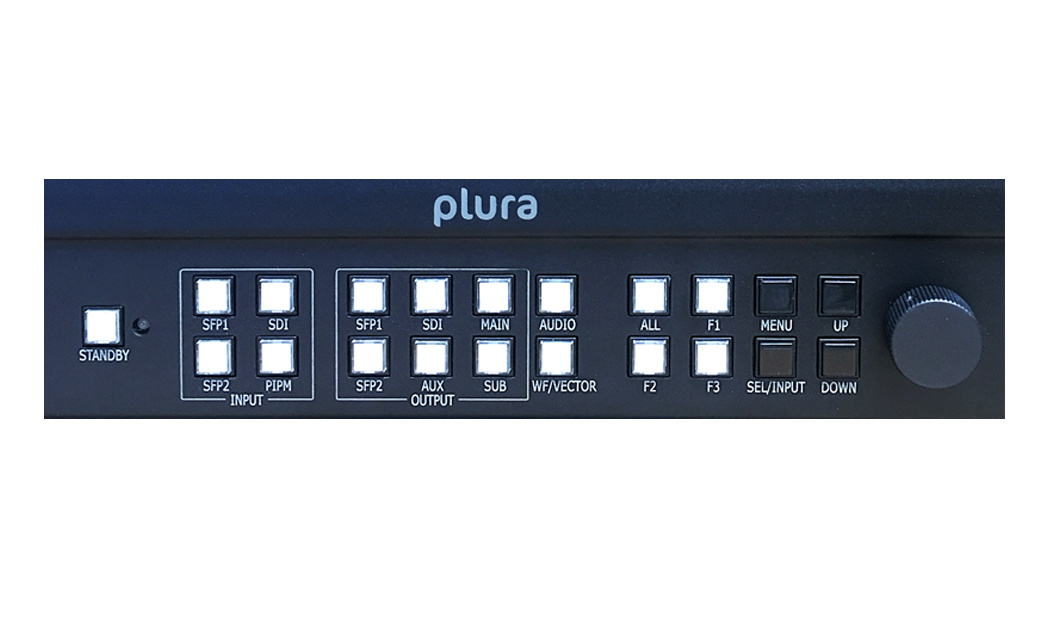

- Programmable 3 User Front Pushbutton Controls & GPI
- Closed Caption (608/708) - North American Market
- Cutting edge De-interlacing and scaling Technology
- Fast Response Time for high motion video
- Internal Monitor Display (IMD)
- Ethernet & RS232 Remote Control
- Ember+ compliant control system capabilities - OPTIONAL
- Underscan / Overscan / Normal / Zoom
- Pixel to Pixel Mode, Tally, DC operation
- False Color and Peaking Filter / Focus Assist
- Video Range test with adjustable Y & C values
- Display LTC & DIVTC time code with line select
- Embedded Audio input, Digital Audio Decoding
- Internal Pattern Generator and Wall Control System
