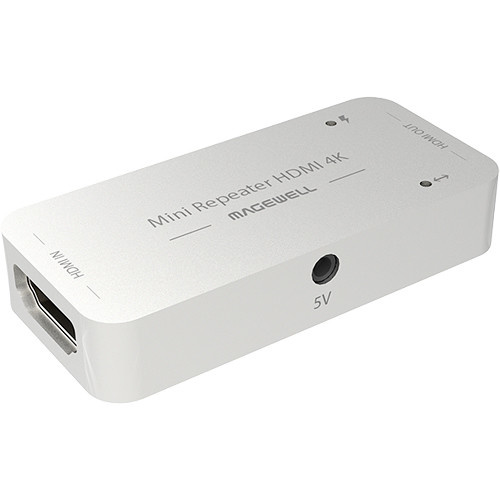

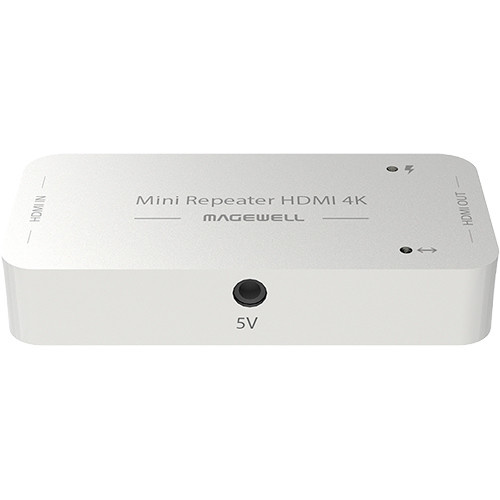

Magewell Mini Repeater HDMI 4K

Informationen

• Enhances signals and extends transmission distance
• Fixes the corrupted signal
• Supports HDMI 2.0

Interface

Specifications and Features

Input interface

• HDMI Type A

Input signal

• HDMI/DVI-D

Output interface

• HDMI Type A

• Compatible with HDMI 2.0
• Compatible with DVI standards
• Support 3D, 4K x 2K, HDCP 1.x/2.x

• Support up to 597MHz pixel rate
• Support up to 6.0 Gbps HDMI data rate

• Receive and equalize signals
• Eliminate signal dithering
• Provide DDC buffer

• Powered by HDMI signal or external power supply (5V)
• Onboard LED shows the status of input/output

• Power: +5V
• Size: 58.22 mm x 27.26mm x 10.80 mm
• Accessory: USB to 5V cable

Max Cable Length Supported (Magewell used JCE HDMI cables for tests)

For 4K signals

10m (32 feet) cable can be supported for both input and output.

For 2K signals

20m (65 feet) cable can be supported at both the input and output.

*Note: Please make sure that HDMI cables of high quality are used to ensure max transfer length and best capture experience.
