Barnfind Barncolor 4x10G SFP-Flex

Informationen

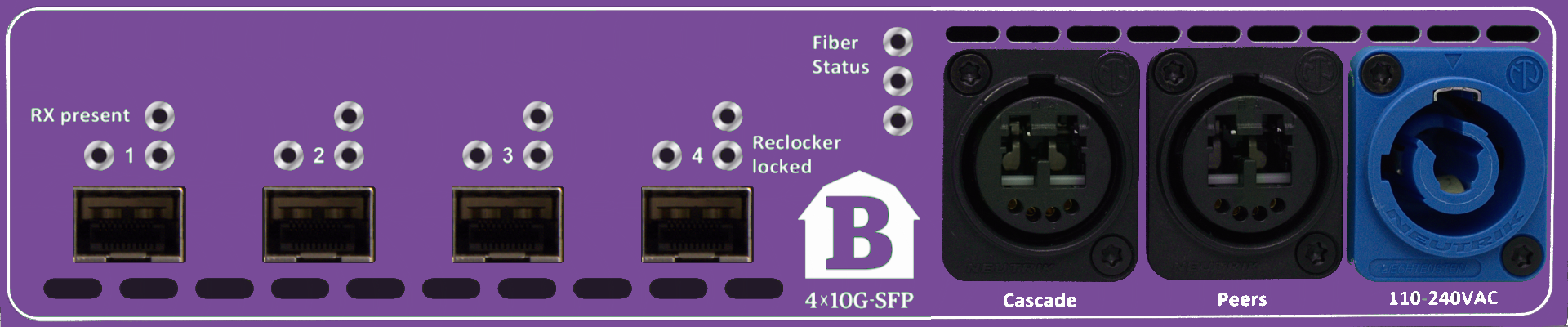

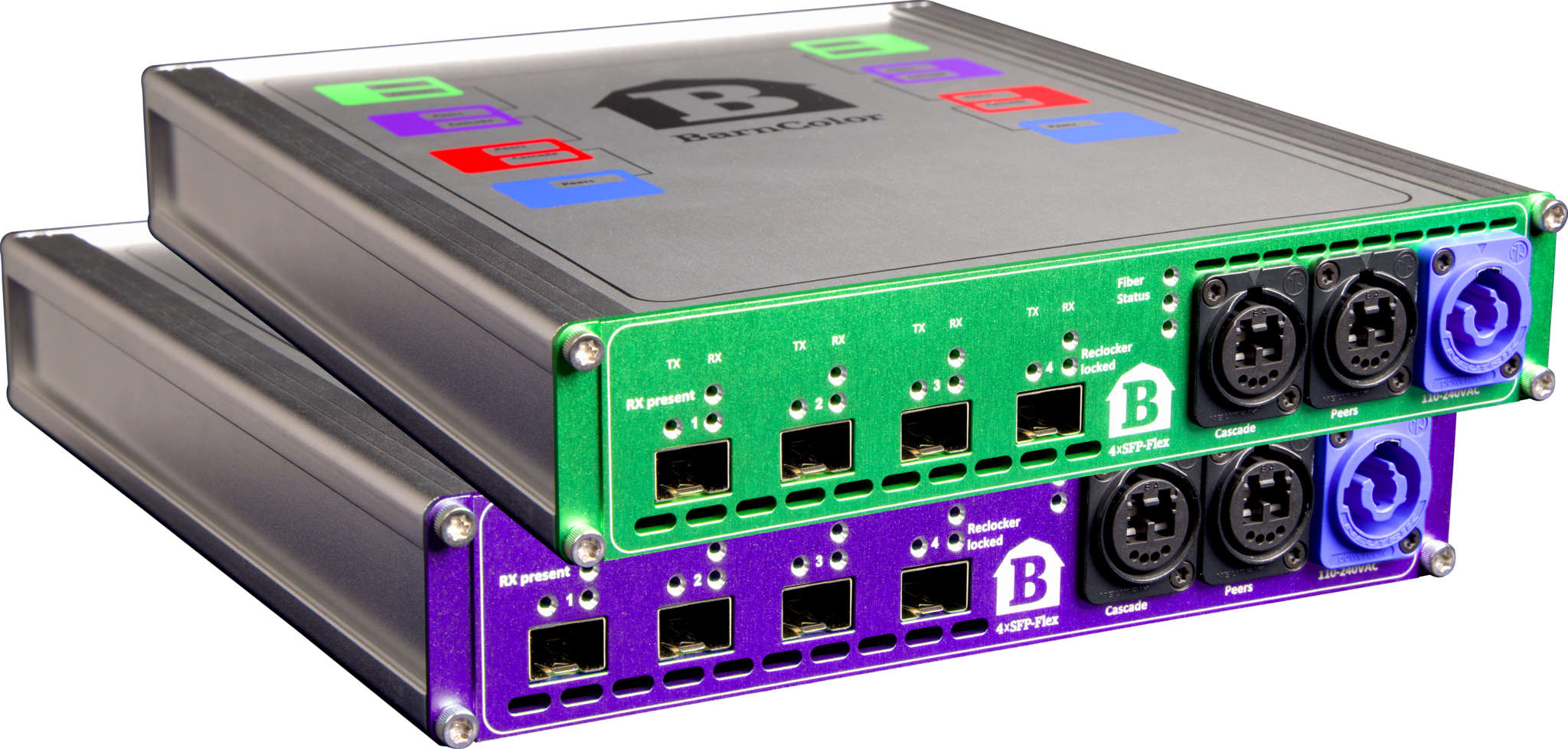

Designed to supplement the highly flexible BarnColor system, the new BarnColor 4xSFP-Flex provides 4 SFP transceiver cages on each unit and allows you to configure your BarnColor-Flex pairs with the signal processing SFPs needed for your unique application. Up to four different color units can be cascaded to each other; the system supports up to 16 transceiver cages on each side and allows the transport of 32 signal feeds; 16 feeds forward and 16 returns. Can be combined with any models in different colors.

Examples of SFPs being used:

• PtP (any wavelength)
• Multimode
• BNC-SFP
• HDMI-SFP
• Analog Video-SFP
• IP encap/decap-SFP
• RJ45 for ethernet

SFP-Ports
SMPTE 258M, 292M, 372M, 424M, DVB-ASI, SMPTE ST-2081, 1 Gbit/s Ethernet, 10 Gbit/s Ethernet

Multirate reclocking of outputs 270Mbps - 10Gbps

Fiber port (Cascade and Peer)
Neutrik opticalCON DUO, also compatible with duplex Single Mode fiber LC-LC
SMPTE 297M

Power plug
Neutrik powerCON
100-240VAC, 15Watt

Physical size
223mm x 277mm x 44mm (8.8" x 10.9" x 1.7")
1.4 kg
