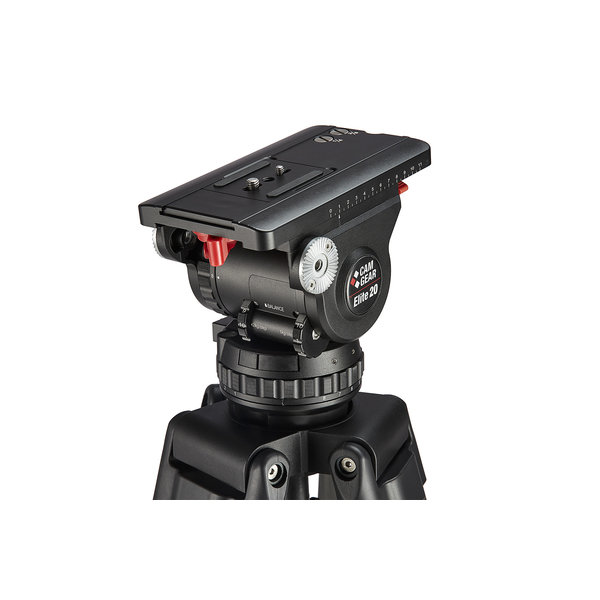

Camgear Elite 20 EFP Fluid Head (100mm Bowl)
- ECO friendly webshop
- Personal advice
- 25 years of experience
- Over 4.000 products
- Secure payment
- Register and discover your discounts
Specifications
Related products
Information
Fluid Head incl. Elite Wedge Plate TNG-16, Bowl Clamp BC-2 & Elite Telescopic Pan Bar ELPB-2 (set of 2)
The Elite 20 is the strongest solution in the 100 mm Elite-Series range and it supports a payload of up to
29 kg/63.9 lbs. With the 10+10 (100) step counterbalance adjustment range it can virtually perfectly balance anything from a GoPro to a small ENG studio configuration with full 21” Teleprompter. The wide
operating temperature range and several other practical features makes it ideal for EFP and fieldbased 4K/HD and digital film productions as well. It supports broadcast and film cameras in various heavy configurations.
The Elite 20 tripod systems come with the matching patented Elite 3S-FIX Quick Lock & Release 100 mm 110 kg/243 lbs capacity EFP-HD tripod, illuminated levelling bubble with sliding plate screw parking
positions and the integrated screw key to make your operation run smoothly.
Specifications:
| Bowl Diameter | 100 mm |
| Camera Platform Type | Touch & Go 16 |
| Camera Plate | Camgear TNG-16 1/4" screw, 3/8" screw |
| Counterbalance System | 10+10 steps (1-10, 1-10) |
| Pan & Tilt Drag | 8 steps (1-8) |
| Pan & Tilt Range | Pan: 360° / Tilt: +90/-75° |
| Temperature Range | -40°C to +60°C / -40°F to +140°F |
| Levelling Bubble | Illuminated Touch |
| Pan Bar | Camgear Telescopic ELPB-2 (set of 2, left & right) |
| Maximum Payload | 29 kg / 63.93 lbs |
| Weight | 5.24 kg / 11.55 lbs |
| Sliding Range | 110 mm / 4.33 inch |
