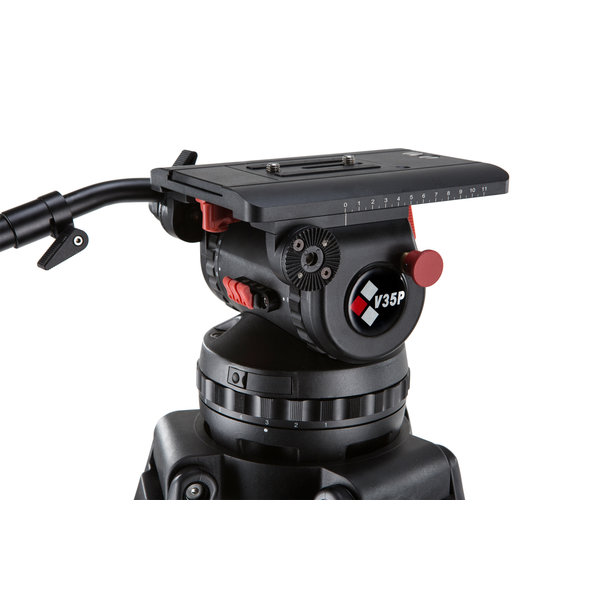

Camgear V35P EFP Fluid Head (150mm Bowl)

Information

Fluid Head incl. Wedge Plate WP-5, Bowl Clamp BC-3 & 2x Telescopic Pan Bar PB-2 (Left & Right)

• Selectable 8 steps pan & tilt drag including zero position offer operators silky smooth movement and precise motion tracking and a shake-free shot.
• Selectable 11 position counterbalance, thanks to newly featured 3 added position, it can do much finer
  adjustment for the cameras to reach the perfect balance.
• Equipped with assembly lock mechanism, which ensures safe set-up of equipment.
• Perfect solution for EFP and field-based HD production and studio application. It supports most portable broadcast cameras and camcorders in heavy configuration and studio applications with teleprompter or compact studio lens.
• Quick-release mini Euro plate enables faster set-up of camera.

Specifications:

• Maximum Payload 45 kg/99 lbs
• Counterbalance Range 0-42 kg/0-92.6 lbs (at C.O.G 125 mm)
• Camera Platform Type Mini Euro plate (Camgear WP-5)
• Sliding Range 120 mm/4.72 in
• Camera Plate 1/4”, 3/8” screw
• Counterbalance System 11 steps (1-8 & 3 Adjusting levers)
• Pan & Tilt Drag 8 steps (1-8)
• Pan & Tilt Range Pan: 360° / Tilt: +90/-75°
• Temperature Range -40°C to +60°C / -40 to +140°F
• Levelling Bubble Illuminated Levelling Bubble
• Weight 7.03 kg/16.1 lbs
• Bowl Diameter 150 mm
