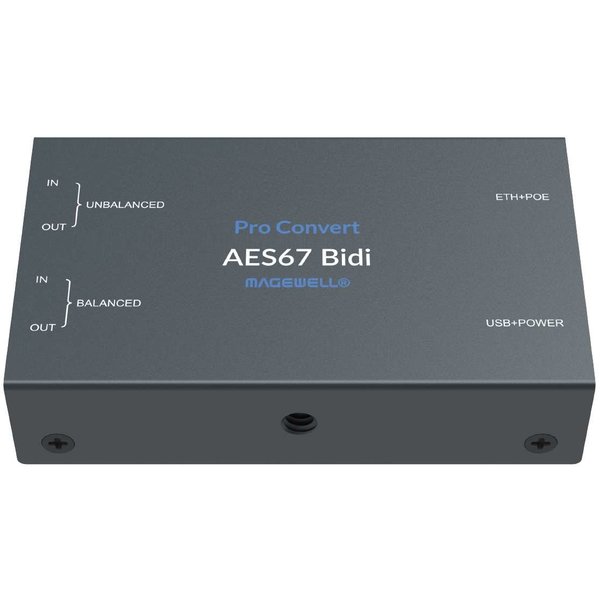

Magewell Pro Convert AES67

Information

A multi-format IP audio converter and capture device

- Offers a seamless bridge between analog audio, software and IP standards including AES67, NDI®, SRT and more
- Provides a flexible, virtual audio matrix to allow routing or mixing of any analog or IP-based input channel to any output
- Enables mixed-technology local and remote production workflows and ProAV installations

Audio Routing Matrix

• Output up to 22 channels, and input up to 46 channels.
• It routes any of the inputs to any of the outputs. Each channel
  in these outputs is completely independent and isolated from
  each other.
• The 46 x 22 crosspoint performance audio matrix offers routing,
  mixing and volume setting functionalities for the inputs
  and outputs.

Specifications

- USB Audio Class

• Input up to 8-channel USB digital audio at 48KHz
• Output up to 8-channel USB digital audio at 48KHz
• Wide compatibility-The AES67 BIDI is compatible with Windows,
  Linux and Mac systems. It can work with web conferencing
  softwares such as Zoom, Teams.

- 10/100/1000Mbps with PoE (IEEE 802.3af) AES67

• Receive up to 4 AES67 streams in 8 Channel mode (up to active channels)

• Multicast streams to up to 8 endpionts within a LAN network.  Each connection contains a maximum of 8 channels.

• It is ideal for high performance media network which transmits professional audio streams with ultra low latency (less than 10ms). It supports 16- and 24-bit linear PCM input and output data, with sampling frequencies 44.1kHz, 48kHz, 96kHz. And the codec supports to work with the AES67-enabled Dante and Merging devices.

- Icecast

• Input 1 x 2-channel icecast in formats of AAC or MP3
• Output 1 x 2-channel icecast in AAC format
• It can be used to build digital audio networking so that youcan listen to icecast internet radios, and stream local audio to a specified icecast server.

- Input/ Receiving Features

Receiving up to 46 audio channels

• 1 x 2-channel 3.5mm unbalanced in
• 1 x 2-channel 4.4mm balanced in
• 1 x 4-channel 24-bit/48k UAC in
• Receiving 4 x 8-channel 24-bit AES67 streams both multicasted and unicasted
• It is optional to receive 1 x 4-channel 24-bit SRT stream or 1 x 4-channel 24-bit NDI® stream or 1 x 4-channel 24-bit Icecast stream

- Output/ Sending Features

• 1 x 2-channel 3.5mm unbalanced out
• 1 x 2-channel 4.4mm balanced out
• 1 x 4-channel 24-bit/48k UAC out
• Multicast and unicast up to 8 x 8-channel 24-bit AES67 streams
• Encoding 1 x 4-channel 24-bit audio for Icecast/SRT/NDI® stream simultaneously

- Audio Routing and Mixing Features

• Any analog or IP-based input channel can be routed and mixed into any analog, IP or UAC output via a web-based user interface

- Others

• Plug-and-play as a UAC device
• Provide comprehensive information regarding the device and signals in real-time
• Remote control via Web GUI and Magewell Cloud
• Support USB RNDIS/ECM
• Provide HTTP APIs

Accessory Included

- 1 x Power Adapter

- 1 x USB Type A to Type B Cable

- 1 x L Bracket

- 1 x 4.4mm to Dual XLR Male Cable

- 1 x 4.4mm to Dual XLR Female Cable
