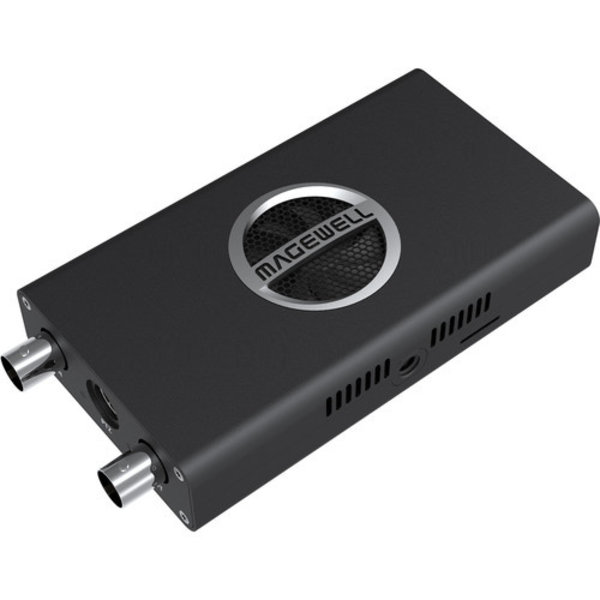

Magewell Pro Convert NDI Encoder 12G SDI 4K Plus

Name: Magewell Magewell Pro Convert NDI Encoder 12G SDI 4K Plus
Brand: Magewell
SKU: 640900000
Price: 959.00 EUR
Availability: InStock

€1.160,39 Incl. tax€959,00 Excl. tax In stock

Create a login. We check your details and give you access to your personal discount levels. Crosspoint is happy to give you personal advice based on more than 25 years of experience. View other ndi converters in our webshop. Read more

ECO friendly webshop
Personal advice
25 years of experience
Over 4.000 products
Secure payment
Register and discover your discounts

Specifications

Brand:

Magewell

Availability:

In stock

Delivery time:

In stock (1 - 2 working days)

Information

Converts one channel of 12G-SDI video up to 4Kp60 into Full NDI.

Connects existing source equipment into NDI-enabled, IP-based media networks
Supports inputs up to 4K at 60fps with 16 channels of embedded audio
Plug-and-play ease of use with automatic input format detection and DHCP network configuration

SDI Input

Max Video input: 4096x2160 60fps. Supported resolutions include:

4096x2160p, 3840x2160p, 2048x1080p, 2048x1080i, 1920x1080p, 1920x1080i all at 23.98/24/25/29.97/30/47.95/48/50/59.94/60fps
1280x720p at 50/59.94/60fps
720x576 at 25p/50i (PAL SD)
720x480 at 29.97p/59.94i (NTSC SD)

Support for RGB/RGBA/YUV/YUVA signals with 10/12-bit color depth
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Max Audio inputs: 16 embedded channels

NDI Output

Max output: 4096x2160 60fps 4:2:2 8-bit
Output frame rate same as the original, 1/2, 1/3 or 1/4 input frame rate
Output resolution at the resolution of input, typical formats or any custom resolution. Typical output:

4096x2160p, 3840x2160p, 2048x1080p, 2048x1080i, 1920x1080p, 1920x1080i all at 23.98/24/25/29.97/30/47.95/48/50/59.94/60fps

NDI 4.1

SDI Processing Features

Input/loop-through interfaces: SD/HD/3G/6G/12G SDI
Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425)/6G (ST 2081)/12G (ST 2082) SDI standards
Receive SDI transmitted up to the following distances:

Signal	Distance
HD-SDI	280m	919ft
3G-SDI	180m	591ft
6G-SDI	80m	262ft
12G-SDI	30m	98ft

Web GUI Management

Provide comprehensive information regarding the device and input signals in real-time
Allow to configure how an input is processed and encoded, including deinterlacing, up/down scaling, audio channel mapping, as well as the network connection.
Support USB RNDIS/ECM
Support IE/Edge/Firefox/Chrome/Safari/Opera web browser
Support with HTTP APIs

PTZ & Tally Control
