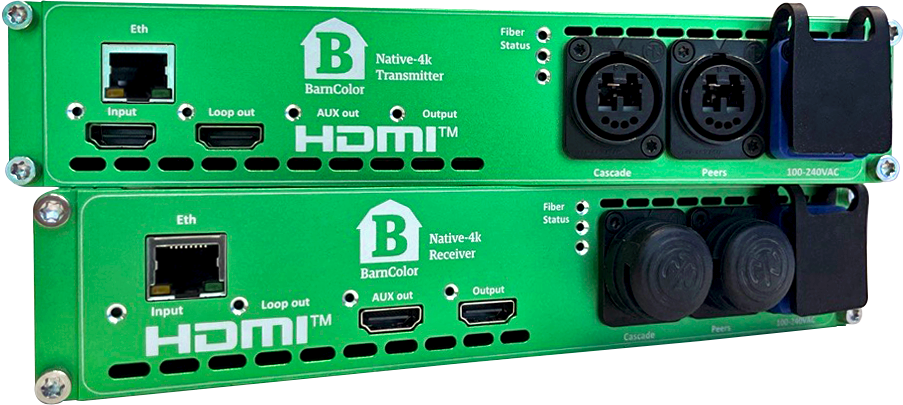

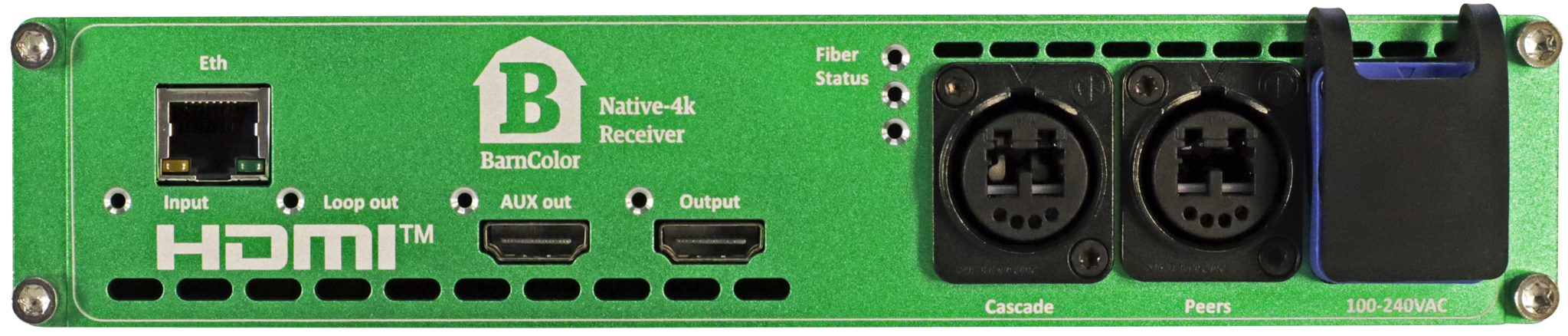

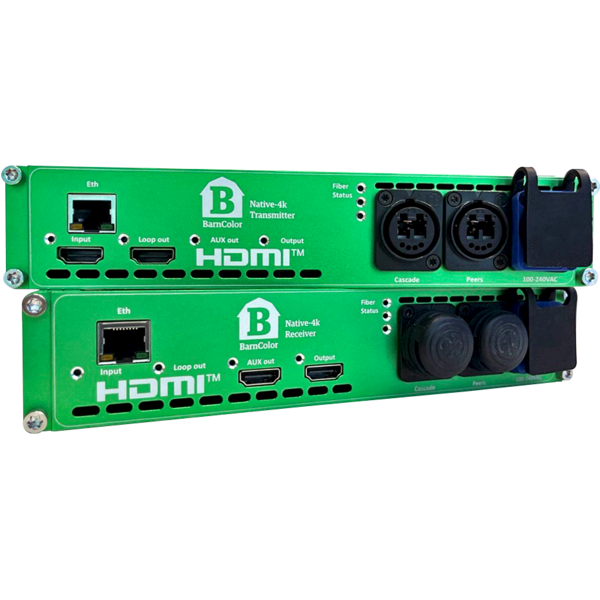

Barnfind BarnColor Native 4K, 1CH HDMI 2.0 Receiver

Information

BarnColor-Native-4K takes HDMI™ transport to the next level by delivering uncompressed signals over fiber up to 10km distance. This capability is crucial for event companies using large LED monitors, where any compression artifacts can significantly impact viewer experience. Each BarnColor-Native-4K unit transports 1x HDMI™ signal, and by cascading four different colored BarnColor-Native-4K units, you can transmit 4 uncompressed HDMI™ signals over an OpticalCon DUO or LC fiber cable.BarnColor-Native-4K can also be combined with any other BarnColor products in the same cascade. This innovation ensures pristine image quality, no matter the scale of the display.

Compatibility The BarnColor devices can be installed in colored pairs or used as satellites together with a BarnOne system. If building a pure BarnColor system you can start with any color-matching pair and extend the system later as your need expands. You can combine different models of BarnColors or use multiple of the same model in the same system as long as the colors are different.We recommend using single mode fibers when linking the BarnColor devices.

Specifications:

Fiber port (Cascade and Peer)
• Neutrik opticalCON DUO, also compatible with duplex Single Mode fiber LC-LC

HDMI™ plug
• Capable of transferring up to 18Gbit/s data used by 4k resolutions, compatible with HDMI™ version 2.0.
• Can also be used with non-standard video timings and video resolutions, typically used by LED video walls.

Power plug
• Neutrik powerCON or TRUE1
• 100-240VAC, 15Watt

Physical size
• 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”)
• 1.4 kg
