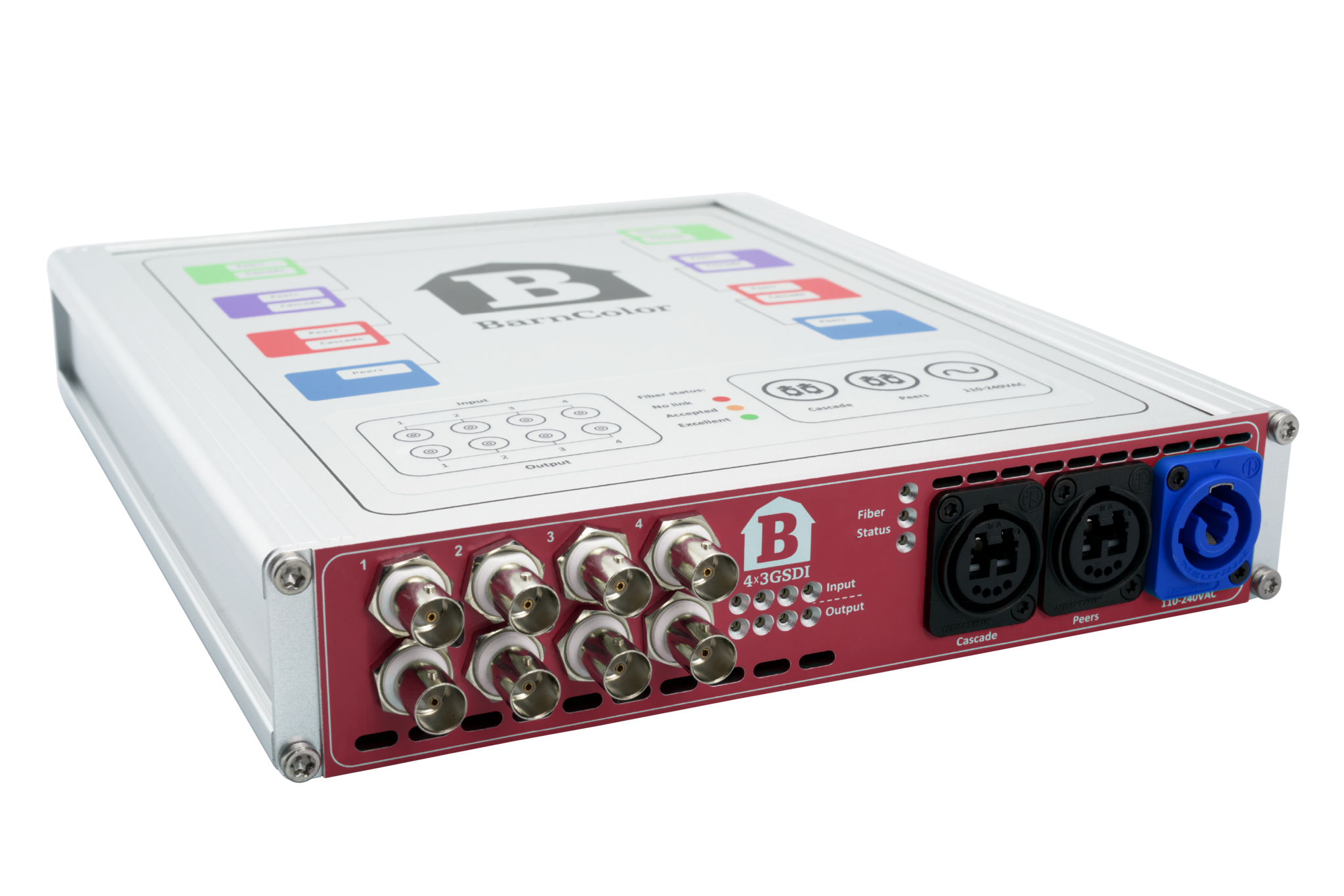

Barnfind BarnColor 4x3G SDI

2.655,95 Incl. tax€2.195,00 Excl. tax Out of stock, check delivery time
Create a login. We check your details and give you access to your personal discount levels. Crosspoint is happy to give you personal advice based on more than 25 years of experience. View other mini boxes in our webshop. Read more
  • ECO friendly webshop
  • Personal advice
  • 25 years of experience
  • Over 3.000 products
  • Secure payment
  • Register and discover your discounts

Specifications

Brand:
Barnfind
Availability:
Out of stock, check delivery time
Delivery time:
2 - 3 weeks

Information

BarnColor is designed to be a cost-effective solution for sending multiple video signals both directions on a single fiber cable. Up to 4 different colors of BarnColors can be daisy-chained. This flexible system is easy to install, upgrade and use. It is well suited for both fixed and temporary installations.



Typical use is to link up two locations, short or far, at live-events, studios, arenas, venues and hospital rooms or anywhere you want to transmit multiple video signals in uncompressed formats with a minimum of latency.

  • Cost effective solution
  • Easy to use (no technical skills required)
  • No configuration or setup procedures
  • Scalable, build your system in all colors
  • Small form factor, or 19 inch (1RU)

BNC-Ports

  • SMPTE 259M, 292M, 372M, 424M, DVB-ASI
  • Multirate reclocking of outputs 270Mbps – 3Gbps

Fiber port

  • Neutrik opticalCON DUO LITE, also compatible with duplex LC
  • SMPTE 297M

Physical size

  • 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”)
  • 1.4 kg

Power plug

  • Neutrik powerCON 20 A
  • 100-240VAC, 15Watt
