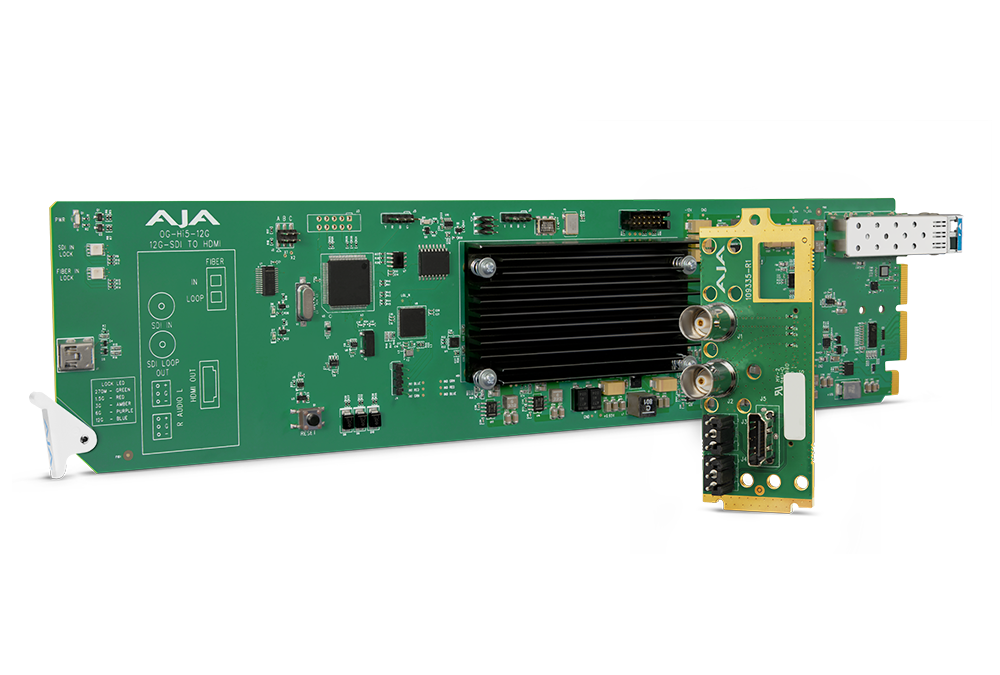

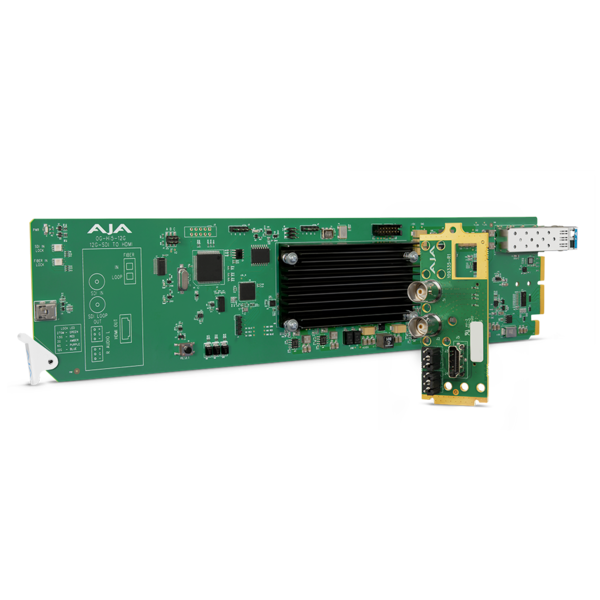

AJA OG-Hi5-12G-R 12G-SDI to HDMI 2.0 Conversion, with LC Fiber Receiver

Information

The OG-Hi5-12G-R converts 12G-SDI to HDMI 2.0, with pristine image fidelity and HFR support up to 60p for 4K/UltraHD, in the popular openGear form factor, and includes an LC Fiber receiver. The OG-Hi5-12G-R provides an easy to deploy monitoring connection from professional 4K 12G-SDI devices to devices with HDMI 2.0 inputs. The OG-Hi5-12G can also generate HDR metadata in accordance with HDMI v2.0 and CTA-861-G.

It features a 12G-SDI single link input with a reclocked SDI loop out for SDI monitoring or pass on for SDI pipelines.

Fiber SFP-equipped OG-Hi5-12G models are available, including the OG-Hi5-12G-R receiver, which can receive 4K signals over long distances from a fiber connected source. The Video Source Auto Switch Over feature (SDI and Optical Inputs) in OG-Hi5-12G-R provides automatic input changeover with configurable Switch Over Priority selection (Last Valid Input, Priority SDI, and Priority Optical).

Features:

12G-SDI to HDMI 2.0 Conversion with LC Fiber Receiver

• Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
• Supports 12-bit workflows
• Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
• Provides a monitoring connection from professional 4K devices using 12G-SDI over coaxial or Fiber LC outputs
• 12G-SDI single link input with a reclocked SDI loop out for SDI monitoring or pass on for SDI pipelines
• Ships with a Fiber LC single channel SFP receiver for extending 4K signals over long distances
• Monitor and control via Ross DashBoard software
• Five year warranty
