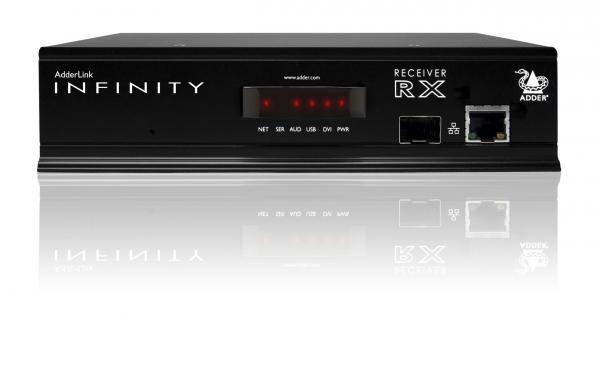

Adder AdderLink Infinity Single Receiver

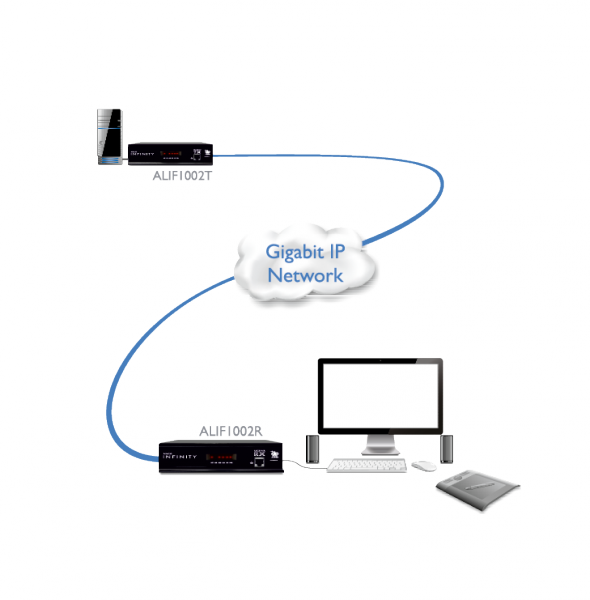

As part of the ADDERLink™ INFINITY range, ADDERLink INFINITY 1002 is a high performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a single head or single link, this extender provides pixel perfect video with minimal lag across a distance of up to 10km. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (AIM).
- ‘At-the-PC’ experience: single link or single head, 24 bits per color at a maximum resolution of 1920 x 1200 at 60Hz with minimal lag
- Adaptable to suit your needs: delivers uncompressed digital video with audio, and option to compress video to minimize bandwidth usage over copper or fiber
- IP-based: standard IP protocols, ensuring maximum compatibility with your existing IT infrastructure and staff skillset
- Flexible solution: from point-to-point extender to an infinitely extensible matrix
- In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication)
Perfect digital video
Uncompressed video extension and pixel perfect digital video up to 24 bits per color at a maximum of 1920x1200 single link or single head with real time control
Digital Stereo Audio
Digitally delivered crystal clear audio across the network
Distribution of DVI-D, USB, audio and bidirectional RS232 across up to 10km
The units can detect whether the network is in operation and will utilize the second network port is failure detected
Extended Display Identification Data (EDID) enables the remote system to exactly mirror the date coming from the source monitor
Plug and Play
The ADDERLink INFINITY range is delivered in a zero config state so they work as soon as they are connected, without the need for drivers or software
Robust yet lightweight
Small form factor, rack mountable device
USB True Emulation
USB2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers
Approvals / Compliance
The system supports either single link or single head DVI resolutions to a maximum of 1920 x [email protected] 60Hz
The system delivers analogue stereo audio (Line in, Line Out) via digital signalling between any transmitter/receiver pair.
Audio output of any transmitter can be multicast to many receivers.
Supports USB2.0 devices (Low, Full and High speed). The system has a security feature, which allows the blocking of non-HID devices. Isochronous devices are not supported (i.e. USB audio or video devices).
CATx (up to 100m/330ft) or fiber (requirements dependent)
0 to 40ºC / 32 to 104ºF
Connectors – Local Unit
1x DVI-D, audio 3.5mm in, audio 3.5mm out, USB type B, RS232 9-pin D-type. 1x 8p8c and 1x SFP for ADDERLink INFINITY network connections.

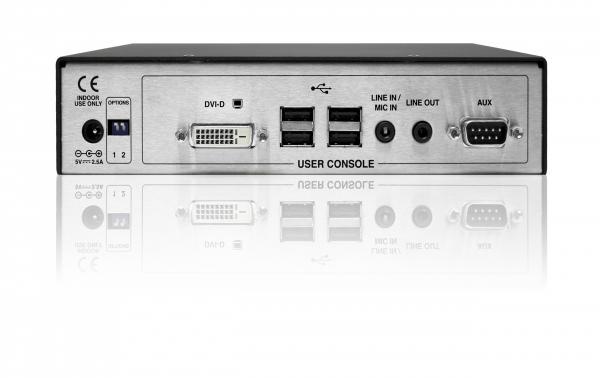

Connectors – Remote Unit
1x DVI-D, audio 3.5mm in, audio 3.5mm out, 4x USB type A, RS232 9-pin D-type. 1x 8p8c and 1x SFP for ADDERLink INFINITY network connections.
1U compact case, robust metal construction. 198mm/7.92” (w), 44mm/1.76” (h), 150mm/6.0” (d), 1.1kg/2.7lbs.
2.5mm DC jack (power adapter included),100-240VAC 50/60Hz, 0.8A, input to power adapter. 5VDC 20W output from power adapter.
All known operating systems.
