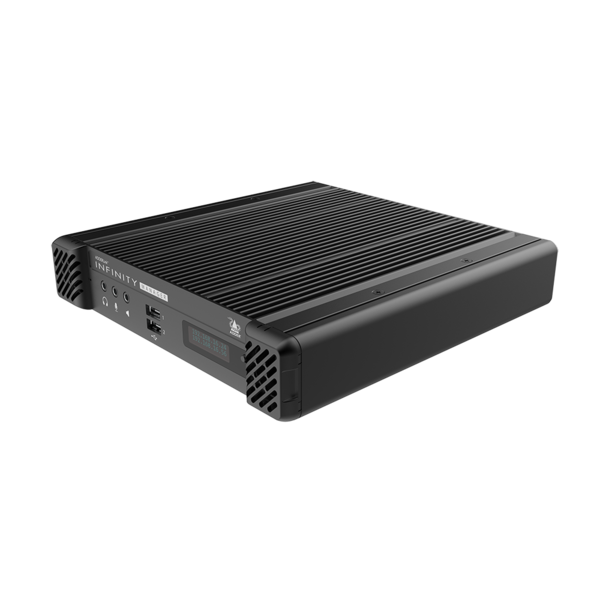

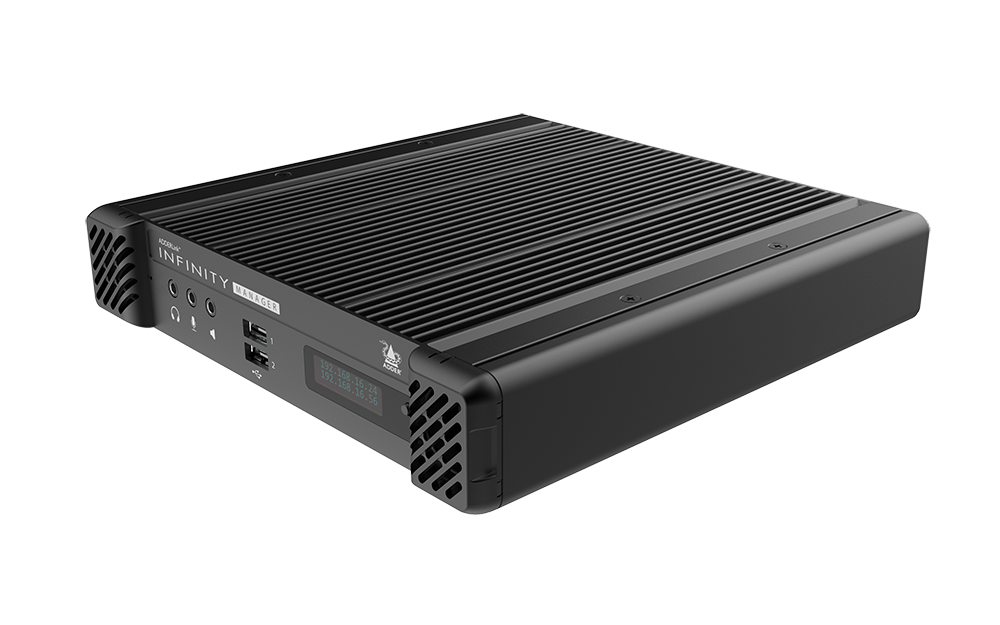

Adder AdderLink Infinity Manager Device - supports 24 End Points

Information

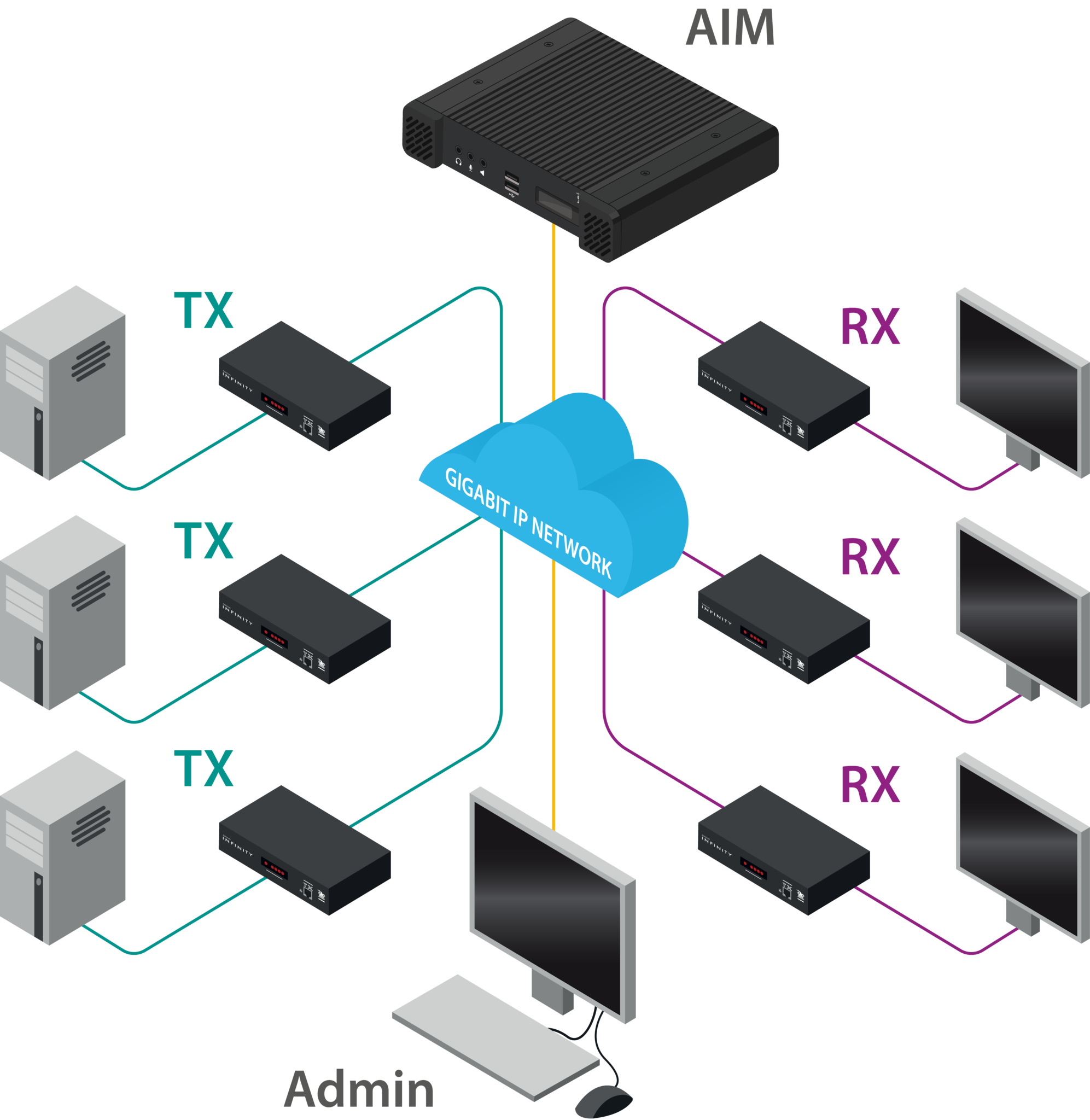

The ADDERLink^® INFINITY Manager (AIM) server is a control suite which transforms ADDERLink INFINITY (ALIF) extenders into a digital matrix solution. Using standard IP infrastructure it is possible to route any user station to any computer attached to the network without any compromises to video quality or control. It allows co– operative sharing of computers and multicasting of video to any destination.

• Intuitive, multi-lingual user interface
• Multiple switching methods
• Configurable user access rights
•  Full audit trail
• Easy centralized management
• Open API for 3rd party control

Product Features

Secure access and communications
Using TLS (transport layer security) and HTTPS, communications between ADDERLink^® INFINITY (ALIF) units and the ADDERLink INFINITY Manager (AIM), and between AIM and the outside world are all secure.

Redundant operation
For 24/7 reliability a second ‘hot’ AIM can be added to ensure constant uptime and with dual NIC interfaces on every ALIF unit, systems can be easily designed for maximum resilience.

User access rights management and audit trails
Administrators can manage access rights to each device on a user by user basis either manually through the web browser or automatically using Active Directory. Reports showing the history of devices, user logins and device connections can be viewed and exported to a CSV file or via SYSLOG.

Easy centralized management
Accessed via a web browser, the dashboard gives a real-time overview of system connections and users. Tabs enable you to navigate between settings and devices or user sub-menus.

Control Channel and Presets connections
AIM can be used to make connections between an individual pair of transmitter and receiver devices centrally from within the management system. Using Presets, a list of pre-defined connections, multiscreen, video wall or signage setups can be ‘pushed’ with a single click.

Internationalization
The user desks can select different keyboard configurations to suit their requirements and as a global setting select the language for the OSD from a choice of over 14 languages.

On-screen display at each user station
Users login and choose channel connections from an intuitive OSD similar to that of a Digital TV. Users can also use Presets to change channels for multiple screens across multiple receivers.

Remote OSD
The remote OSD allows the user to ‘push’ video and control to another station, to a video wall or projector. Favorites and hotkey switching Each user can select their favorite channels within the OSD and allocate a hotkey for fast switching between channels.

Choice of connection modes
Administrators can choose to give users the ability to connect in four modes: View only, shared, private or exclusive. Each permitted mode is then made available within the OSD.

Fast video and USB switching
The switching time between computers is less than 1 second to provide a quality user experience. Multicasting Network multicasting allows the system to share video simultaneously from one transmitter to an unlimited number of receivers. Suitable for signage, monitoring and sharing of desktops.

Multicasting
Network multicasting allows the system to share video simultaneously from one transmitter to an unlimited number of receivers. Suitable for signage, monitoring and sharing of desktops.

USB sharing
USB sharing allows multiple users to connect to and control a single computer at the same time. Each transmitter can report 12 unique USB devices (identified by VID/PID codes) but will merge devices with the same ID to allow many more.

Channels
Considered as a virtual transmitter, a channel may combine video, audio and USB from different transmitters as a single source. Ideal where audio alerts or mixed video sources are required.

Open API for 3rd party control systems
Adder Technology publishes a simple API structure to allow easy integration with other 3rd Party control systems supplied by companies like AMX, Crestron, HRS or MediaLon at a HTTP level.

LDAP integration
To help ease setup, the system has an LDAP interface so users and passwords from other systems can easily be imported.

SNMP v3 get / walk
External machines can interrogate AIM to find out the status of the ALIF network and units. SNMP v3 security is implemented, supporting AES/DES transport with MD5/SHA authentication.

External NTP server support – NTPv4.2
Connect up to 3 NTP servers with authenticated connections using MD5 and Key ID as defined in the NTP standards. All ALIF units in an AIM network now get time using authenticated NTP from AIM.

System backups
Backups of the database can be saved internally, externally or emailed automatically. Automatic updates can be scheduled on an hourly, daily or weekly basis.

Centralized firmware upgrades
As well as managing its own firmware upgrade, AIM manages the upgrade of each device on the network and can deploy firmware to hundreds of devices at the same time, meaning a systemwide upgrade takes only a few minutes.

Easy matrix setup
Using zero config. networking, AIM automatically obtains the MAC addresses of extender devices as they are attached to the network. The administrator allocates IP addresses, names and locations so that devices are easy to identify, configure and control.

Specification

Physical Design
Robust metal construction
• (L)210mm/8.3” x (W)215mm/8.5” x (D)40mm/1.6”
• Weight: 1.8kg/4lbs

Power supply
• External power: 12VDC, 5A
• Typical power consumption: 20W
• BTU: 68.24BTU/hr

Operating temperature
• 0 to 40ºC/32 to 104ºF

Storage temperature
• Storage temperature: 0 to 60ºC/32 to 140 ºF
• Altitude: < 2000m Humidity
• 10-90% (non-condensing)

Mean Time Between Failure (MTBF)
• 77,500 hrs
• Telcordia SR332 Issue 4 March 2016 Calculated @55ºC

Ethernet
• 1GbE with 10/100/1000 support via 2x SFP and 1x 8p8c

Approvals
• CE, FCC
