Specificaties
Informatie

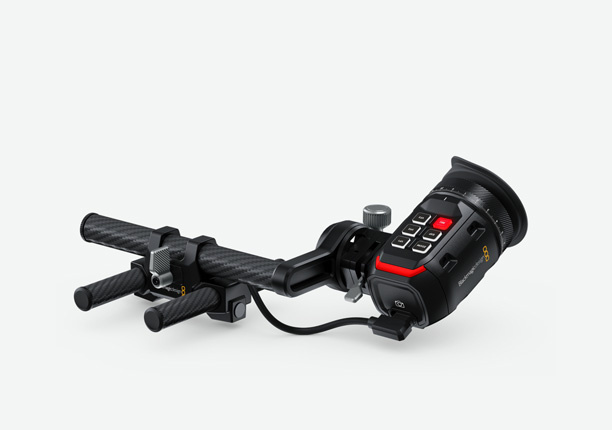

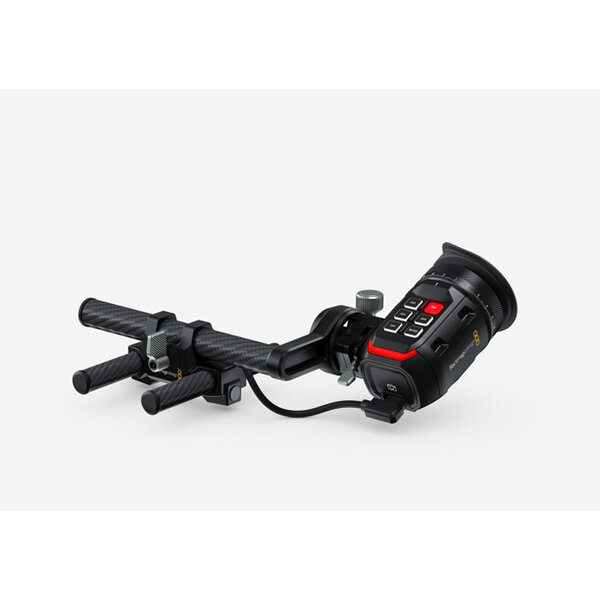

High quality viewfinder with full HD OLED display, precision glass optics, adjustable diopter and function buttons. Quick set up with versatile mounting and single USB-C cable for power and video.
Connections
Video Inputs
USB-C
Power Input
USB-C
Data Input / Output
USB-C
Computer Interface
USB-C for software updates.
Features
Display Resolution
Full 1920 x 1080.
Frame Rates
Up to 60fps
Display Type
OLED
Display Pixels
6.22 Million Pixels
Color Precision
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.
Focus
4 Element diopter.
Diopter Range
-5 to +5
Controls
Record button, Exposure Button, Zoom Button, 3 x assignable VF buttons.
Overlays
Built in overlay display processor and top mounted buttons.
Eyepiece
Can be tilted vertically and extended for left or right eye use.
Tally
LED tally light.
Mounting Options
Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports.
Metadata Support
Displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras.
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
Powered over USB-C.
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic URSA Cine EVF
Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod
Blackmagic URSA Cine EVF Bracket rod mount
Blackmagic URSA Cine EVF Extension
2 short carbon fibre 15mm rods
1 short right angle to right angle USB Viewfinder cable
1 short right angle to straight USB Viewfinder cable
1 long right angle to straight USB Viewfinder cable
Rubber eyecup
Fabric eye chamois
Blackmagic Sticker
Welcome wallet with QR code for software download
Warranty
12 Month Limited Manufacturer’s Warranty.
