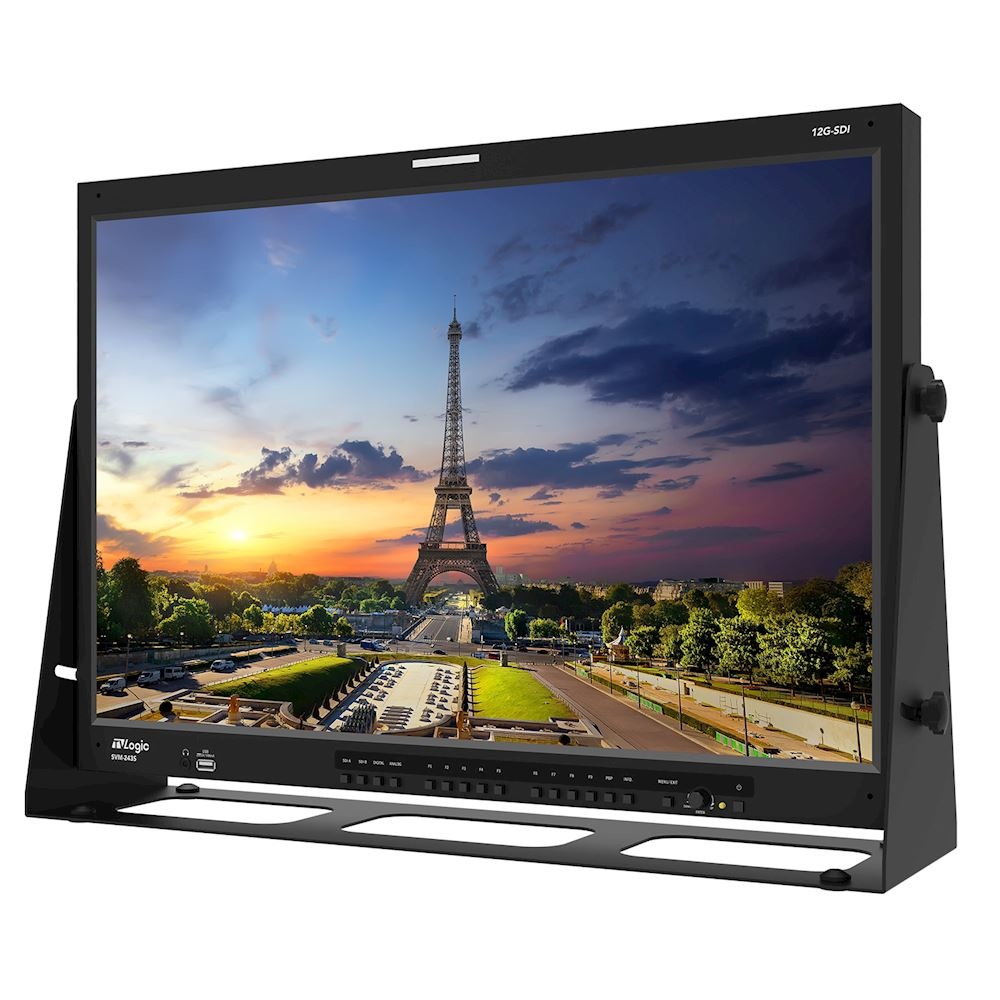

TVLogic SVM-243S 24" 12G-SDI Full HD LCD Monitor

Information

The SVM-243S is an 24” Full HD monitor that delivers precise image reproduction, high signal integrity, and robust support for 12G-SDI workflows, reflecting TVLogic’s continued commitment to cutting-edge broadcast monitoring solutions.

Product Highlights

• Display Resolution 1920 x 1080 or 1920 x 1200
• Wide Color Gamut (DCI-P3 Coverage 98%)*
• lObit {l.073 Billion) Colors*
• 2 x 12G-SDI Input and Loopout
• Dual SFP Input
• HDMI 1.4 Input
• Processed Monitor Output
• 12G-SDI Input to 3G-SDI Processed Output
• HDR (PQ, HLG, S-LOG3)
• Various Color Spaces (BT.709, DCI-P3, BT.2020, S-GAMUT3)
• Custom 3D LUT Import by USB Flash Drive
• Built-in Camera LUTs
• Auto Detection of SDI Payload ID
• Waveform (YCbCr, RGB)
• Vector Scope
• Histogram
• Audio Level Meter
• Audio Phase Meter
• Color Settings Save & Apply

*SVM-2435 only

LCD Panel

• Size: 24”
• Resolution: 1920 X 1200 (16: 10)
• Pixel Pitch: 0.270(H) x 0.270(V) mm
• Color Depth: 1.07B Colors
• Viewing Angle: 178°(H) / 178°(V)
• Brightness: 400cd/m2
• Contrast Ratio: 1800 : 1
• Display Area: 518(H) x 324(V) mm

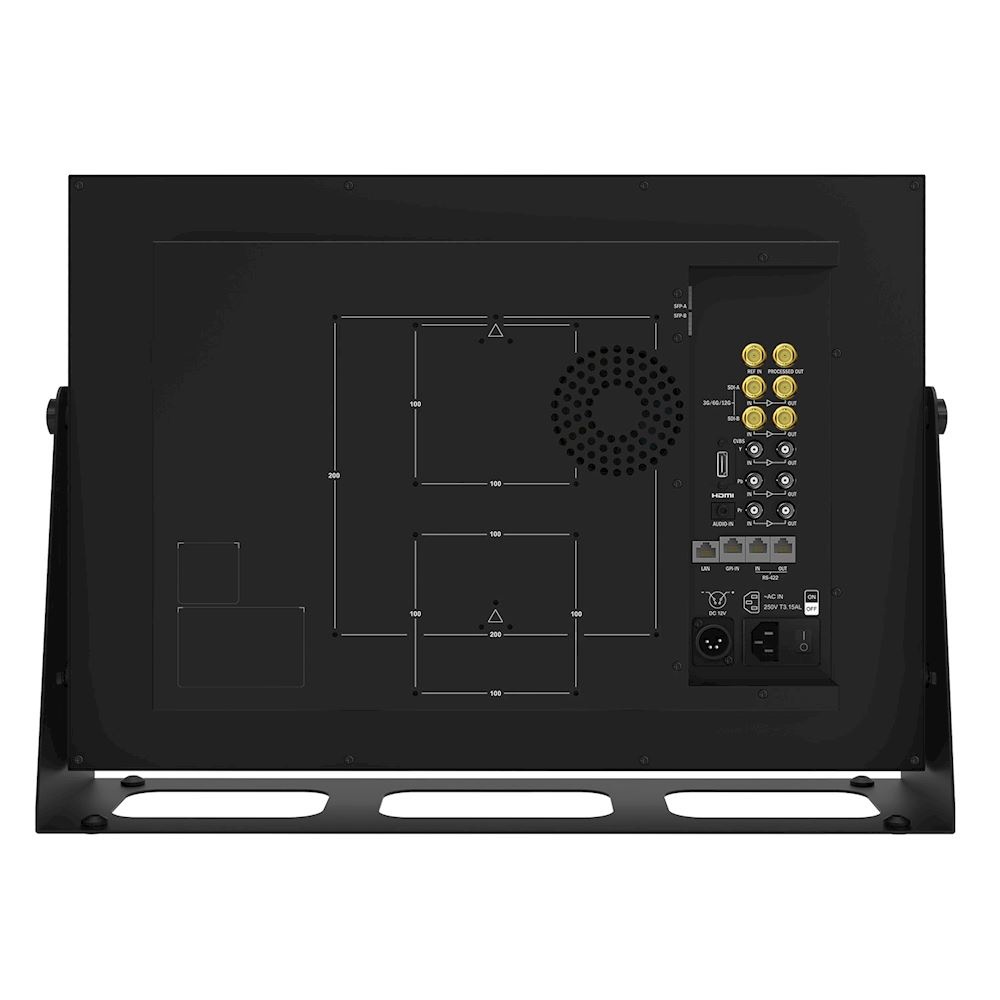

Input

• 2 x BNC: 12G/6G/3G/HD/SD-SDI A/B Input
• 3 x BNC: YPbPr, CVBS Input
• 1 x HDMI: HDMI Input
• 2 x SFP: SFP A/B Channel Input
• 1 x BNC: Reference Input

Output

• 2 x BNC: 12G/6G/3G/HD/SD-SDI A/B Channel Output
• 3 x BNC: YPbPr, CVBS Output
• 1 x BNC: Processed Output
