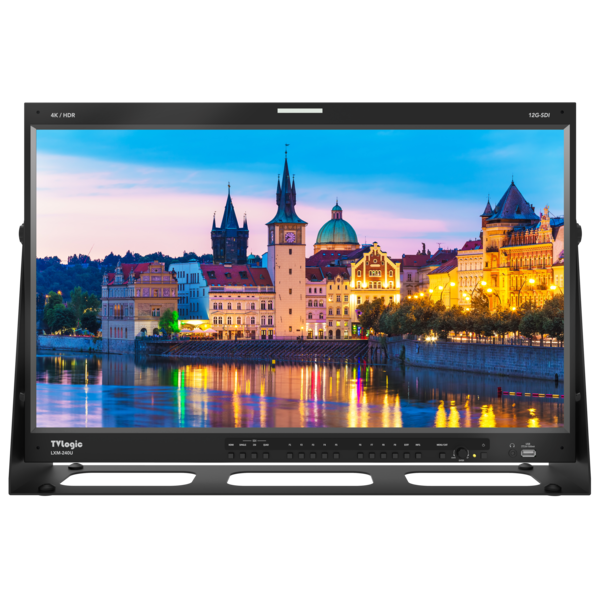

TVLogic LXM-240U 23.8" 4K/UHD HDR BroadMonitor

Information

The LXM series incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0 Input, SFP Input(x2) & Processed Monitor Output. These new 4K/UHD monitors feature wide viewing angle IPS panel, various HDR EOTFs, wide color gamut of DCI-P3 with 98% coverage, 10-bit color depth, and Accurate Color Reproduction by 3D LUT support. Additionally, the LXM series monitors offer the high-performance functions such as HDR-SDR Comparison, 12G-SDI Quad-View and Dual-View display, custom 3D LUT import, SFP to SDI conversion output, processed monitor output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and more. The LXM monitors are ideal for 4K live production, versatile monitoring in the studio and field location, edit suite and post-production.

Key Features

• 4 x 12G-SDI Input and Loopout
   3G-SDI Quad-Link Input and Loopout
   Reference Input
   Dual SFP Input
   HDMI 2.0 Input
   Quad-View & Dual-View Display
   Processed Monitor Output
   Various Conversion Output
   Quad Link 12G Input to Single Link 12G Output
   Firmware Update by Ethernet
   Display Resolution 3840 x 2160**
   Peak Luminance 1000nits*
   1.073 Billion Colors**
   HDR (PQ, HLG)
   HDR vs SDR Comparison
   Wide Color Gamut
   Custom 3D LUT Import by USB Flash Drive
   Auto Detection of SDI Payload ID
   Fast Mode
   Waveform, Vector Scope, Histogram
   Audio Phase Meter
  Closed Caption (CC-608, CC-708)
  • LXM-180U and LXM-240U: less than 1000nits
    • LXM-180U: 16.7M colors, 1920 x 1080
