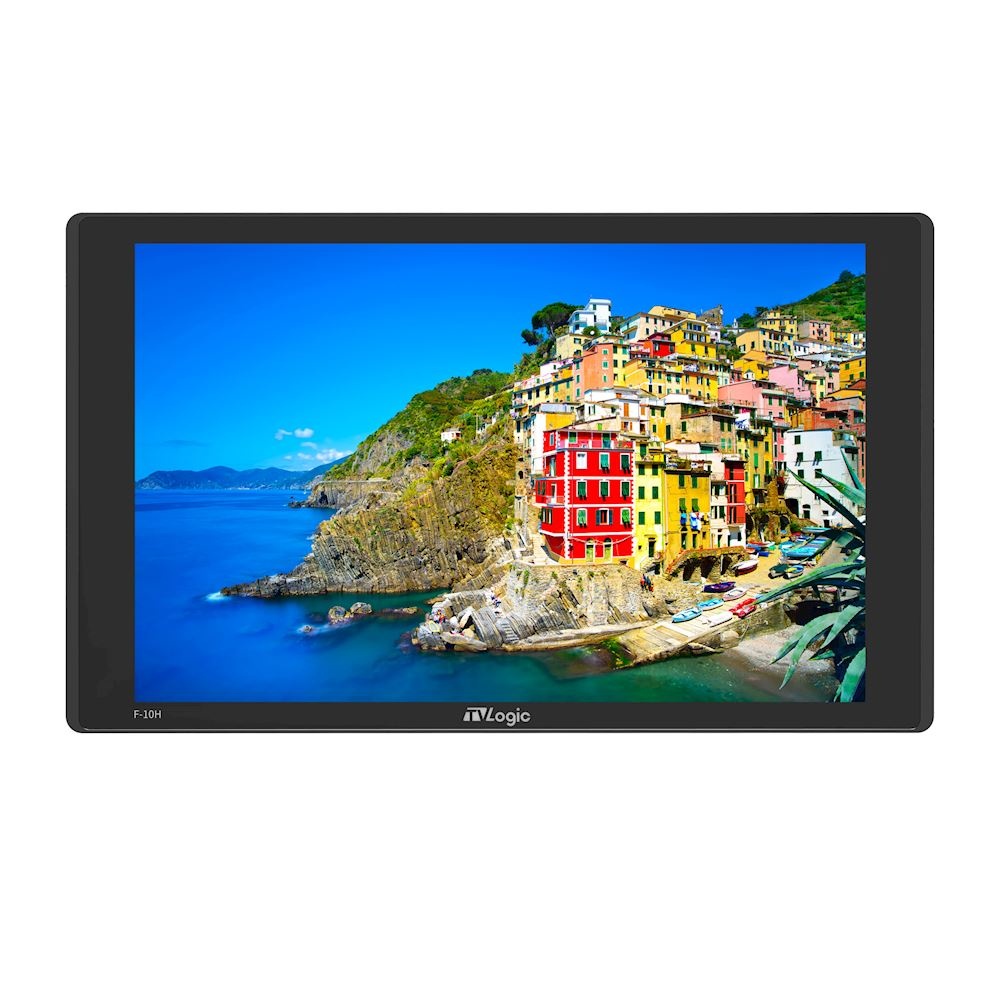

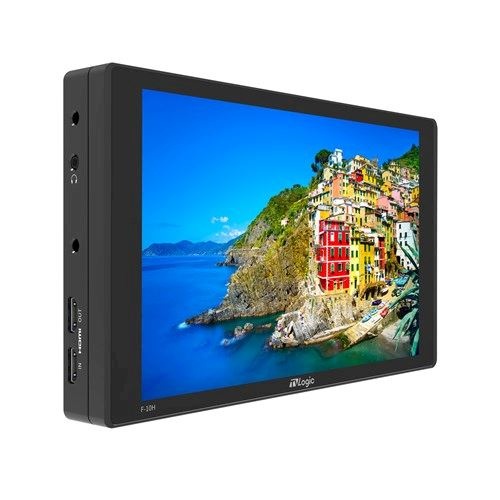

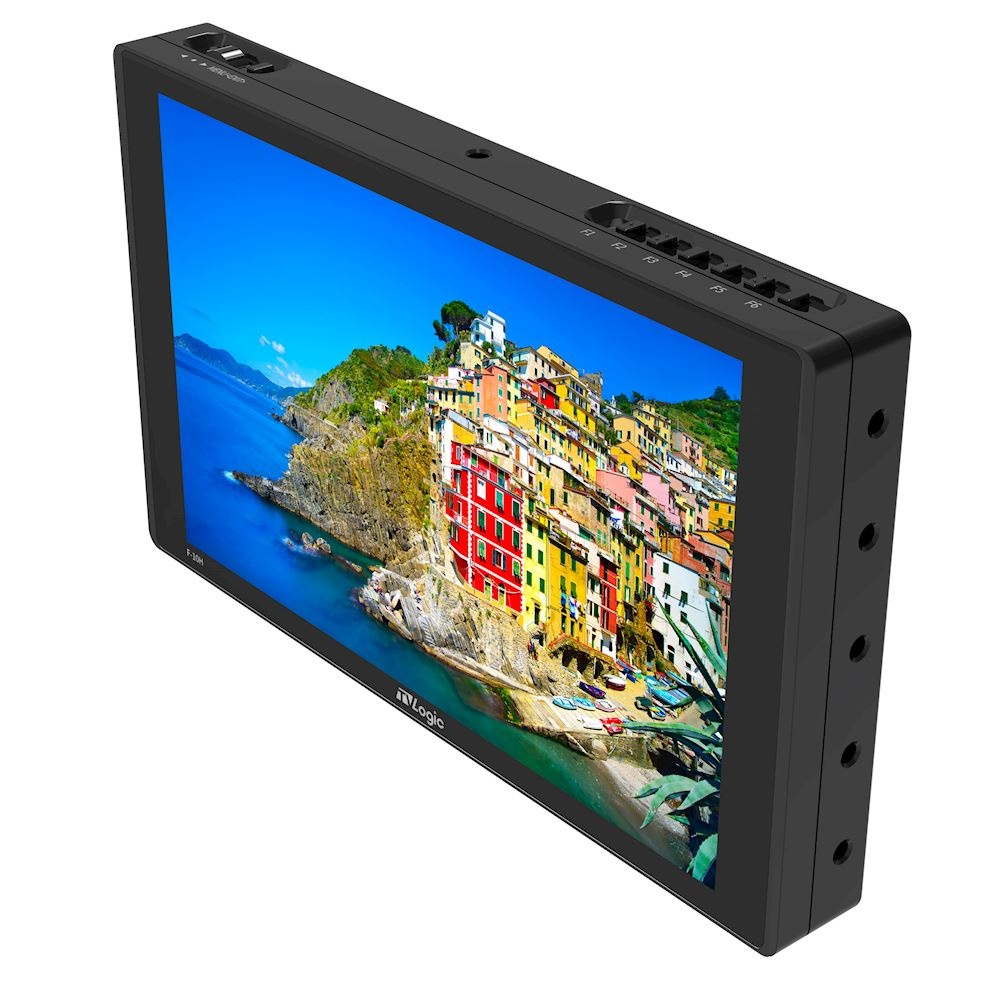

TVLogic F-10H 10" Field Monitor

Information

With 1400 nits of brightness, the F-10H is the latest 10” monitor in the rugged and reliable F-series.

This 10” Full HD display offers advanced features such as Sharpness and Peaking Boost, enhancing visibility and precision when evaluating light and color.

Product Highlights:
• 10”, Full HD Resolution (1920 x 1200)
• 4K Compatible
• Max Luminance 1400nits
• DCI-P3 Coverage 95%
• Tempered Glass Treatment
• HDR (PQ / HLG / Slog3)
• Camera LUTs (Log-C, C-Log, S-Log1/2/3,
Red Gamma3/4)
• Custom 3D-LUT Import
• Sharpness + Peaking Boost
• ARRI Metadata Display
• Scan / Anamorphic Desqueeze / Zoom / Split Zoom
• 3 x 3G SDI (1 x 3G SDI Selectable I/O)
• HDMI SDI Cross Conversion
• Luma(Y’) Zone Check (Zebra / Color)
• H/V Flip, Auto Flip
• Horizontal Meter
• Waveform / Vectorscope
• DC 12V ~ 34V

Panel:

• Size 10,1”
• Resolution 1920 x 1200 (16:10)
• Pixel Pitch 0,1128(H) x 0,1128(V) mm
• Color Depth 16.7M Colors (8 bit)
• Viewing Angle 170°(H) / 170°(V)
• Brightness 1400cd/m2
• Contrast Ratio 1100 : 1
• Display Area 216.58(H) x 135.36(V) mm

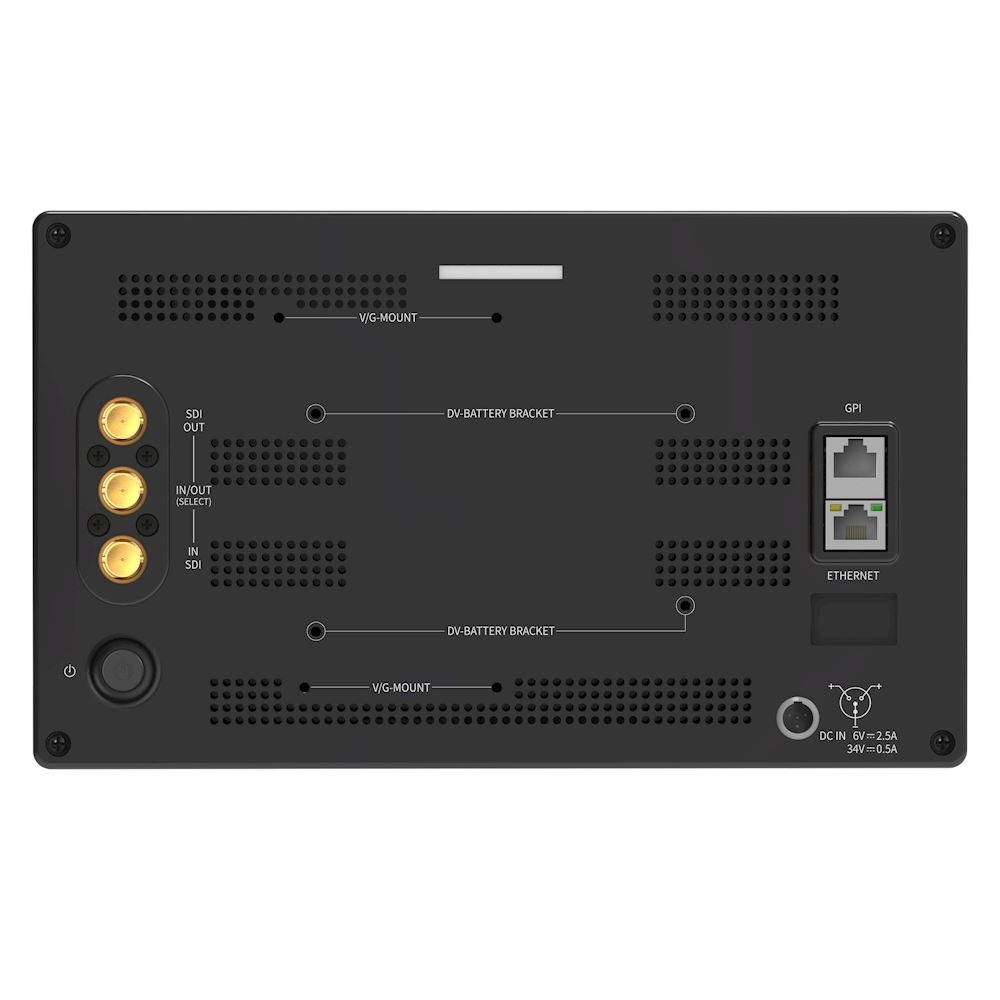

Input:

• SDI: 1 x 3G-SDI Input
• 1 x 3G-SDI In/Out Selectable
• HDMI 1 x HDMI 2.0 Input

Output:

• 1 x 3G-SDI Output
• (SDI-to-HDMI Conversion Output)
