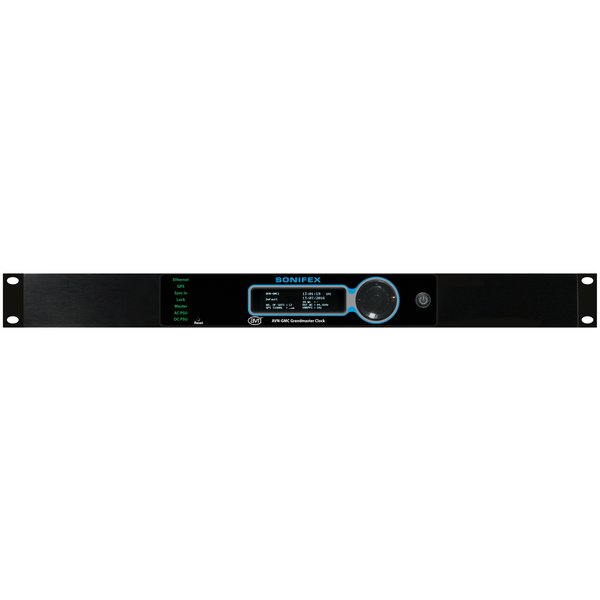

Sonifex AVN-GMCS IEEE1588 PTP Grandmaster Clock with GPS Receiver

2.129,60 Incl. tax€1.760,00 Excl. tax Out of stock, check delivery time
Create a login. We check your details and give you access to your personal discount levels. Crosspoint is the exclusive distributor of Sonifex for Belgium and Luxembourg. View other audio over ip items in our webshop. Read more
  • ECO friendly webshop
  • Personal advice
  • 25 years of experience
  • Over 4.000 products
  • Secure payment
  • Register and discover your discounts

Specifications

Brand:
Sonifex
Availability:
Out of stock, check delivery time
Delivery time:
1 week

Information

AVN-GMCS – TCXO Temperature Compensated Oscillator accurate to 1 part per million (worst case 1 sec gain/loss every 11.5 days). *

The AVN-GMCS is a PTPv2 grandmaster clock for use with AoIP applications. IEEE1588-2008 PTPv2 (precision time protocol) is used to synchronise all the nodes within a network. To achieve this one of the nodes must become the master clock and distribute time packets to the others. The AVN-GMCS is designed to perform this role simply and accurately, enabling sub micro second synchronisation between all nodes.

Product Function: Provides a PTP time synchronised clock for use with AoIP audio networks.
Typical Applications: Synchronise a PTP AoIP network, provide a GPS referenced signal via AES-3id, provide a master wordclock studio output or distribute a PPS reference frequency to T&M equipment.

Features:

  • AES67/RAVENNA/AES-R16 compatible.
  • GPS satellites received indicator.
  • Master and slave sync modes.
  • 8ns PTPv2 time stamping resolution.
  • Holdover drift <1ppm, with options for <0.01ppm & <0.0005ppm.

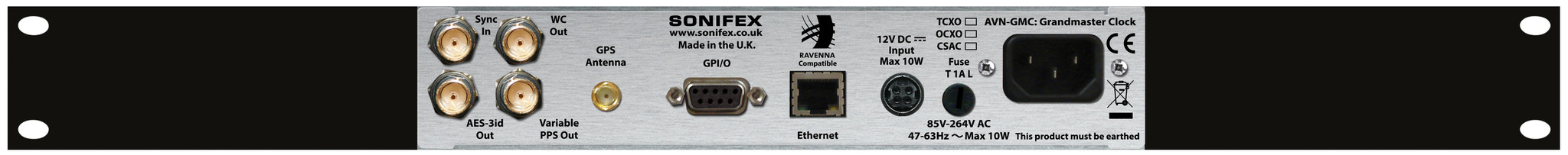

  • AES-3id, wordclock & variable PPS outputs.
  • Analogue master input.
  • Dual power supply inputs.

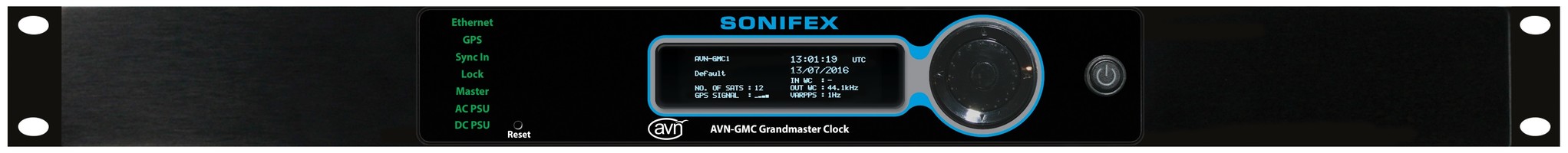

  • Front panel display.
  • GPS sync and power supply present LED indicators.
  • Real time clock for accurate date/time.
  • Responsive design Ethernet webserver and front panel control & configuration.
