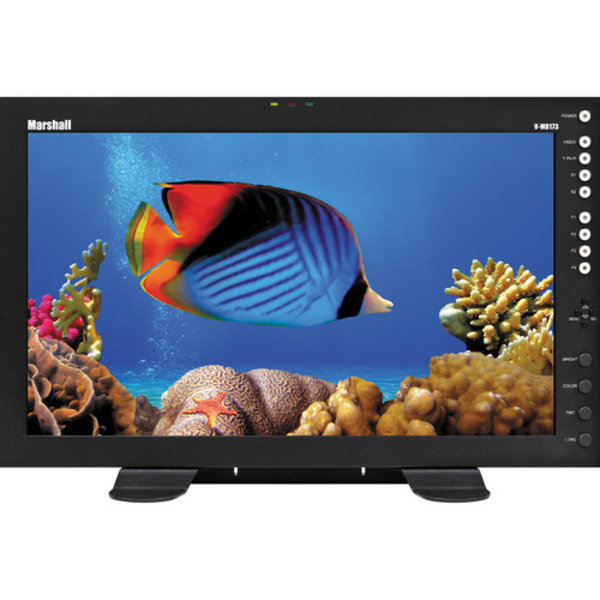

Marshall V-MD173-DT / 17.3" Modular Design Monitor Desktop Stand

Information

17.3" Modular Design Monitor Rack Mount Monitor with Composite and Component inputs, Desktop stand

Features:

Status Display • False Color Filter • Freeze Function • Hard Tally • Color Temperature Presets • RGB Gain / Bias Adjust • Pixel-to-Pixel • Blue Gun • User-definable function buttons • Network Control • Composite and Component loop-through • User-changeable input modules

The V-MD173 is part of Marshall Electronics' extensive MD series of rack mount monitors. MD Series monitors offer a flexible modular solution to system integration. These rack-mountable monitors can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements. This eliminates the need to upgrade or replace equipment when a different input or application is required. This "future proof" solution provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

The V-MD173 can be mounted in any standard EIA 19" equipment rack. The attached rack ears can be angled to provide the user control over the viewing angle. A VESA standard 75mm hole pattern also allows custom mounting installations. Alternately, the V-MD173 can be used in a desktop configuration with optional stand (Marshall part number V-ST15).

Optional Input Modules (Type A modules)

MD-3GE - Single 3G-SDI Input with loop-through (SDI/HD SDI compatible)
MD-HDSDIx2-A - Two-channel HD-SDI Input Module with switched output
MD-HDIx2-A - Two-channel HDMI Input Module
MD-DVII-A - DVI-I Input Module
MD-TC-A - One or Two Optical Inputs and/or Outputs (Specify Configuration When Ordering)
