Marshall ML-503 Triple 5" 1920X1080 LCD 2RU Rack Mount Monitor
- ECO friendly webshop
- Personal advice
- 25 years of experience
- Over 4.000 products
- Secure payment
- Register and discover your discounts
Specifications
Information
The Marshall ML-503 triple 5" Screens LCD Display is a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms and countless other video system applications. Looping video inputs set this product apart from similar-looking products. With the ML-503, you are not limited to the single SDI connector you may find on competitor models. Standard power and tally connections as well as a logical menu structure make this display an easy choice for flexible system designs.
Triple Full HD Screens
Three High-Definition screens with excellent color rendition and stability. Adjustable back light compensates for different viewing environments.
On-Screen 3 Color Tallies
Easily visible border tallies provide instantaneous process control feedback to the operator
Great Off-Axis Performance
Excellent angle of viewing allows the user to position the rack in any number of physical locations.
Features:
- Three screens, great picture, great price
- Wide aspect, 5-inch diagonal x 3
- Perfect for flypacks, control rooms, news vans
- Front panel controls give access to all functions
- Three color on-screen tally lights (Red, Green, Yellow)
- Multiple inputs, all with loop-through connections: 3GSDI (HDSDI, SDI), HDMI
- Safe area and center markers
- Two user short-cut function buttons

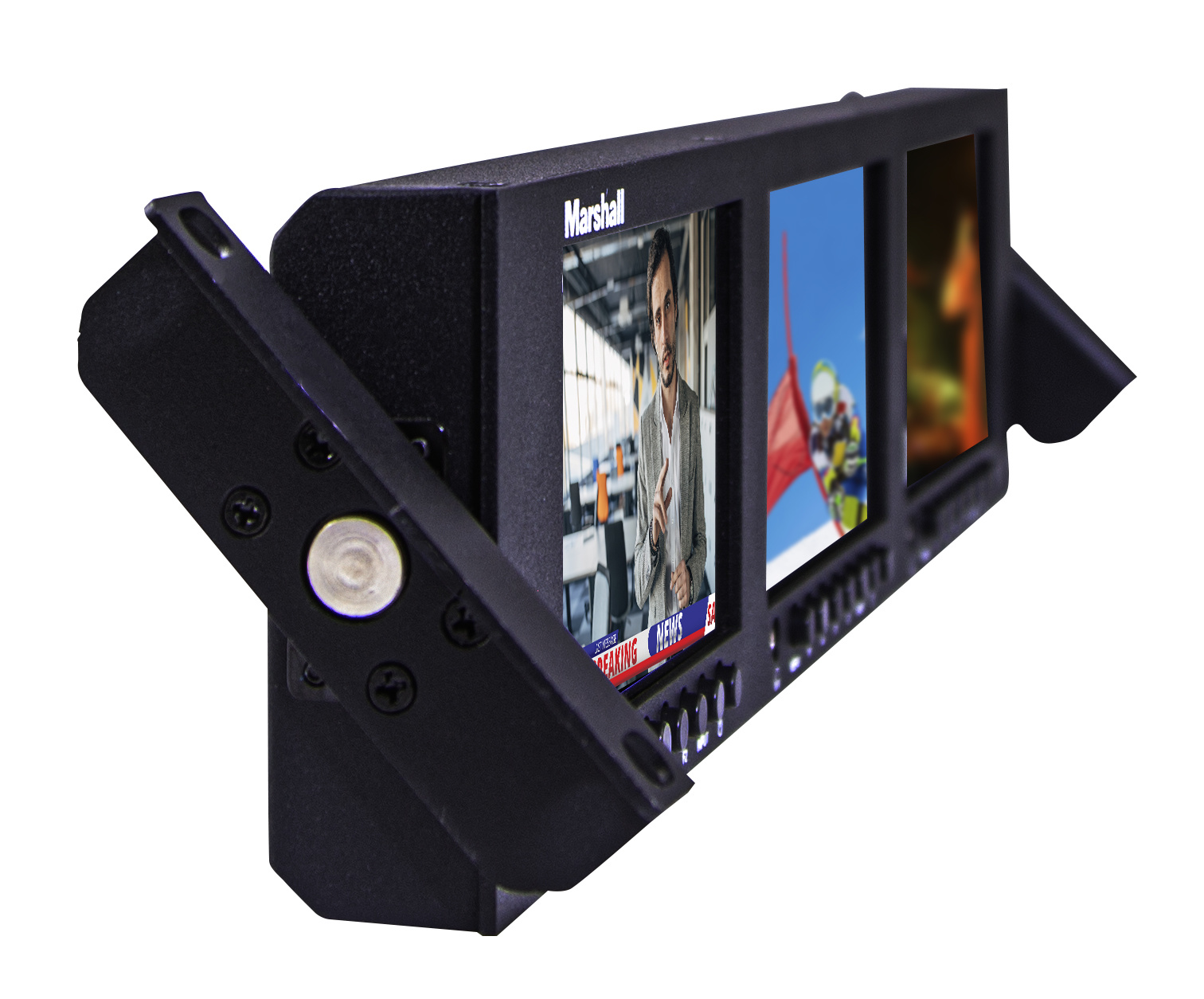

- Tilting mount. Adjust for optimum viewing and back panel access
- Headphone jack to monitor embedded stereo audio
- Firmware update via USB port and thumb drive
