Marshall CV504-WP IP67 Weatherproof Mini Broadcast Camera with 4.0mm Interchangeable Lens – 3G-SDI Output (New Sensor)

Information

Key Features

• Ultra-compact, IP67 water and dust resistant camera
• M12 interchangeable lens mount
• 4.0mm M12 lens included
• 3G-SDI video output connector
• New Sony 1/2.8″ 2.2 megapixel sensor
• Night mode for extreme low-light situations (0.005Lux)
• 1920×1080 up-to 60P
• Integrated 10′ I/O breakout cable with control joystick

Product Overview
Built with the new Sony 1/2.8″ Solid-State sensors, the CV504-WP is able to provide clear HD video with 10-bit colour even in low-light conditions down to 0.01Lux. The CV504-WP can also compete even in complete darkness with its night mode, enabling capture of IR wavelengths to get a clear picture in environments as little as 0.005Lux.

Marshall CV504-WP Weatherproof Miniature HD Camera is the professional solution for capturing crisp video in true colour at outdoor broadcast events and AV applications where weather is a factor. The CV504-WP offers interchangeable lenses, remote adjustable settings and protection from the elements in a compact IP67-rated housing.

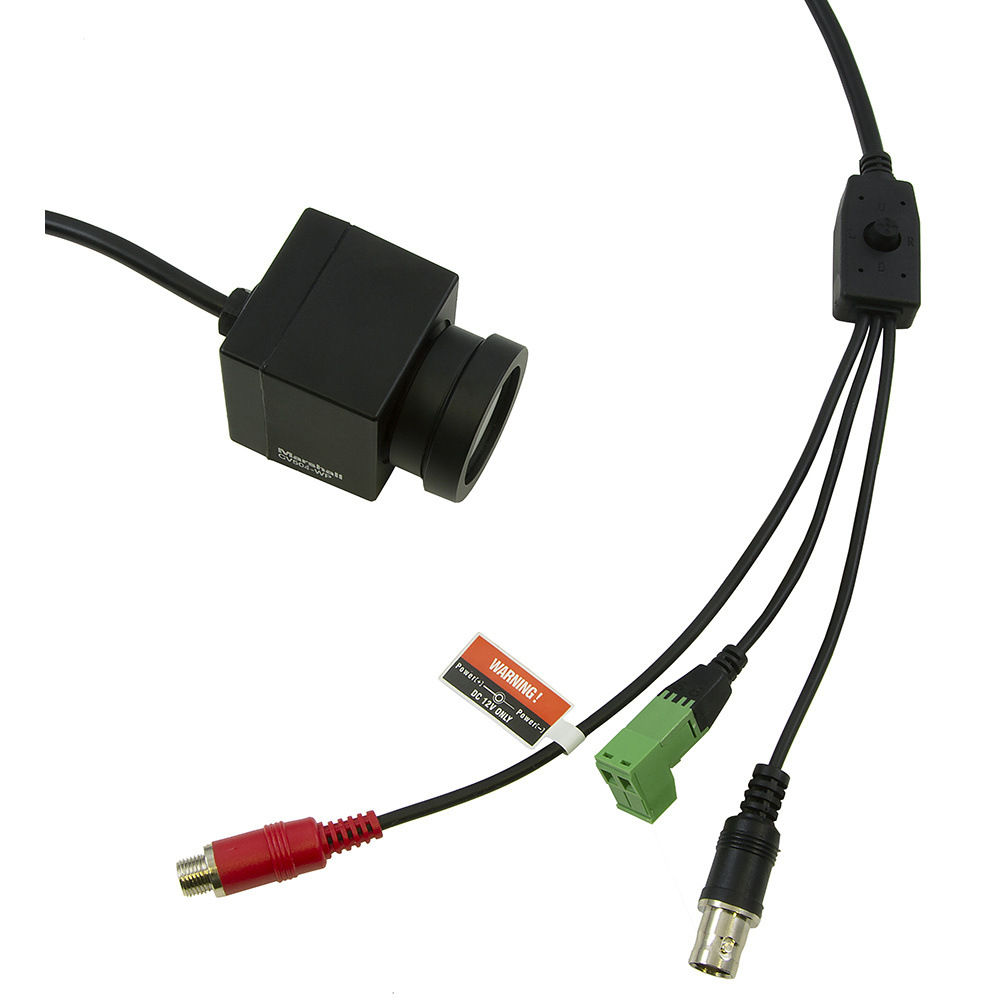

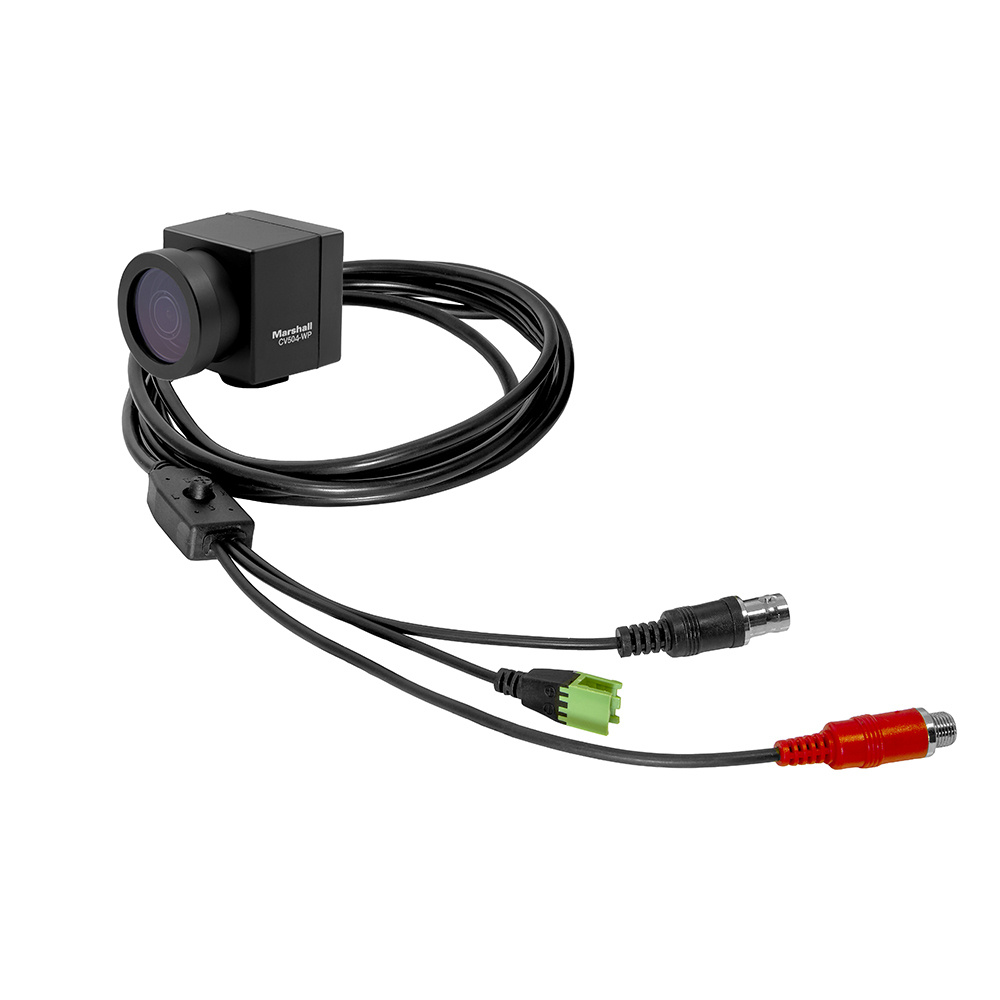

The CV504-WP utilises a flexible 10′ (3m) weatherproof cable that carries video, control and power to a full-sized 3G/HD-SDI (BNC) output, RS485 connection and locking 12V power connector.

The CV504-WP can capture detailed shots from impossible angles, while maintaining an ultra-discreet presence. Remote adjustment of a wide range of picture settings including white balance, red/blue, exposure, gain control, pedestal (blacks), white clip, gamma and more are delivered via common RS485 (Visca) or OSD menu joystick.
