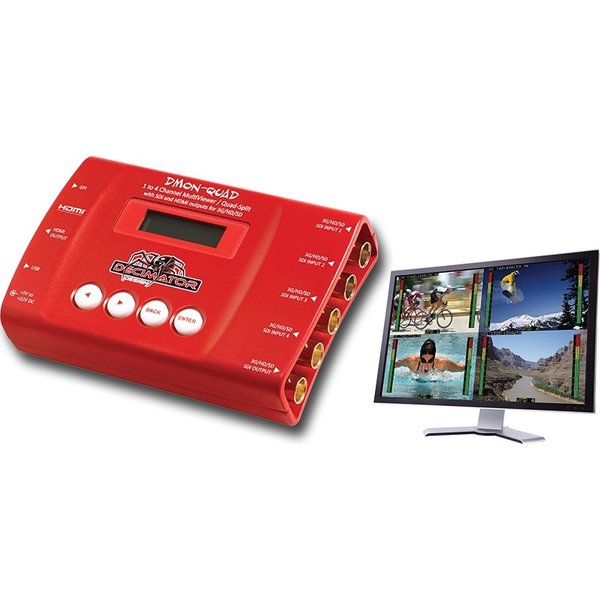

Decimator DMON-QUAD 4 x (3G/HD/SD)-SDI to HDMI

393,25 Incl. tax€325,00 Excl. tax Out of stock, check delivery time
Create a login. We check your details and give you access to your personal discount levels. Crosspoint is happy to give you personal advice based on more than 25 years of experience. View other multiviewing items in our webshop. Read more
  • ECO friendly webshop
  • Personal advice
  • 25 years of experience
  • Over 4.000 products
  • Secure payment
  • Register and discover your discounts

Specifications

Brand:
Decimator
Availability:
Out of stock, check delivery time
Delivery time:
Upon request

Information

4 x (3G/HD/SD)-SDI to HDMI Converters with 1 to 4 MultiViewer, Custom Layouts and 8 Channel Audio Meters

Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B

Low cost (3G/HD/SD)-SDI 1 to 4 Multi-Viewer or 4 to 1 input multiplexer

Custom Layouts with various standard layouts

16 Character UMD overlay per window with individual enables, custom positioning and size

8 Channel Audio Metering overlay per window with individual enables, custom positioning and size

Horizontal and/or Vertical image flipping per window

Audio ID overlay

Tallies can be applied to either Tally Boxes (Default) or Border

Tally boxes allows for up to 4 Tallies per window

Fast switching between inputs using Full-Screen scaling

Selectable output format in both Full-Screen Multi-Viewer mode

Low latency buffering for each input allowing non-synchronous inputs

Linked (3G/HD/SD)-SDI and HDMI outputs

4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)

Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously

Variable aspect ratios per window

In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs

The DMON-QUAD is a truly portable converter, that incorporates our easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

This unit also includes:

  • GPI on RJ-45 connector for Tallies and Remote Switching
  • RS422/485 on RJ-45 connector for Dynamic UMD and Tallies
  • USB port for control and firmware updates
  • Robust Aluminium box
  • Metal Thread Locking DC Power Socket
  • Power Supply, HDMI Cable and USB Cable
