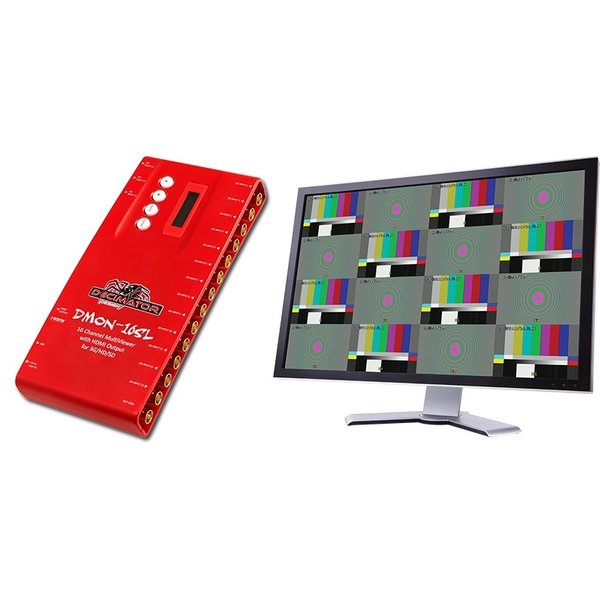

Decimator DMON-16SL HDMI output for 3G/HD/SD
€1.058,75 Incl. tax€875,00 Excl. tax
Out of stock, check delivery time
Create a login. We check your details and give you access to your personal discount levels. Crosspoint is happy to give you personal advice based on more than 25 years of experience. View other multiviewing items in our webshop. Read more
- ECO friendly webshop
- Personal advice
- 25 years of experience
- Over 4.000 products
- Secure payment
- Register and discover your discounts
Specifications
Brand:
Decimator
Availability:
Out of stock, check delivery time
Delivery time:
Upon request
Information
1 to 16 Channel MultiViewer
with HDMI output for 3G/HD/SD
and Custom Layouts
Support for both 3G level A and B on the inputs.
Low cost miniature (3G/HD/SD)-SDI 1 to 16 channel Multi-Viewer
Custom Layouts with various standard layouts
16 Character UMD overlay per window with individual enables, custom positioning and size
Audio ID overlay
Load and restore Custom Layouts
Fast switching between inputs using Full-Screen scaling
Selectable output format in both Full-Screen and Multi-Viewer mode
Low latency buffering for each input allowing non-synchronous inputs
16 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
Variable aspect ratios per window
Pass-Through mode allowing any of the 16 inputs to be selected and routed to the the HDMI output
In Pass-Through mode the selected input is passed through to the HDMI output
The DMON-16SL is a truly portable converter, that incorporates our new easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.
This unit also includes:
- USB port for control and firmware updates
- Heavy duty metal box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
