Decimator 12G-CROSS

€665,50 Incl. tax€550,00 Excl. tax Out of stock, contact us

ECO friendly webshop
Personal advice
30 years of experience
Over 4.000 products
Secure payment
Register and discover your discount levels

Specifications

Brand:

Decimator

SKU:

12G-CROSS

Availability:

Out of stock, contact us

Expected delivery time:

Upon request

Information

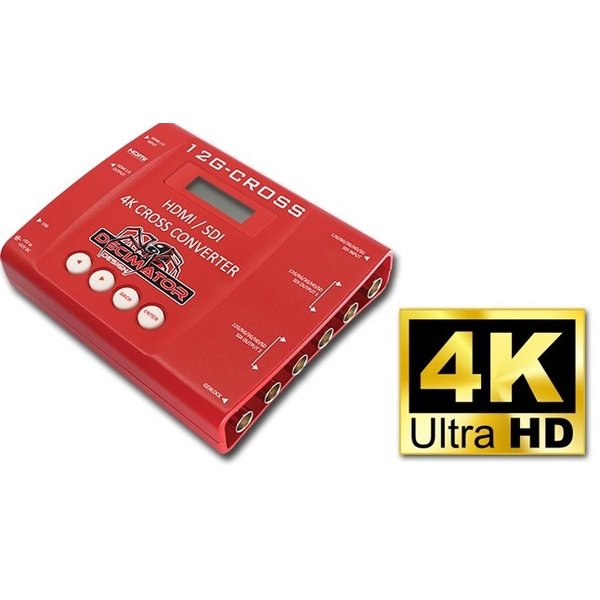

The 12G-CROSS is a small (4.2" x 5.1" x 1.2") low power portable converter encased in a solid robust aluminium case and does not contain a noisy fan. Allowing it to be used in almost any environment.

Allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 4K scaling engine.

The 4K scaling engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping and can be locked to either the SDI, HDMI or Genlock input.

The 4K scaling engine can scale and/or frame rate convert between any of the following 57 formats:

(3840 or 4096) x 2160p50/59.94/60 via HDMI or 12G-SDI
(3840 or 4096) x 2160p30/29.97/25/24/23.98 via HDMI or 6G-SDI
(1920 or 2048) x 1080p50/59.94/60 via HDMI or 3G-SDI (Level A or B)
1920 x 1080i60/59.94/50 via HDMI or HD-SDI
(1920 or 2048) x 1080p30/29.97/25/24/23.98 via HDMI or HD-SDI
(1920 or 2048) x 1080psf30/29.97/25/24/23.98 via HD-SDI
1280 x 720p60/59.94/50/30/29.97/25 via HDMI or HD-SDI
1280 x 720p24/23.98 via HD-SDI
720 x 480p59.94 or 720 x 576p50 via HDMI
720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI

That is an amazing 3249 possible format conversions!

The audio pairs in the SDI and HDMI outputs can be rearranged as required.

Includes 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier.

The 12G-CROSS is a truly portable product that incorporates an easy-to-use LCD screen and button control system. This gives easy access to the outstanding features without using complicated LED/button controls, dip switches, or having to carry around a computer to change a simple setting.

As well as the existing wide ranging video conversion support for over 20,000 SMPTE and VESA video formats, the 12G Cross now offers a professional 12G/6G/3G/HD/SD Test Pattern Generator with 57 selectable output formats and 58 test patterns including Luma and Chroma Zone-Plates.

The 12G Cross can now be used as a format/standards converter as well as a standalone 4K Test Pattern Generator.

To download the new update, please download it here:

https://decimator.com/DOWNLOADS/DOWNLOADS.html

This unit also includes:

USB port for control and firmware updates
Metal Thread Locking DC Power Socket
Power Supply and USB Cable
