Datavideo TLM-170FR 4K Scopeview Monitor UHD (HDPanel)

Information

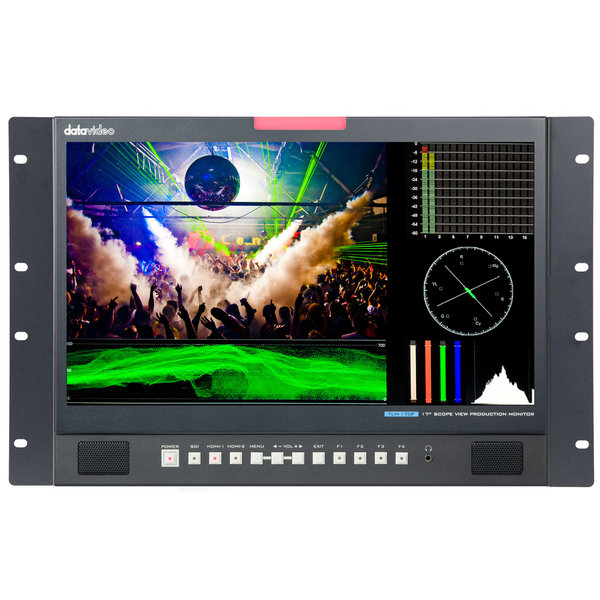

TLM-170FR 17” ScopeView Production Monitor-Rack Mount

The TLM-170FR is a rack mount 17-inch 4K UHD LCD monitor which includes a Full HD 1920 x 1080px IPS panel.  The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and 700:1 contrast ratio.  The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output.

 The TLM-170F series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false color, histogram, peaking, zoom, screen markers, image flip, and more.  Moreover,  it also supports HDR for HLG and SMPTE 2084, and the presets of color space include Rec 709 and DCI P3.  The TLM-170F series are ideal for broadcast and live production applications.

17.3'' 4K UHD Rack Mount Monitor

Supports DCI P3 color space 4K/60p and UHD 4K/60p video input and output

Rich and Natural Color High Brightness and Contrast

The TLM-170FR series apply superior Full HD 1920 x 1080px IPS panel.  The high brightness and high contrast panel provides rich color, revealing subtle detail in bright highlights and dark shadow.

Supports Multiple Input and Output Configurations

1 x 12G-SDI, 2 x HDMI (HDMI 2.0) inputs;

1 x 12G-SDI loop-through, 1 x HDMI (HDMI 2.0) loop-through

Various Built-In Functions

Support column (YRGB peak), time code, waveform, vector scope, audio vector, focus peaking, zoom, pixel to pixel, exposure, histogram, image flip, camera log, HDR / SDR, and more.

Tally Light

Tally light included. Best use for live production.

What's in the Box?

• 1 x TLM-170FR product
• 1 x AD Switch DC 12V
• 1 x Monitor Stand
• 2 x Velcro
