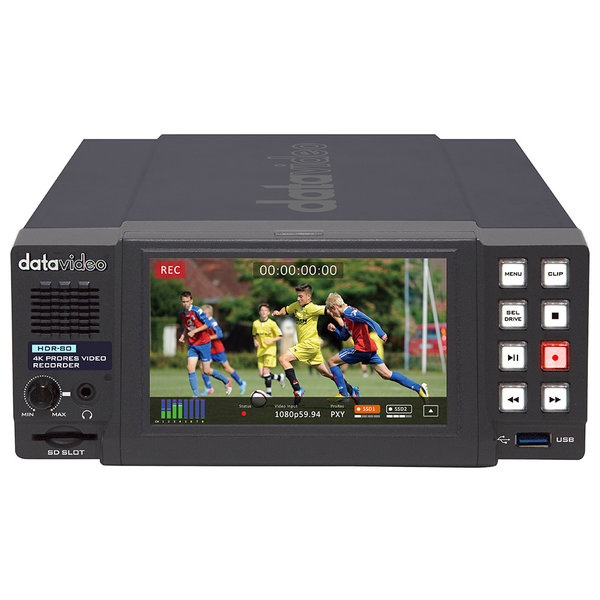

Datavideo HDR-80 4K ProRes Video Recorder- Desktop

Information

ProRes 4K Video Recorder-Desktop

HDR-80 is a ProRes 4K recorders that record video on two SSD hard drives.  It is a desk top model meant to be used on a table top. The recorder has a high resolution 5” LCD touch screen on the front for video monitoring, device settings and configuration.

HDR-80 is able to record video in resolutions up to 2160p 60 using the available SDI and HDMI interfaces at the back. SDI is available in bitrates all the way from HD up to 12G-SDI while HDMI connections support both HDMI 2.0 and 1.4 technology. With multiple HDMI and SDI inputs you can also record up to four 1080p sources at the same time.

Dual SSD drives ensure sufficient storage for long duration recording. As one disk fills up, the recording automatically continue on the next disk. It’s easy to expand video storage by swapping a single disk.

Supports Multiple Inputs and Output Configurations

Supports one 4K HDMI input, one 12G SDI input, and three 3G-SDI input as well as video outputs with embedded audio.  Audio input can be embedded into the video for output playback thus making HDR-80 the device for live event broadcast.

A Recorder Designed for a Multi-Camera Production Environment

The HDR-80 4K ProRes Recorder is a identical recorder in two different form factors. Datavideo brings professional ProRes recording and other professional features to a cost-effective price level.

Easy post-edit and playback

Compressed videos are saved on two 2.5" SSD D. If one disk is full, the recording will automatically continue on the second disk. It’s easy to expand storage for continuous recording.

4K Recording & Compressed in 10-Bit 4:2:2 ProRes

The 4K recorders use a 10-bit ProRes 422 compressed codec for recording UHD 4K videos. Apple ProRes, a codec technology developed for high-quality, high-performance editing in Final Cut Pro X, is one of the most popular codecs in professional post-production.

The recorder has a high resolution 5” LCD touch screen on the front for video monitoring, device settings, and configuration. The monitor also provides a complete suite of scopes and calibration tools such as waveform, vectorscope, focus peaking to ensure perfect recording.

4 Channels Recording and Operated Like a Video Switcher

Not just for a single-camera setup, HDR-80 can record up to four 1080p60 streams simultaneously to separate ProRes files. All files are synced with the same time code, making it easy for tracking during post-production.

The HDR-80 is not only a ISO recorder, it can also be used as a four channel HD video switcher. Display all four sources in quadview, you can cue and simply tap the touch screen to switch seamlessly between cameras. PGM output can even be used for live streaming.

Three Input Setups

The three input setups are designed for 3G ISO recording and HD replay.

Closed Caption

With closed caption support, embedded captions on SDI inputs can be encoded as metadata in recorded .mov files.

What's in the box?

• 1 x HDR-80 Main Unit
• 1 x Adaptor + AC Cord
• 2 x 2.5” Removable HDD/SSD Enclosure
• 8 x Screws for 2.5 Removable HDD/SSD Enclosure
• 2 x Blank Label
• 1 x SATA to USB Cable
