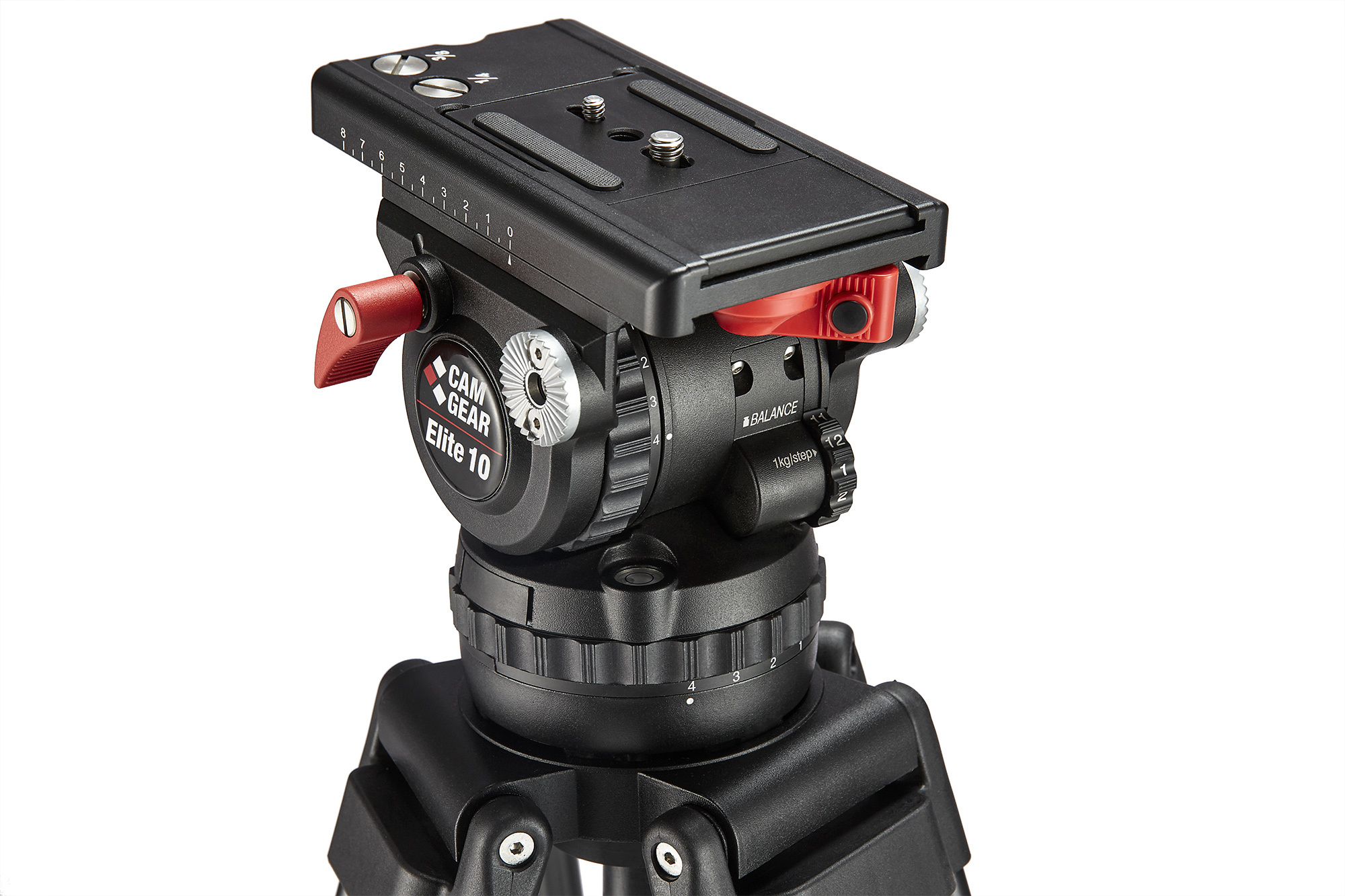

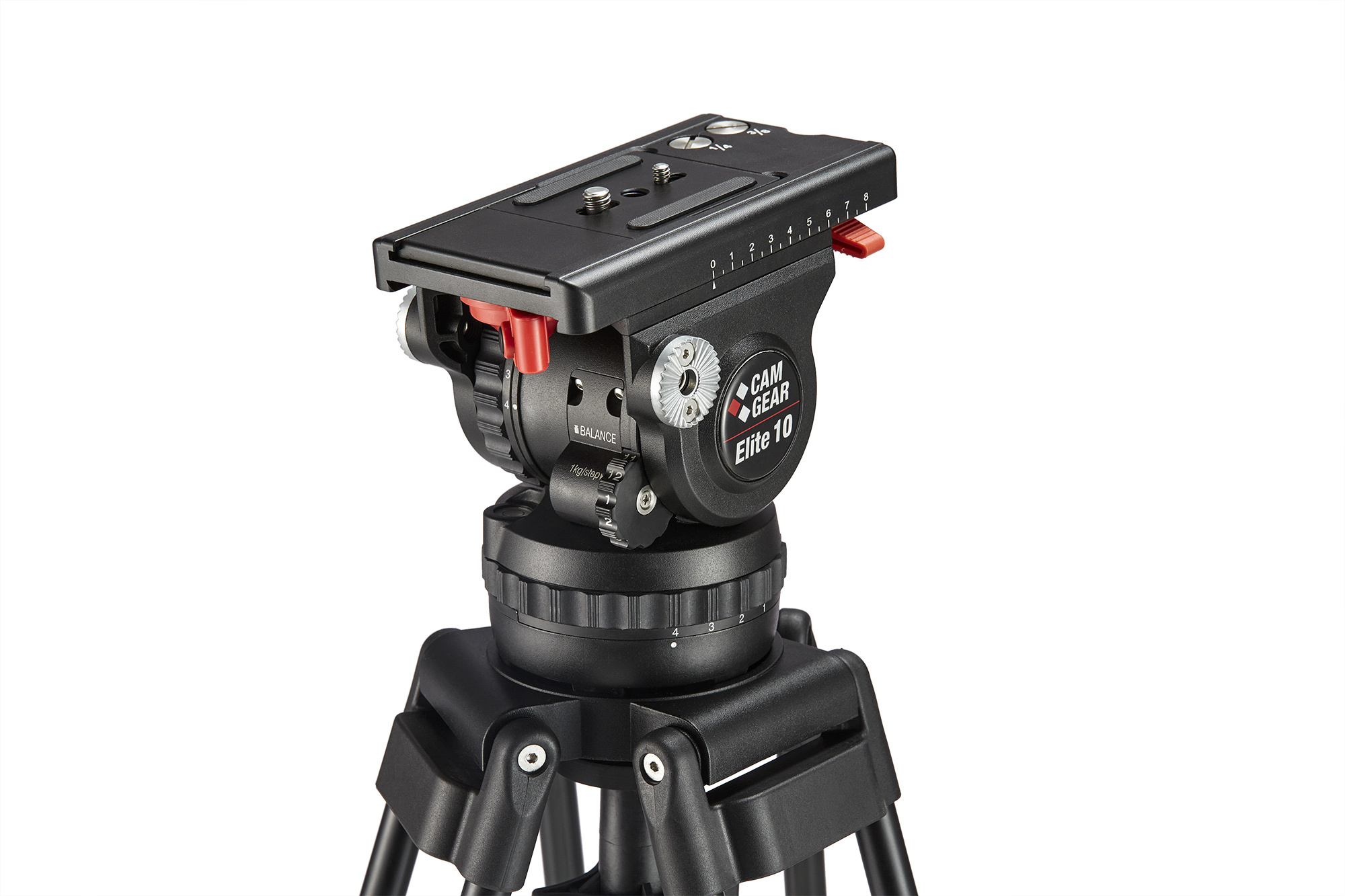

Camgear Elite 10 Fluid Head (100mm Bowl)

Information

Fluid Head incl. Elite Wedge Plate TNG-16, Bowl Clamp BC-2 & Elite Pan Bar ELPB-1

The Elite 10 fluid head is engineered for set-ups of up to 12 kg/26.4 lbs. The 12 step counterbalance wheel adjustment system enables finer and faster counterbalance settings for virtual perfect balance. The camera can easily be switched from tripod to handheld and vice versa using the quick release lever,
allowing the camera and plate to release in one swift sure movement. Perfect support for today’s digital cinema-style cameras, such as the Sony PXW-FS7, Canon EOS C200/C300/C300 MARK II, Blackmagic URSA Mini Pro & Panasonic AU-EVA1.

The Elite 10 tripod systems come with the matching patented Elite 3S-FIX Quick Lock & Release 100 mm 50 kg/110 lbs capacity tripod, illuminated levelling bubble with sliding plate screw parking positions and the integrated screw key to make your operation run smoothly.

Specifications:

• Maximum Payload 12 kg/26.5 lbs
• Camera Platform Type Elite Wedge Plate TNG-16
• Sliding Range 80 mm/3.15 in
• Camera Plate 1/4” screw, 3/8" screw
• Counterbalance System 12 steps (1-12)
• Specifications
• Pan & Tilt Drag 4 steps (1-4)
• Pan & Tilt Range Pan: 360° / Tilt: +90/-75°
• Temperature Range -40°C to +60°C/-40 to +144°F
• Levelling Bubble Illuminated Touch Levelling Bubble
• Weight 3.3 kg/7.28 lbs
• Bowl Diameter 100 mm
