Blackmagic design Videohub Master Control Pro

Information

When you need to access your whole router without sacrificing speed, then Videohub Master Control Pro lets you scroll your router sources and destinations with the easy to use spin knob control or via direct button entry. You can even see all routes on the beautiful LCD! Powers via DC or the Ethernet connection!

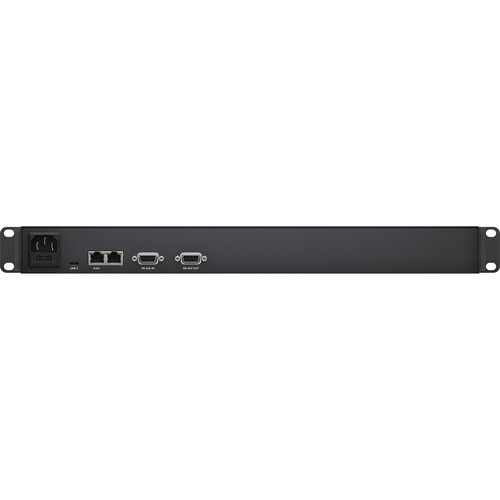

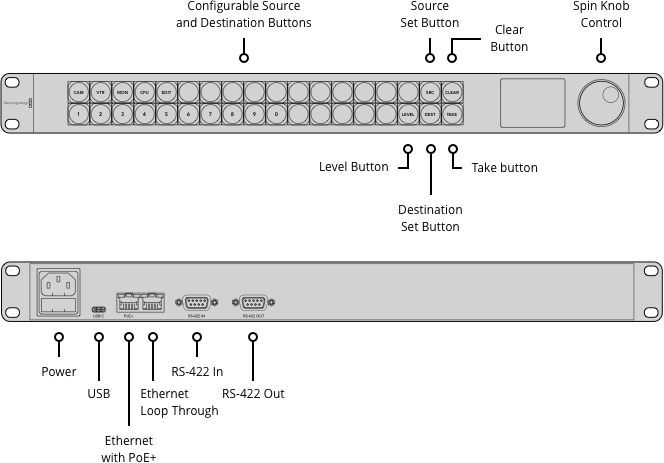

Connections

Ethernet

RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.

RS-422

In and Out (for future implementation)

Computer Interface

USB-C for configuration and software updates.

Power

100 - 240 AC

Hardware Control

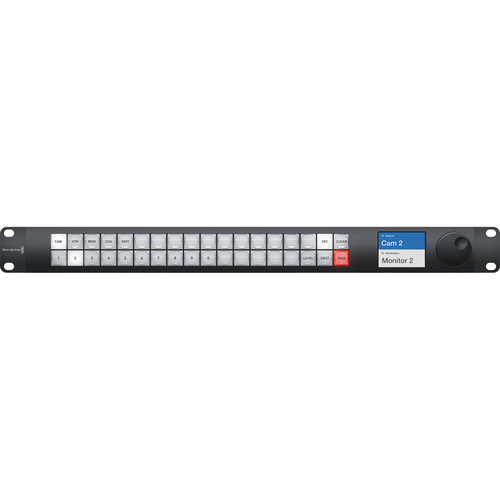

21 assignable buttons with scroll wheel for fast selection of source and destination. LCD information screen.

Internal Software

Internal Software upgrade via included firmware updater application via USB or ethernet.

Operating Systems

Mac 10.15 Catalina.

Mac 11.1 Big Sur or later

Windows 10, 64-bit.

Physical Installation

1 rack unit size. Less than 3 inches deep.

Button Configuration

Included free for Windows™ and Mac™ via USB 2.0high speed (480Mb/s) interface.

Power Requirements

Power Fail Requirements

Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.

Power Supply

Internal 100 - 240 V AC

Physical Specifications

Environmental Specifications

Operating temperature

0° to 40° C (32° to 104° F)

Storage temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

Videohub Master Control Pro

Warranty

12 Months Limited Warranty.
