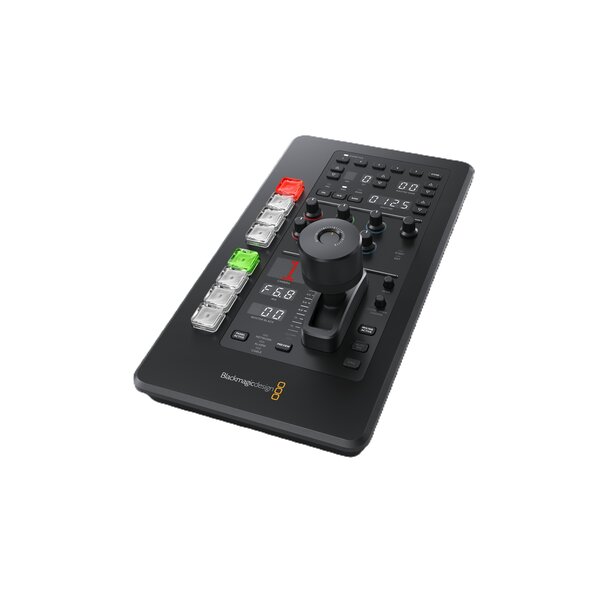

Blackmagic design ATEM Micro Camera Panel

Information

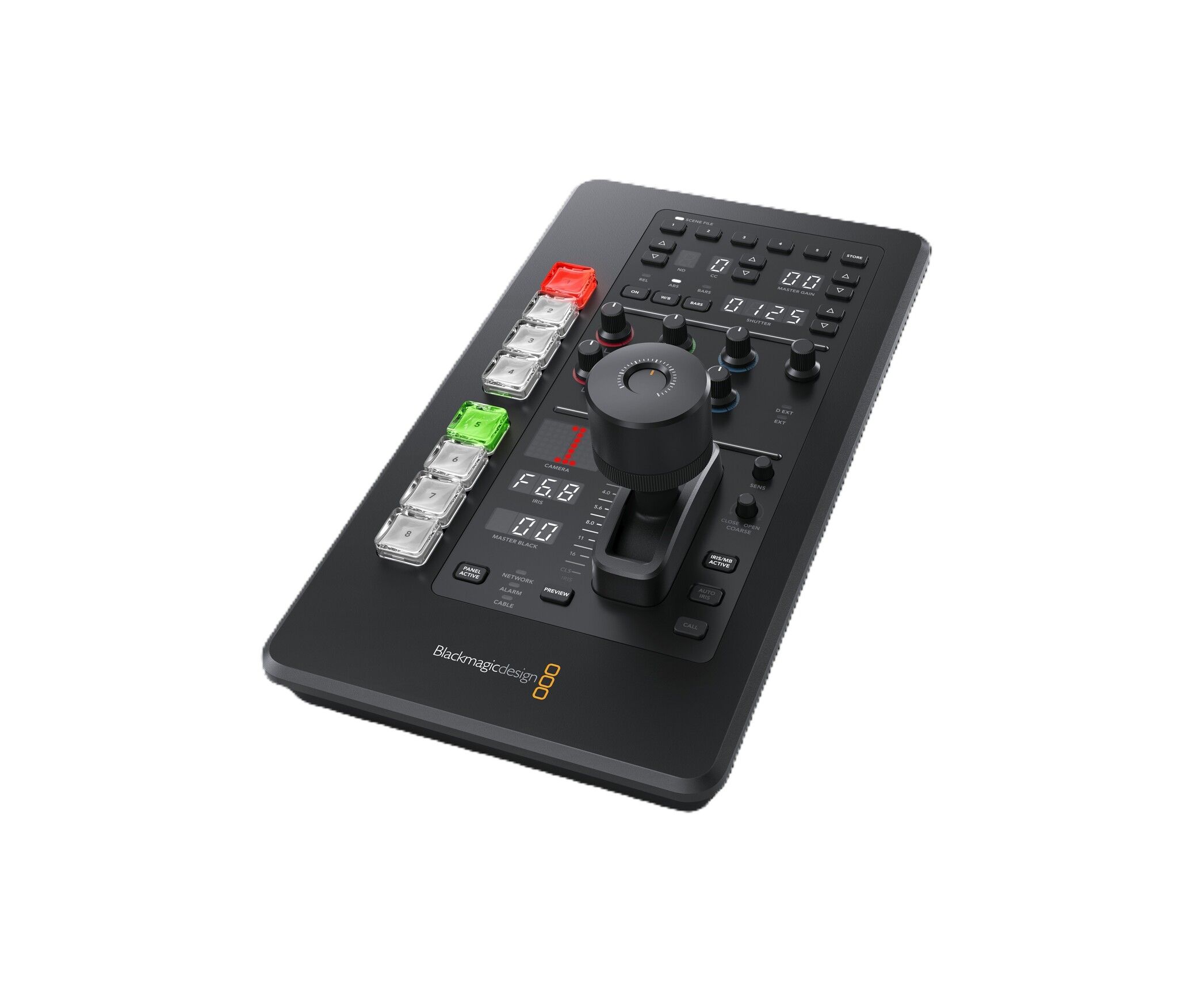

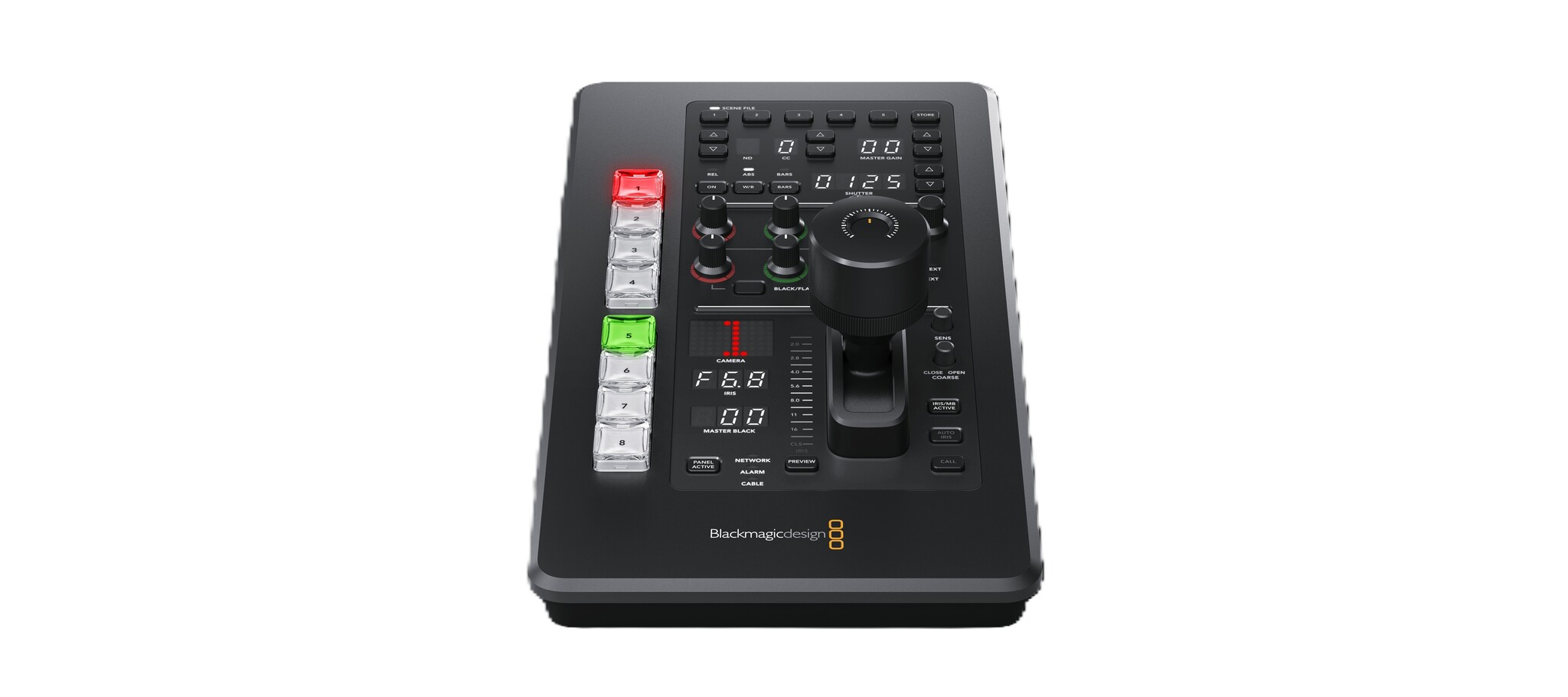

ATEM Micro Camera Panel is a portable camera panel with high end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB‑C.

Connections

Computer Interface

USB Type‑C.

Bluetooth

Bluetooth 5.1 LE

Software Updates

1 x USB‑C for firmware updates.

Product Specifics

Camera Selection buttons

8 x NKK buttons.

Assignable via setup utility.

Camera Number Display

Green off air, red on air.

Setup

White and black balance setup.

Flare via modifier key.

3 Axis Joystick

1

Preview Button

1

Iris Control

Auto Iris On, Coarse control.

Iris Range

CLS f32 to f1.2

Gain Range

-12dB to +32dB

ND Filters

0, 2, 4, 6.

Shutter Range

1/24 to 1/2000

White Balance Range

2500K to 10,000K

Recallable Scenes

5 per camera.

Panel Active

Protects settings.

Software

Software Applications

ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.

Operating Systems

Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.

Windows 10 and 11.
Windows 11 for ARM

Power Requirements

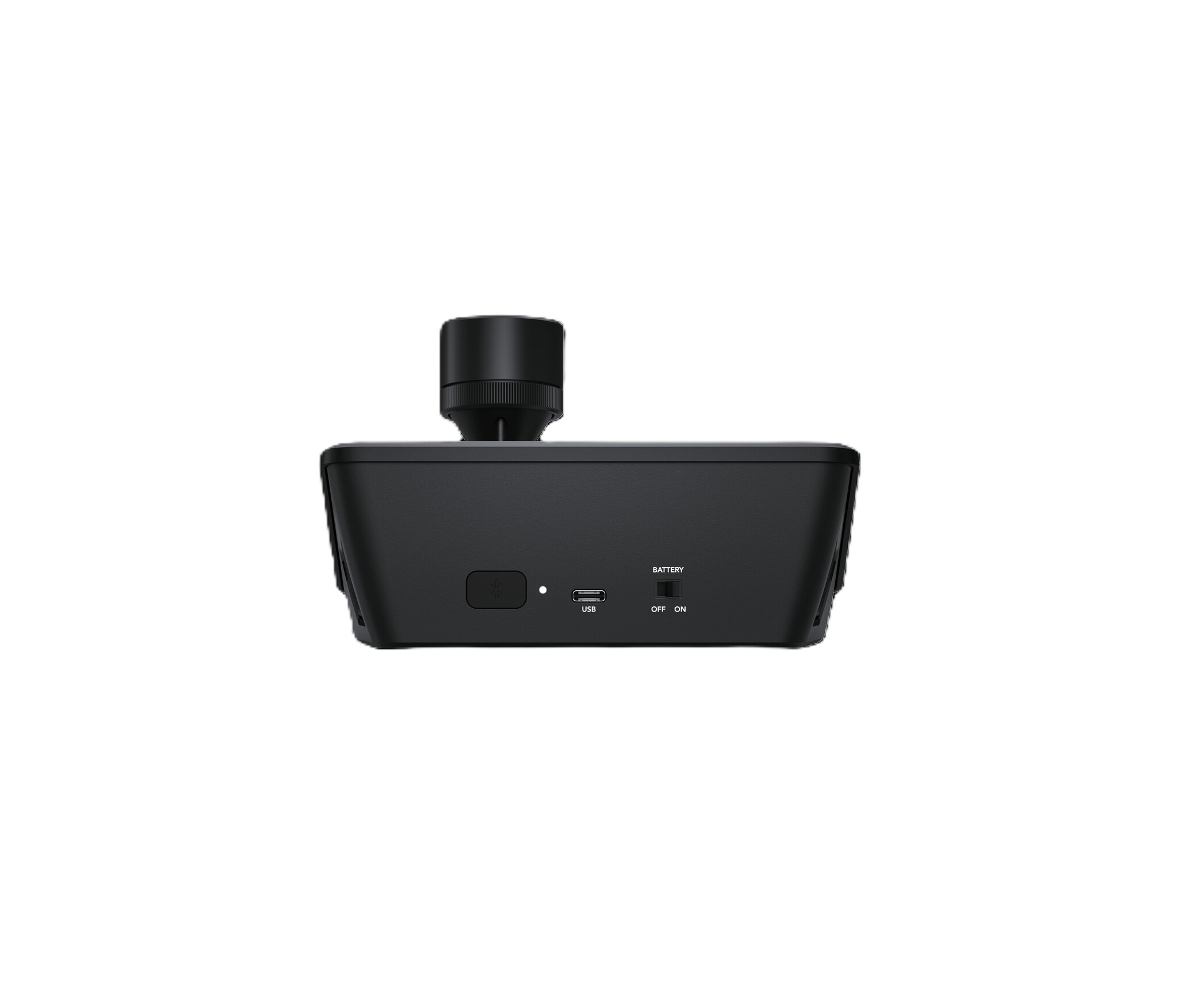

Power Supply

Internal battery with power switch.

USB-C port for external power supply and battery charging.

Power Usage

TBA

Battery Life

TBA

Physical Specifications

Environmental Specifications

Operating Temperature

5° to 40° C (41° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non‑condensing

What's Included

ATEM Micro Camera Panel

Welcome wallet with QR code for software download

1 x USB‑C cable

Warranty

1 Year Limited Manufacturer’s Warranty.
