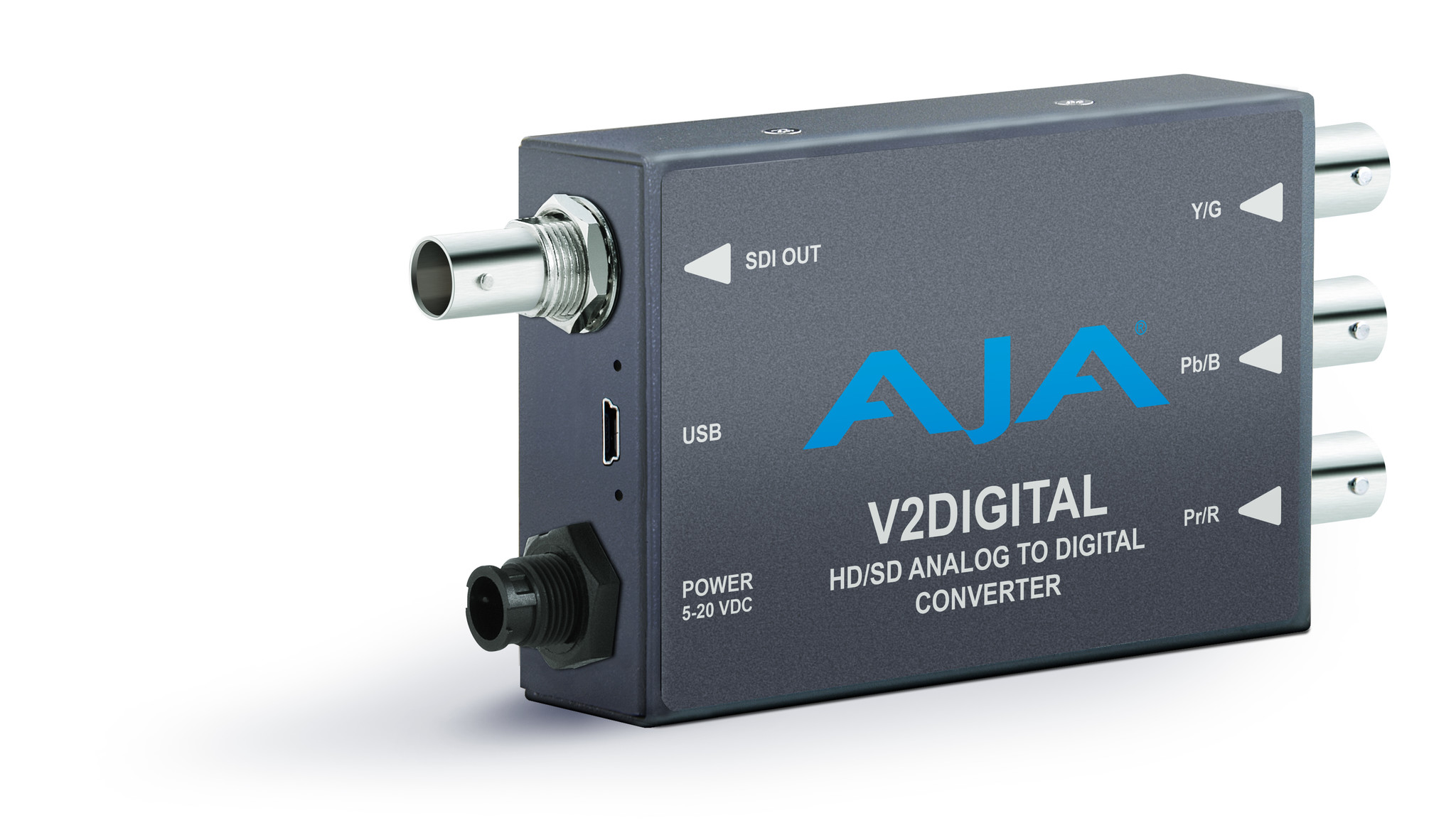

AJA V2Digital / Analog to HD/SD-SDI Mini-Converter

Information

V2Digital is a high-quality, cost-effective analog to digital video converter that's perfect for facilities needing to integrate signal types. V2Digital provides AJA's high-quality 10-bit conversion of component or composite analog video to SDI at either SD or HD resolutions utilizing a full 10-bit data path and 2x oversampling to ensure a quality conversion all at an extraordinary price. V2Digital accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB component inputs or NTSC/PAL or Y/C (S-Video) composite inputs with a 4-line Adaptive Comb Filter providing high-quality decoding of composite sources. Configuration can be set by on unit DIP switches or remotely via AJA MiniConfig software control over USB.

Note: V2Digital does NOT up-convert or down-convert between SD and HD resolutions. Only analog to digital signal conversion is supported.

Features:

• 10-bit AJA quality analog to digital conversion
• Low power, compact size
• YPbPr/RGB component or composite input
• HD/SD-SDI output
• Configure via DIP switch or USB port and supplied Mini-Config software
• Five year warranty

Extensive format support

V2Digital accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB component inputs or NTSC/PAL or Y/C (S-Video) composite inputs so no matter what signal comes your way, you"ll be ready to work with it.

Pristine image quality

V2Digital utilizes a 4-line Adaptive Comb Filter and a full 10-bit data path with 2x oversampling to provide the highest quality analog to digital conversion possible.
