Specifications
Information
Single ch. 3G/1,5G-SDI I/O PCIe 2.0 full size card

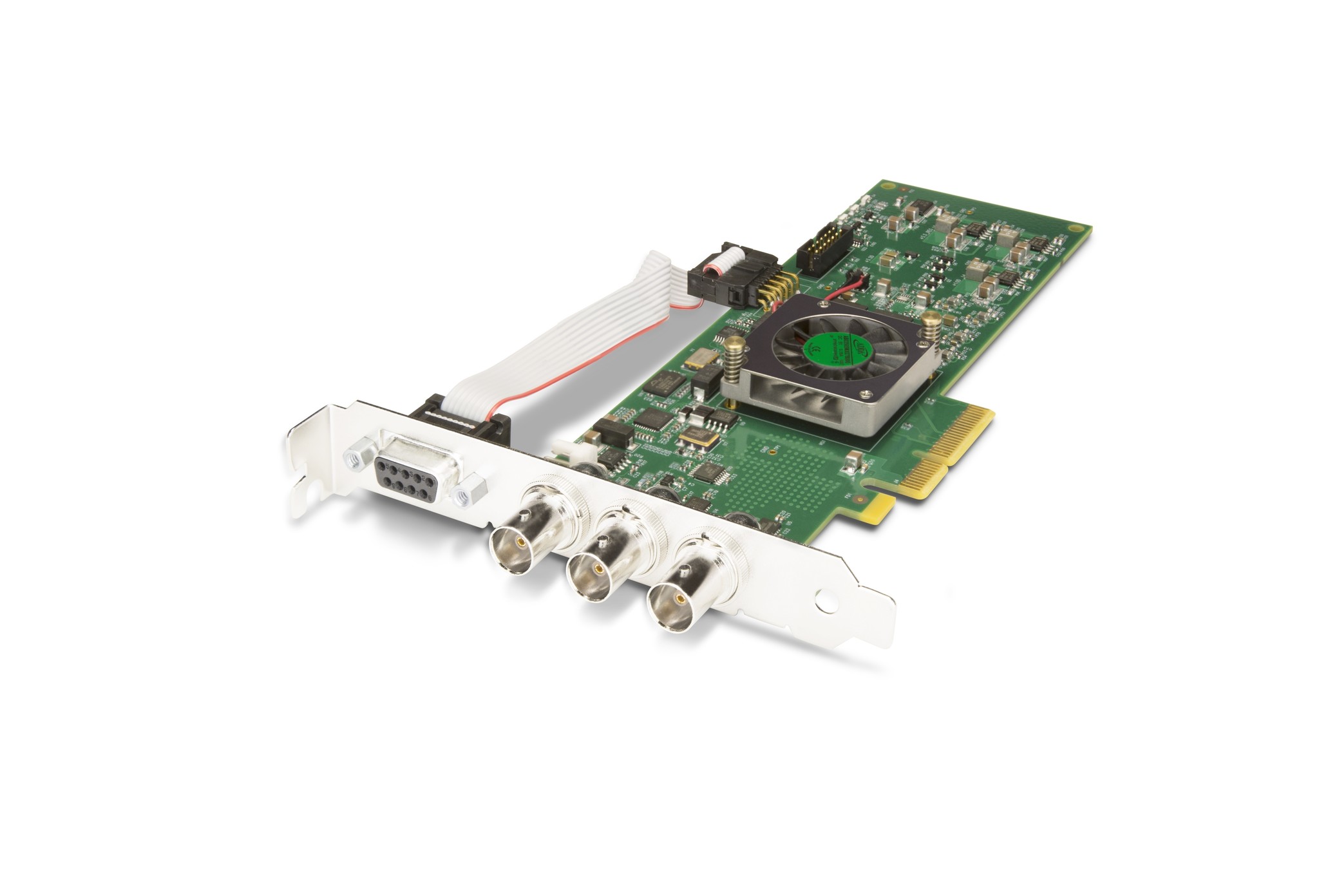

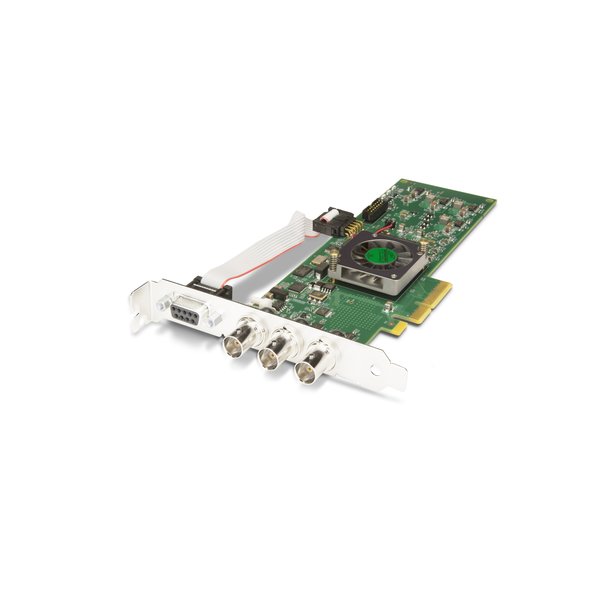

The AJA KONA 1-T is the tall, consumer version of the KONA 1 capture and playback card. It's Mac/Windows/Linux 2-lane PCIe 2.0-compatible and offers single-channel 3G-SDI 2K/HD 60p frame-accurate input/output and a selectable reference/LTC input. It also features an integrated, exposed 9-pin RS-422 control port (while the short version is designed for OEM developers and comes without this port). The KONA 1-T allows efficient capture, monitoring, and/or playback and also supports simultaneous monitoring during capture.
Supports 2K and HD ingest and output at frame rates up to 50/60p
3G-SDI and 1.5G-SDI formats supported
PCIe 2.0 form factor
16-ch embedded SDI digital audio I/O
RS-422 (for SDK developers there is also an option for low profile PCIe
with internal RS422 header, rather than external connector)
macOS, Windows and Linux support
Compatible with leading creative apps
Three year warranty
Key Features
- Single-channel 3G-SDI 2K/HD 60p capture and playback

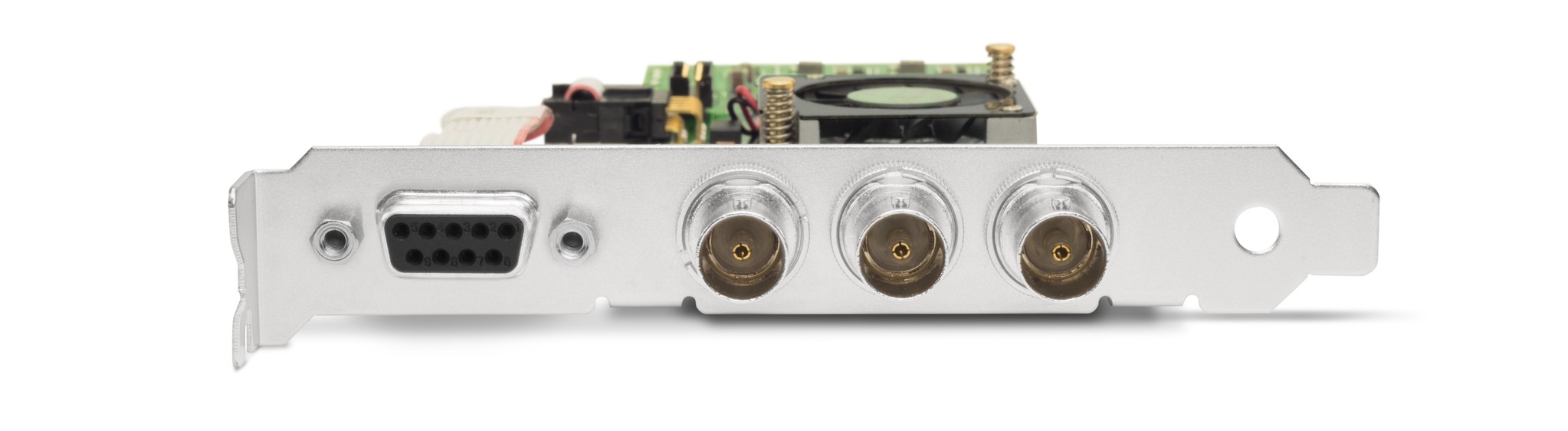

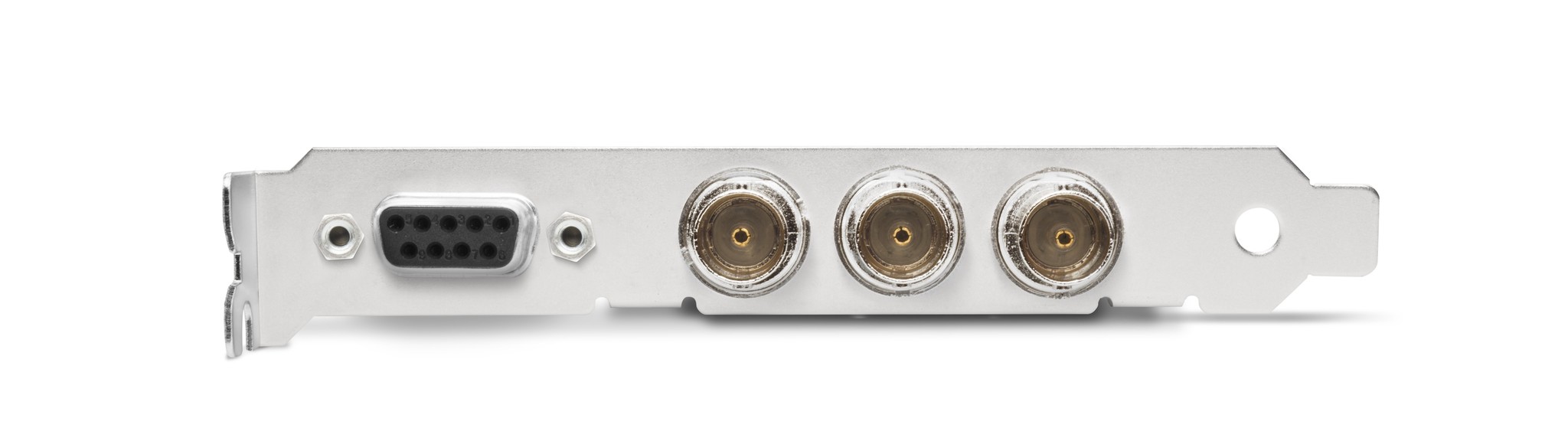

- Tall, consumer version with RS-422 9-pin connector
- Selectable HD/SD reference/LTC input
- Simultaneous monitoring during capture
- Mac/Windows/Linux 2-lane PCIe 2.0 compatible
- Full-size BNC ports
- 16-channel SDI embedded audio input/output, 24-bit 48 kHz
- ANC capture and processing
- 8-/10-bit YCbCr and RGB frame buffer formats
