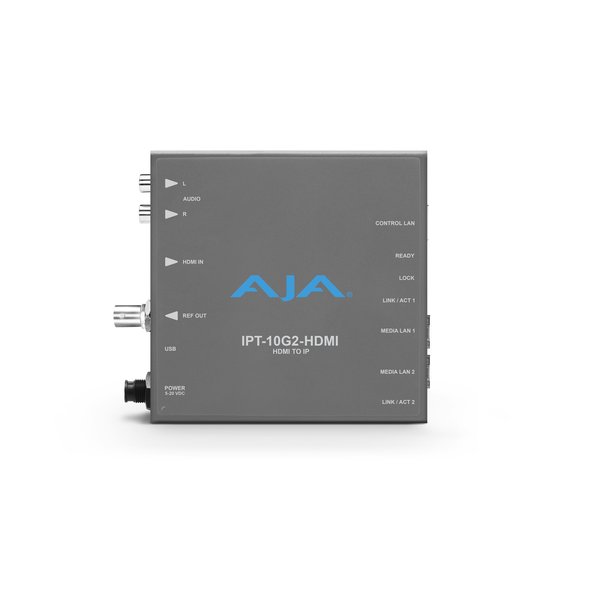

The IPT-10G2-HDMI Mini-Converter is designed to bridge HDMI HD signals to SMPTE ST 2110 networks.
IPT-10G2-HDMI receives baseband video plus eight embedded audio channels on a full-size HDMI 1.4b interface, then encapsulates the data for output as SMPTE ST 2110 over 10 GigE. Associated audio from the video stream is extracted, synchronized, and embedded into the SMPTE ST 2110 stream. Alternatively stereo audio can be fed into the stream from the dual RCA inputs.
2x 10 GigE SFP+ cages are provided, allowing “hitless switching” redundancy protection (ST 2022-7) for critical contribution and transmission environments.
Features
IPT-10G2-HDMI Mini-Converter transmits a SMPTE ST 2110 essence derived from an incoming HD HDMI input source. Providing two SFP+ cages for protection via"hitless switching" (ST 2022-7), it's rugged, quiet, fanless, design is ideal for placement in a wide range of scenarios, including on set, and in studios.
Key features:
- SMPTE ST 2110 audio, video transmitter
- Rugged, quiet, fanless design
- 1x full size (standard type A) HDMI 1.4b (24/30-bits per pixel) input up to 1080 60p, 4:2:2, 10-bit, YCbCr
- Full 10-bit pixel processing pipeline
- Embedded HDMI audio input (up to eight channels)
- 2x RCA analog audio input
- 2x 10 GigE SFP+ cages for media LAN (providing support for ST 2022-7 "Hitless Switching") with status light
- 1x 1 GigE RJ-45 socket for control LAN with status light
- Web browser accessible setup and control interface via built-in web server
- 1x mini-USB port providing an alternate method of initial network configuration with AJA eMini-Setup software
- Customizable control with AJA REST API
-
Five year warranty
