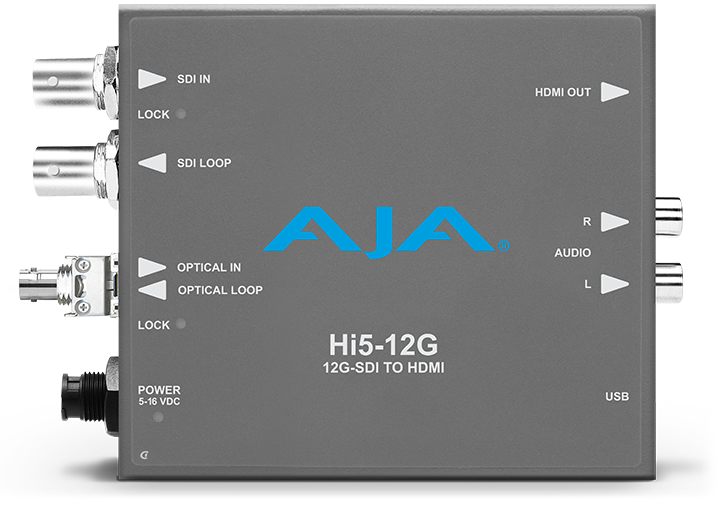

AJA’s Hi5-12G-R-ST preserves your vision with pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion needs with single cable simplicity. The Hi5-12G-R-ST can also generate HDR10 metadata in accordance with HDMI v2.0a/CTA-861.3 and supports HLG over HDMI. Hi5-12G-R-ST provides a simple monitoring connection from professional 4K devices using 12G-SDI over coaxial or Fiber ST outputs to new displays with HDMI 2.0 inputs, for cost effective monitoring in professional workflows.
It features a 12G-SDI single-link input with a re-clocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines and an included Fiber ST single channel SFP receiver for extending 4K signals over long distances.
A base Hi5-12G model with no Fiber SFP module and the Hi5-12G-R with a single channel LC SFP Receiver module are also available.
12G-SDI to HDMI 2.0 Conversion with ST Fiber Receiver
- Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
- Supports 12-bit workflows
- Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
- Provides a monitoring connection from professional 4K devices using 12G-SDI over coaxial or Fiber ST outputs to new displays with HDMI 2.0 inputs, for cost effective monitoring
- 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines
- Ships with a Fiber ST single channel SFP receiver for extending 4K signals over long distances
- Uses 5-16 VDC power (DWP-U-R1 universal power supply included)
- USB port used with Mini-Config software application to configure the device via PC/Mac
- Five year warranty
