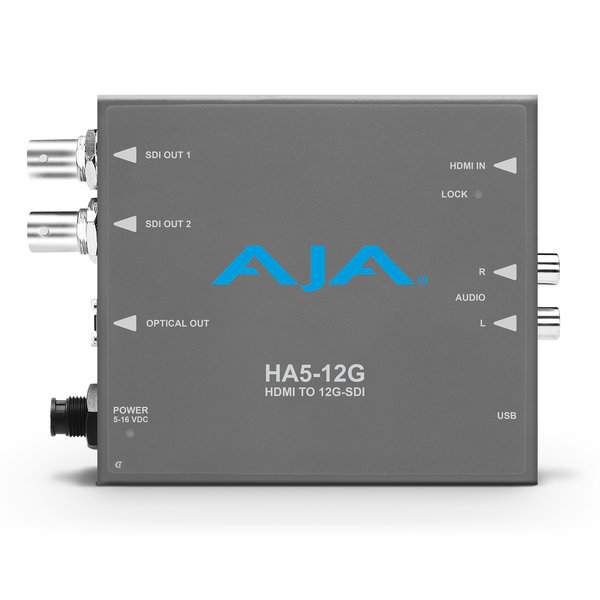

AJA Ha5-12G HDMI 2.0 to 12G-SDI Conversion

€1.236,02 Incl. tax€1.021,50 Excl. tax Out of stock, check delivery time

Create a login. We check your details and give you access to your personal discount levels. Crosspoint is happy to give you personal advice based on more than 25 years of experience. View other converters in our webshop. Read more

ECO friendly webshop
Personal advice
25 years of experience
Over 4.000 products
Secure payment
Register and discover your discounts

Specifications

Brand:

AJA

Availability:

Out of stock, check delivery time

Delivery time:

2 - 3 weeks

Information

AJA’s HA5-12G converts an HDMI 2.0 input to 12G-SDI for 4K/UltraHD single link outputs. HA5-12G includes two 12G-SDI distribution amplifier outputs with eight or two channels of embedded audio from an HDMI source or two-channel analog audio (RCA) input.

HA5-12G also supports Extended Display Identification Data (EDID) emulation which ensures the connected source continuously supplies custom preferred video formats on output.

Features

HA5-12G Features:

Convert HDMI 2.0b up to 4K/UltraHD 60p to 12G-SDI with a second mirrored output
Supports up to 60p input at 4:4:4/4:2:2/4:2:0
HDMI EDID Emulation
Two Sample Interleave (2SI) 4K/UltraHD source mapping
Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
HDR Infoframe decoder as defined in CTA-861-G and HDMI v2.0b
Embedded audio can be selected from the HDMI or Analog audio inputs
The Lock LED adjacent to the HDMI input connector indicates by color the detected signal type. Off is no signal, Green is SD-SDI, Red is HD-SDI, Amber is 3G-SDI, Purple is 6G-SDI, and Blue is 12G-SDI.
Configure via USB port and supplied AJA Mini-Config software
DWP-U-R1 universal power supply included
Covered by five-year warranty and AJA’s advanced replacement policy
