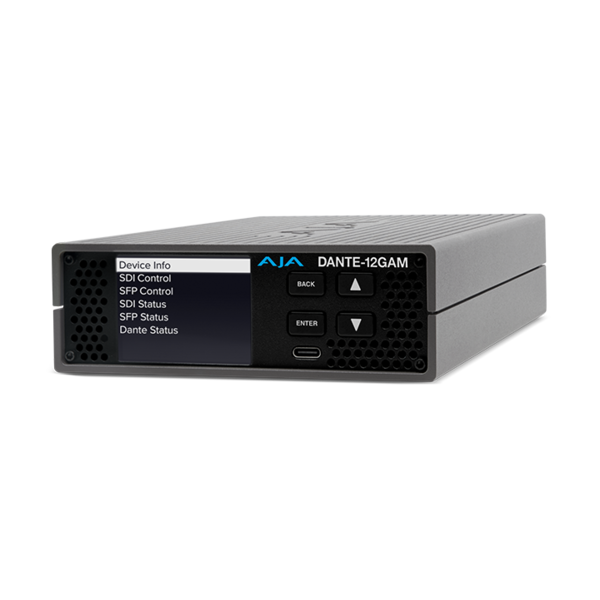

AJA DANTE-12GAM-LC, 2x 12G 64-Ch SDI Audio Embedder/Disembedder with LC Fiber SFP

Information

The DANTE-12GAM is a high performance Audio over IP (AoIP) Converter, embedding and disembedding SDI audio to a Dante network and back to SDI from Dante audio. Equipped with 12G-SDI input and output and dual etherCON GigE ports, the DANTE-12GAM is capable of simultaneously embedding and disembedding up to 16 channels of audio in and out for a total of 32 audio channels in a compact device.

The DANTE-12GAM is your portal to a vast array of IP audio solutions. Dante networks not only support the Dante audio streams but also support AES67 and SMPTE ST 2110-30 AoIP, providing massive flexibility for all your IP audio needs.

DANTE-12GAM is available with a single channel 12G-SDI input and output, or as two dual channel options: DANTE-12GAM-TR-LC (with LC Fiber SFP) or DANTE-12GAM-TR-BNC (with BNC SFP), which support a total of up to 64 channels of Dante audio in a compact Mini-Converter form factor. The single channel can be upgraded to the dual channel version at any time via an optional license and the addition of either the BNC or LC Fiber SFP.

DANTE-12GAM Overview Video

DANTE-12GAM bridges the gap between SDI and IP audio ecosystems. Watch this video to learn about DANTE-12GAM's numerous benefits and advantages for seamlessly integrating Dante, AES-67, and SMPTE IP audio with professional SDI infrastructure and workflows.

Dante: The Audio Networking Standard for the Pro AV Industry and Beyond

Dante audio is the primary choice for ProAV system integrators and a growing number of broadcasters. It is widely adopted by over 600 manufacturers offering 4000+ Dante device types. Dante IP audio networking provides digital audio distribution over local and wide area networking with very low latency (<1 ms), using standard network hardware or connecting into a standard network infrastructure. This offers many advantages, including audio system scalability, ease of installation, and maintenance.

Dante allows uncompressed, multi-channel, low-latency, high-resolution digital audio to be distributed across a switched Ethernet network using standard TCP/IP protocols while meeting stringent quality and timing requirements of professional audio. For your peace of mind, Dante audio supports a redundant network topology with dual networks via a primary and secondary 1 GigE port on most Dante devices.

Connectivity

The DANTE-12GAM converter offers the power and flexibility of professional connectivity to plug and play into your existing SDI and Dante audio infrastructures.

SFP Options

The DANTE-12GAM-TR-LC includes the Fiber FIBERLC-TR-12G SFP, doubling the Dante conversion capacity, up to 64 channels.

Both SFP types can be swapped easily with the DANTE-12GAM to match the desired workflow. Customers can also upgrade to the dual channel version at any time by purchasing an optional license and adding either the BNC or LC Fiber SFP.

Dante and AES67

In addition to Dante IP audio, the DANTE-12GAM also supports AES67, which is an open standard for IP audio developed by the Audio Engineering Society (AES). Dante and AES67 work together by leveraging AES67's interoperability to allow Dante devices to communicate with other AES67-compliant systems, enhancing the flexibility and integration capabilities of audio networks, greatly expanding the Dante audio ecosystem. This means you can integrate Dante systems with other IP audio systems that use AES67, such as RAVENNA, Livewire, and Q-LAN. To enable AES67 on Dante devices, you need to activate AES67 in Dante Controller software, which allows the Dante network to transmit and receive AES67 streams.

Dante and SMPTE ST 2110-30

SMPTE ST 2110-30 is the SMPTE standard for transporting uncompressed audio over IP networks. The DANTE-12GAM also supports SMPTE ST 2110-30 IP audio, which is a component of the broader SMPTE ST 2110 IP AV suite. The SMPTE ST 2110 standard includes video, audio, ancillary data, and more, transporting the highest quality video and audio IP data streams over robust IP networks, typically in broadcast environments. The DANTE-12GAM can interoperate with other ST 2110-30 compliant devices via the Dante Controller software. The Dante audio network and the DANTE-12GAM both support Precision Time Protocol version 2 (PTPv2), ensuring synchronization across Dante and SMPTE ST 2110 networks. With its support of SMPTE ST 2110-30, the DANTE-12GAM is a powerful bridge between Dante and SMPTE networks in professional audio and broadcast applications.

Advanced Enclosure

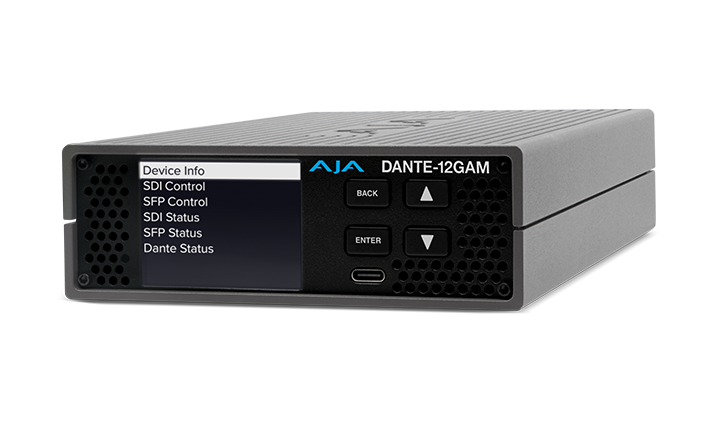

The DANTE-12GAM utilizes a rugged new aluminum enclosure, offering a front panel display, physical push-button controls, USB-C connectivity for initial Static IP configuration, and active cooling designed with front-to-back airflow. The onboard display reports status and configuration and is paired with buttons for enter, back, up, and down for easy access to settings for standalone operation.

AJA Web UI

The DANTE-12GAM can also be monitored and controlled by a user friendly web UI served by its integrated web server. The web UI shows the system status and connections to the Dante audio network. It can be used to configure network settings and update firmware. Applicable controls and status information are mirrored on the LCD front display on the device.
