Magewell Modator Pro Convert for NDI to HDMI

Informatie

Converts a live NDI stream into HD HDMI signal.

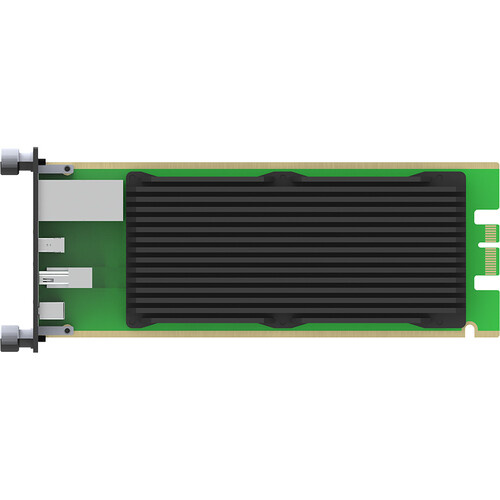

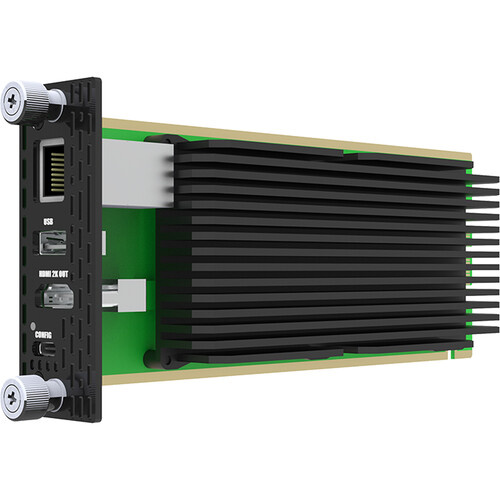

• A hot-swappable module to be installed in Magewell Modator chassis
• Decodes high-bandwidth NDI and NDI HX including earlier variants into HD HDMI
• Centrally manageable via the Modator chassis and Magewell Control Hub

Interface

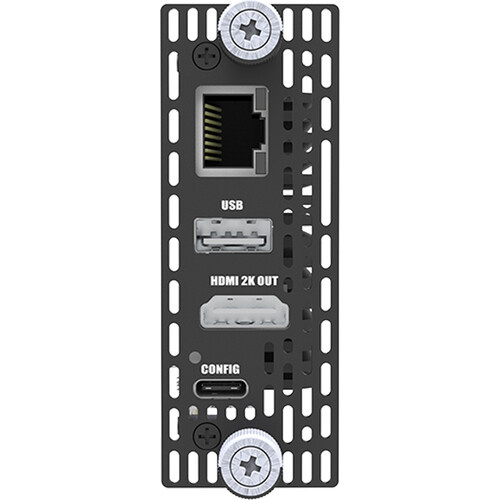

Interfaces

• 1* RJ45 1000Mbps Ethernet port
• 1* USB Type-C port for configuration
• 1* USB Type-A 3.0 port for connecting peripherals
• 1* HDMI 2.0 output port
• 1* Modator interface for connecting to Modator 2U (hot-swappable)

Decoding Features

• Decode up to 2Kp60 streams of NDI High Bandwidth , NDI^® |HX, NDI^® |HX2, NDI^® |HX3, RTSP, HTTP, HLS, RTMP Pull/Push, MPEG-TS over UDP/SRT/RTP, TVU protocols
• Decode H.264/H.265 video
• Decode AAC/MP3 audio
• Supports NDI^® 5.x

Output Features

• Max. output: 4096x2160 60fps 4:4:4 8-bit
• Deliver video at the preferred video format according to the EDID of the connected monitor. Supported output formats include:
• 4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/59.94/60
• 2560x1440p 60/100
• 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
• 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
• 1920x1080i 50/59.94/60
• 1280x720p 23.98/24/25/29.97/30/50/59.94/60
• 720x576p50
• 720x576i50
• 720x480p59.94/60
• 720x480i59.94/60
• Supports RGB, YUV444, and YUV422 signals
• Supports 48KHz 8-channel audio output

Web UI

• Register with Magewell Control Hub for remote centralized management
• Supports configuring and managing via Web UI
• Provides comprehensive information regarding the device and decoded signals in real-time
• Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
• Supports updating firmware
• Supports USB RNDIS/ECM
• Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
• Provides HTTP APIs

LED Indicators

• Decode status indicator
• On: decoding
• Blinks: decoding error
• Off: source unselected

Physical Specifications

• Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H)
• Weight: ?290g

Power Consumption

• Max power consumption: 4.3W

Working Environment

• Operating temperature: 0 to 50 deg C
• Storage temperature: - 20 to 70 deg C
• Relative humidity: 5% to 90% non-condensing
