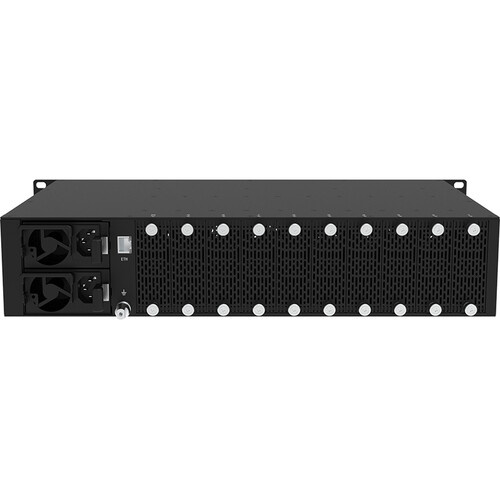

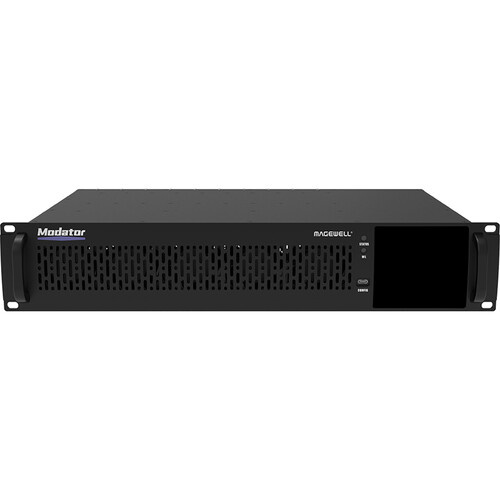

Magewell Modator Chassis 2U

Informatie

Delivers the robust capabilities of Magewell's IP encoders and decoders in a scalable, high-density form factor.

• Each installed encoding or decoding module independently provides high-quality conversion
• Dual power supplies and optimized heat dissipation for 24/7 operation
• LED touch screen provides status monitoring of the chassis and modules

Interfaces

• 10* Modator slots supporting hot swap of Magewell modules
• 1* RJ45 1000Mbps Ethernet port for configuration
• 1* USB Type-C port for configuration

Power and Power Consumption

• Hot-swappable dual power supply modules for safety and redundancy
• AC: 100 - 240V, 7 - 3.5A, 60/50Hz
• Maximum power consumption of the chassis: 200W
• Maximum power consumption of each slot: 20W
• Standby power consumption: 11W (Touchscreen off), 11.9W (Touchscreen on)
• No-load power consumption: 17W (Touchscreen off), 17.9W (Touchscreen on)

Status Indication

• Status indicator:
• Blue: Working
• Off: Standby
• Warning light:
• Red: Error
• Off: Normal
• Power indicator:
• Green: Output on and OK
• Flashing Green: Standby or Cold Redundancy
• Red: Error or fault
• Buzzer:
• Beeping: Error
• Off: Normal

Touchscreen

• Dimension: 91mm x 81mm

Control

Touchscreen

• Power on/off the device
• Display the device information
• Display information about the connection state of each slot and information of inserted modules
• Display and edit Ethernet information
• Display logs to trace important events
• Display notifications of errors

Web UI

• Provides comprehensive information regarding the device
• Provides basic information and working status regarding connected modules
• Supports managing and configuring the device, such as changing device name, enabling beeper, updating firmware, setting network, etc.
• Supports IE/Edge/Firefox/Chrome/Safari/Opera web browsers
• Provides HTTP APIs

Physical Specifications

• Form factor: 482mm (L) x 275mm (W) x 88 mm (H)
• Weight: ?5.6kg (with 10 blank panels)

Working Environment

• Operating temperature: 0 to 50 deg C
• Storage temperature: - 20 to 70 deg C
• Relative humidity: 5% to 90% non-condensing
