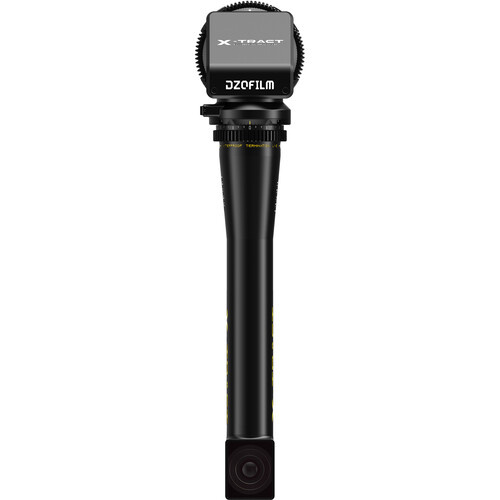

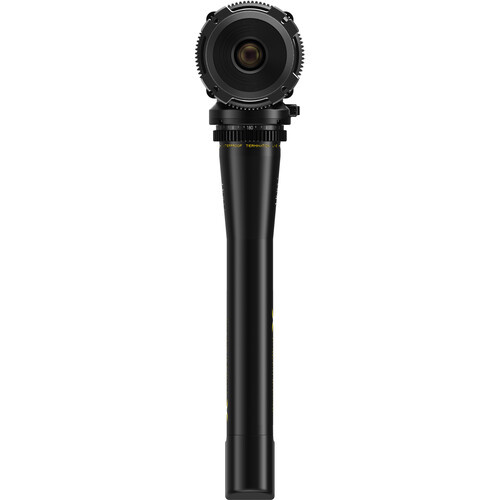

DZOFILM X-Tract 18-28mm T8 Probe Zoom Macro Lens PL Mount (360°)

Informatie

Offering a 100 to 73° field of view, the ARRI PL-mount, 360°X-Tract 18-28mm T8 FF Probe Zoom Lens from DZOFilm brings innovative close-up capture to your production. This compact probe is just 16.3" long and has a front diameter of <1.2", making it ideal for tight setups. It features 2.1:1 magnification and a 0.24" close focus.

Wide 18-28mm Zoom

• This 18-28mm zoom offers an ultrawide to more midrange reach, covering most common focal lengths.
• The wide 100 to 73° field of view supports flexible capture.

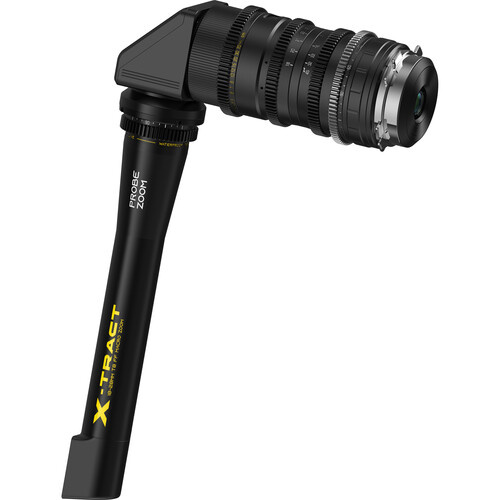

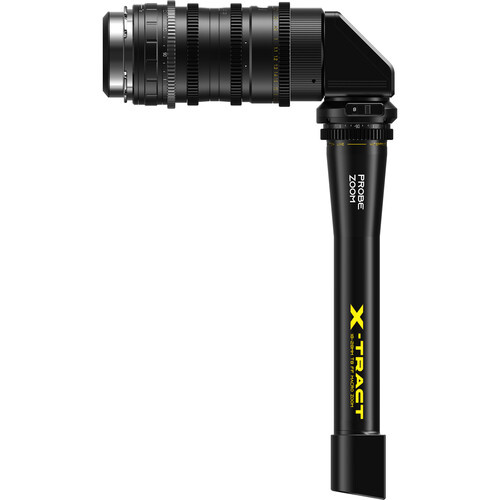

Rotating 360° View

• This 360° probe features a periscope design that provides creative positioning.
• A rotating ring enables even greater flexibility.
• 0° direct view and 90° right-angle lens versions are available separately.

Close Capture in Narrow Spaces

• Craft creative shots using a maximum magnification ratio of 2.1:1.
• The extremely close minimum focusing distance of around 0.24" lets you get super tight coverage of your subject.
• The large depth of field and wide-angle focal length combine to enable close-ups in constricted areas while maintaining a safe distance from your subject.

Low-Distortion, High-Resolution Optics

• The optical design has both ED (extra-low dispersion) and high-refractive index elements, suppressing chromatic and spherical aberrations.
• Advanced coatings help minimize flaring and reflections.
• Incorporates seven HRI (high-refractive-index) lens elements, producing more natural color.
• ±2% distortion control across the zoom range.

T8 Maximum Aperture

• The relatively fast T8 maximum aperture is maintained throughout the zoom range.
• Multilayer, antireflective coatings help ensure sharp, clear images even when shooting wide open.

Waterproof, Cine-Style Design

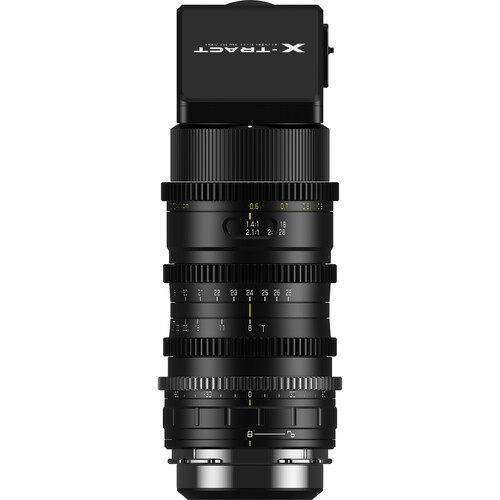

• Focus, iris, and zoom functions all have 0.8 MOD cine-style gears for compatibility with follow focus and lens motor systems.
• A lightweight yet rear-heavy design helps reduce vibrations while shooting.
• The focus barrel offers a wide 300° rotation for precise focus pulls.
• Waterproof and dustproof, this probe lens is also scratch and fog resistant.

Specs
