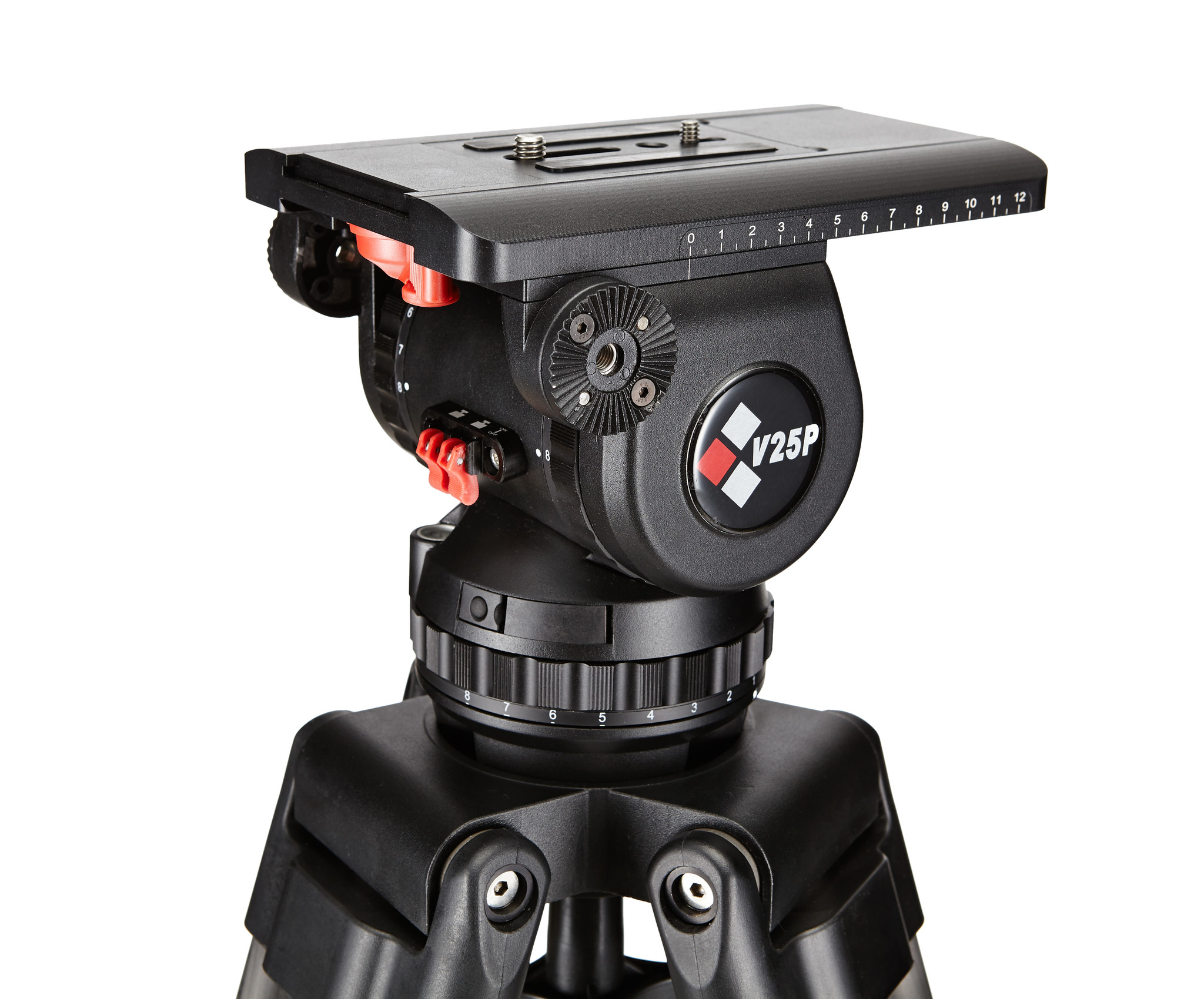

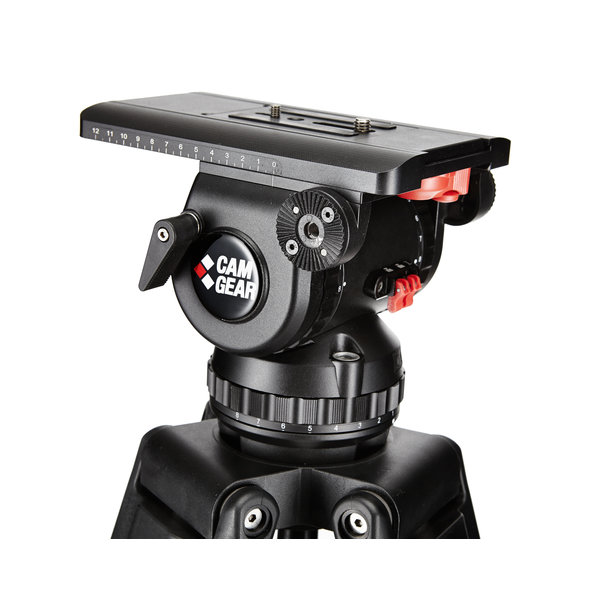

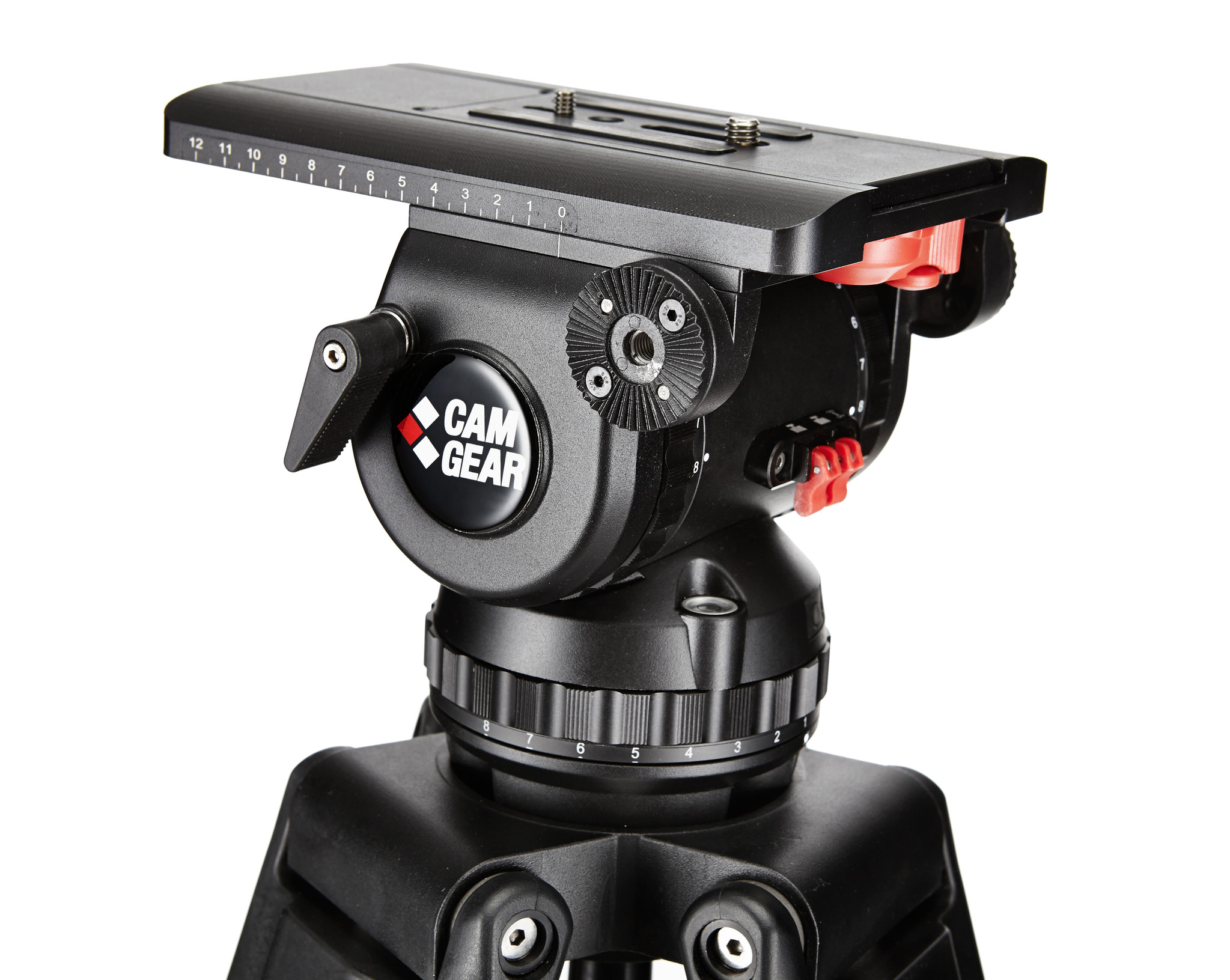

Camgear V25P EFP Fluid Head (100mm Bowl)

Informatie

incl. Wedge Plate WP-4,Bowl Clamp BC-2 & 2x Telescopic Pan Bar PB-2 (Left & Right)

• Selectable 8 steps pan & tilt drag including zero position offer operators silky smooth movement and precise motion tracking.
• Selectable 10 position counterbalance, thanks to newly added lever adjusting position, it can support the lightweight ENG camera and offer more fine adjustment for the cameras to reach the perfect balance.
• Perfect solution for EFP and field-based HD production and studio application. It supports most portable broadcast cameras and camcorders in heavy configuration and studio applications with teleprompter or compact studio lens.
• Quick-release mini Euro plate enables faster set-up of camera.

Specifications:

• Maximum Payload 32 kg/70.5 lbs
• Counterbalance Range 0-29 kg/0-63.9 lbs (at C.O.G 125 mm)
• Camera Platform Type Mini Euro plate (Camgear WP-4)
• Sliding Range 120 mm/4.72 in
• Camera Plate 1/4”, 3/8” screw

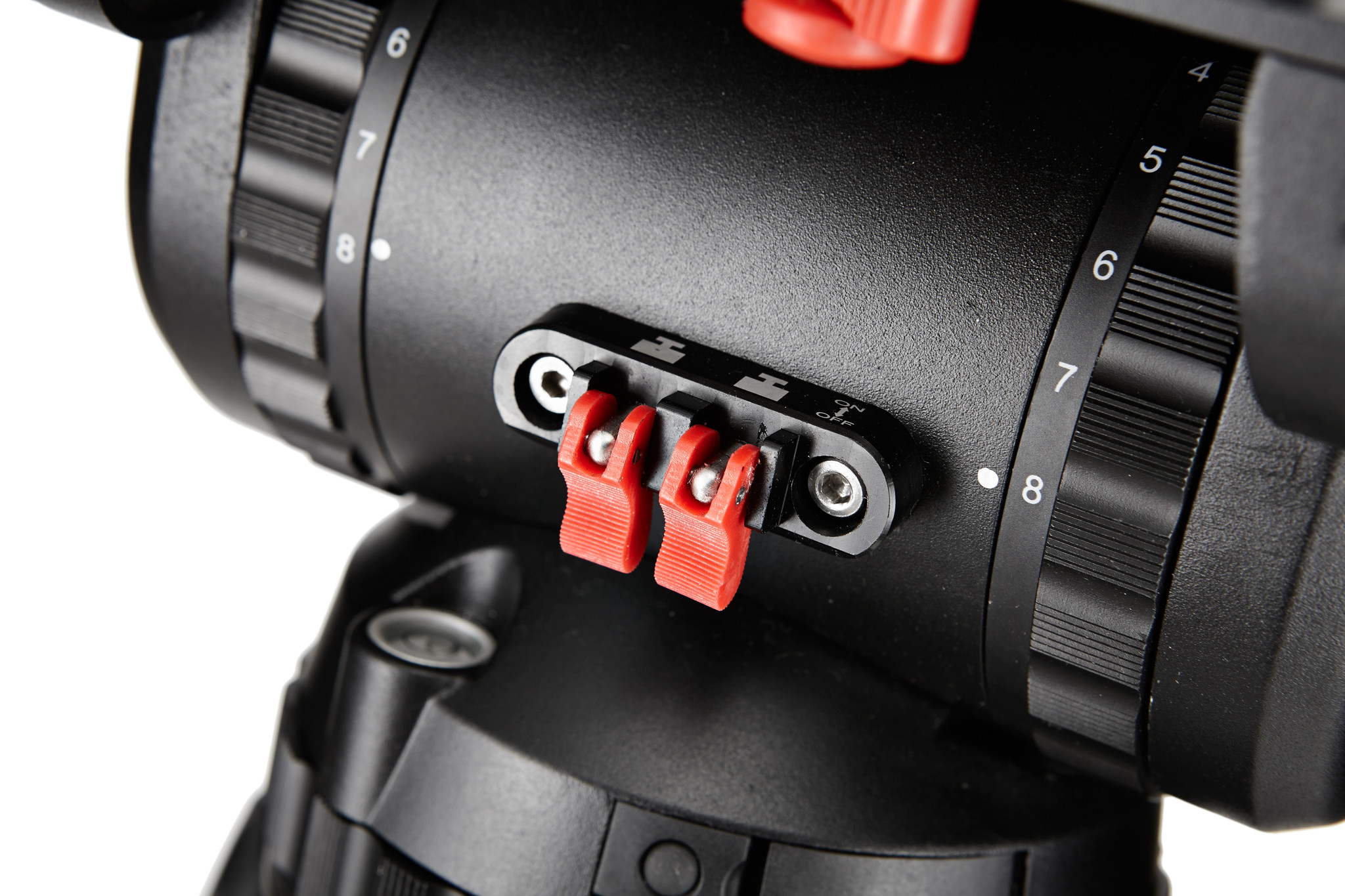

• Counterbalance System 10 steps (1-8 & 2 Adjusting levers)
• Pan & Tilt Drag 8 steps (1-8)
• Pan & Tilt Range Pan: 360° / Tilt: +90/-75°
• Temperature Range -40°C to +60°C / -40 to +140°F
• Levelling Bubble Illuminated Levelling Bubble
• Weight 5.6 kg/12.3 lbs
• Bowl Diameter 100 mm
